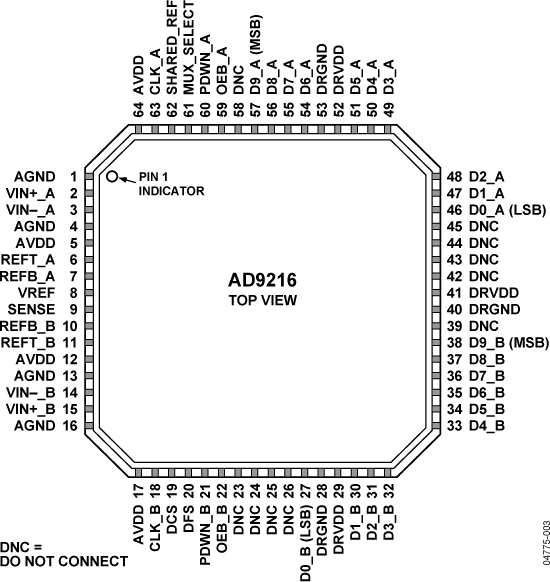

AD9216 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

2-CHANNEL DUAL ADC PIPELINED 80MSPS 10-BIT PARALLEL 64-PIN LFCSP EP T/R

Part	Data Interface	Ratio - ADC	Ratio - S/H	Operating Temperature (Min)	Operating Temperature (Max)	Reference Type	Number of A/D Converters	Package Length	Package Name	Package Width	Number of Bits	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Sampling Rate (Per Second)	Architecture	Mounting Type	Number of Inputs	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Configuration	Features	Input Type	Package / Case
Analog Devices Inc./Maxim Integrated AD9216BCPZRL7-80	Parallel	1	1	-40 °C	85 °C	External Internal	2 count	9 mm	64-LFCSP-VQ	9 mm	10 bits	3.3 V	2.25 V	80 MHz	Pipelined	Surface Mount	2	3.3 V	2.7 V	S/H-ADC	Simultaneous Sampling	Differential Single Ended	64-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9216BCPZRL7-65	Parallel	1	1	-40 °C	85 °C	External Internal	2 count	9 mm	64-LFCSP-VQ	9 mm	10 bits	3.3 V	2.25 V	65 MHz	Pipelined	Surface Mount	2	3.3 V	2.7 V	S/H-ADC	Simultaneous Sampling	Differential Single Ended	64-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9216BCPZ-80	Parallel	1	1	-40 °C	85 °C	External Internal	2 count	9 mm	64-LFCSP-VQ	9 mm	10 bits	3.3 V	2.25 V	80 MHz	Pipelined	Surface Mount	2	3.3 V	2.7 V	S/H-ADC	Simultaneous Sampling	Differential Single Ended	64-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9216BCPZ-105	Parallel	1	1	-40 °C	85 °C	External Internal	2 count	9 mm	64-LFCSP-VQ	9 mm	10 bits	3.3 V	2.25 V	105 MHz	Pipelined	Surface Mount	2	3.3 V	2.7 V	S/H-ADC	Simultaneous Sampling	Differential Single Ended	64-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9216BCPZ-65	Parallel	1	1	-40 °C	85 °C	External Internal	2 count	9 mm	64-LFCSP-VQ	9 mm	10 bits	3.3 V	2.25 V	65 MHz	Pipelined	Surface Mount	2	3.3 V	2.7 V	S/H-ADC	Simultaneous Sampling	Differential Single Ended	64-VFQFN Exposed Pad CSP
