Q-0804W0 Series

Catalog

CBL ASSY BNC-TNC JACK-PLG 19.69"

Part	2nd Connector Mounting Type	Frequency - Max	Cable Type	2nd Connector	Color	Overall Impedance	1st Connector	Length	1st Connector Mounting Type	2nd Contact Gender	1st Connector Mounting Feature	Features	Style	1st Contact Gender	Length (ft)

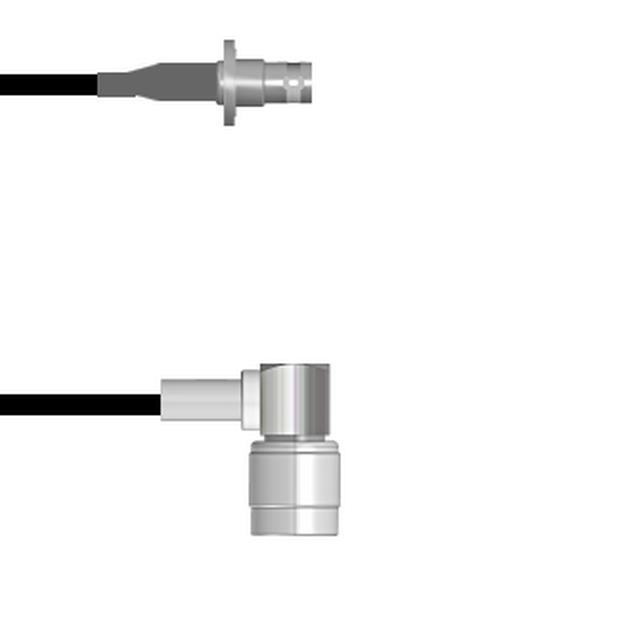

McGill Microwave Systems Q-0804W00080.5M	Free Hanging (In-Line)	4 GHz	58 RG	Right Angle TNC Plug	Black	50 Ohms	BNC Jack	19.69 in	Panel Mount	Male	Bulkhead Front Side Nut	Shielded	BNC TNC	Female
McGill Microwave Systems Q-0804W0008018i	Free Hanging (In-Line)	4 GHz	58 RG	Right Angle TNC Plug	Black	50 Ohms	BNC Jack	18 in	Panel Mount	Male	Bulkhead Front Side Nut	Shielded	BNC TNC	Female
McGill Microwave Systems Q-0804W0008036i	Free Hanging (In-Line)	4 GHz	58 RG	Right Angle TNC Plug	Black	50 Ohms	BNC Jack	36 in	Panel Mount	Male	Bulkhead Front Side Nut	Shielded	BNC TNC	Female
McGill Microwave Systems Q-0804W0008048i	Free Hanging (In-Line)	4 GHz	58 RG	Right Angle TNC Plug	Black	50 Ohms	BNC Jack	48 in	Panel Mount	Male	Bulkhead Front Side Nut	Shielded	BNC TNC	Female
McGill Microwave Systems Q-0804W0008060i	Free Hanging (In-Line)	4 GHz	58 RG	Right Angle TNC Plug	Black	50 Ohms	BNC Jack	1524 mm	Panel Mount	Male	Bulkhead Front Side Nut	Shielded	BNC TNC	Female	5 ft
McGill Microwave Systems Q-0804W0008009i	Free Hanging (In-Line)	4 GHz	58 RG	Right Angle TNC Plug	Black	50 Ohms	BNC Jack	228.6 mm	Panel Mount	Male	Bulkhead Front Side Nut	Shielded	BNC TNC	Female
McGill Microwave Systems Q-0804W0008001M	Free Hanging (In-Line)	4 GHz	58 RG	Right Angle TNC Plug	Black	50 Ohms	BNC Jack	39.4 in	Panel Mount	Male	Bulkhead Front Side Nut	Shielded	BNC TNC	Female
McGill Microwave Systems Q-0804W0008.75M	Free Hanging (In-Line)	4 GHz	58 RG	Right Angle TNC Plug	Black	50 Ohms	BNC Jack	29.53 in	Panel Mount	Male	Bulkhead Front Side Nut	Shielded	BNC TNC	Female
McGill Microwave Systems Q-0804W0008002M	Free Hanging (In-Line)	4 GHz	58 RG	Right Angle TNC Plug	Black	50 Ohms	BNC Jack		Panel Mount	Male	Bulkhead Front Side Nut	Shielded	BNC TNC	Female	6.6 ft
McGill Microwave Systems Q-0804W0008024i	Free Hanging (In-Line)	4 GHz	58 RG	Right Angle TNC Plug	Black	50 Ohms	BNC Jack	24 in	Panel Mount	Male	Bulkhead Front Side Nut	Shielded	BNC TNC	Female
