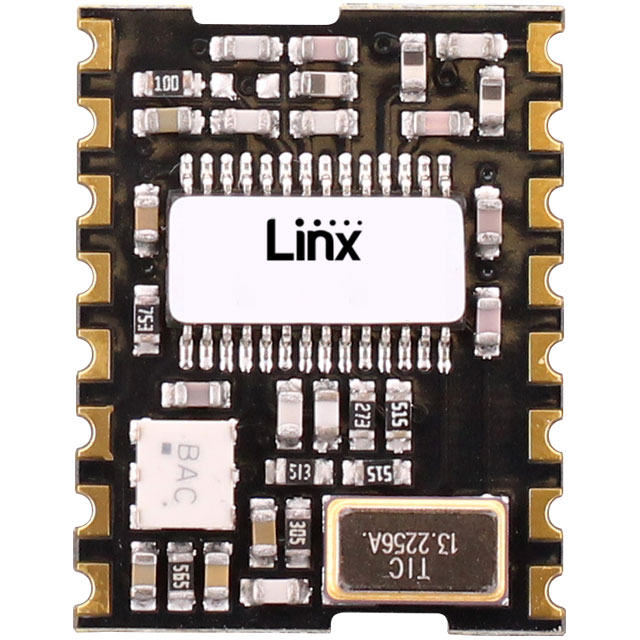

RXM-433 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
MODULE LR 433MHZ AM OOK RX RCVR
| Part | Features | Current - Receiving | Mounting Type | Sensitivity | Applications | Operating Temperature (Min) | Operating Temperature (Max) | Data Rate (Max) | Package / Case | Antenna Connector | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Modulation or Protocol | Data Interface | Frequency | Package Name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Long Range | 5.2 mA | Surface Mount | -112 dBm | Home/Industrial Automation Lighting Remote Control RKE Security | -40 °C | 70 °C | 10 kBaud | 16-SMD Module | Castellation | 2.1 V | 3.6 V | ASK OOK | Serial | 433 MHz | |
 TE Connectivity AMP Connectors | Integrated Remote Control Decoder | 5.2 mA | Surface Mount | -112 dBm | Home/Industrial Automation Lighting Remote Control RKE | -40 °C | 70 °C | 31-SMD Module | Castellation | 2.1 V | 3.6 V | ASK OOK | Parallel | 433 MHz | Module |
