Q-0A00Y0 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

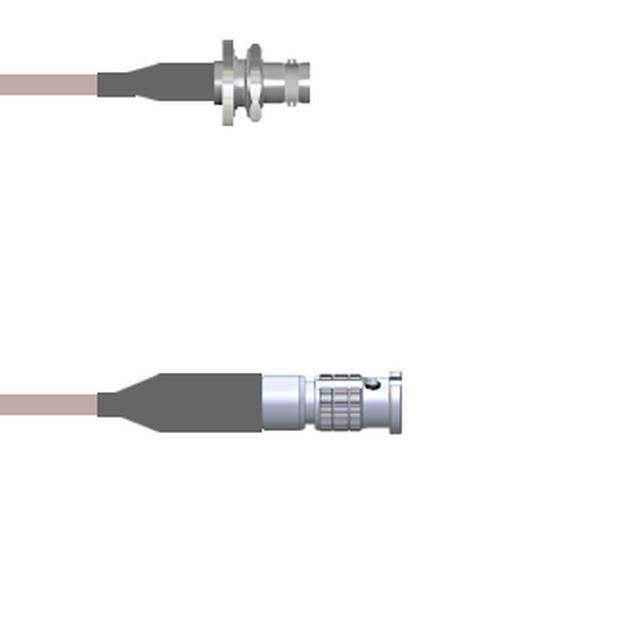

CBL ASSY BNC-HDBNC JACK-PLG 9.8'
| Part | 2nd Connector Mounting Type | 1st Connector Mounting Type | Length | 1st Contact Gender | 2nd Connector | 2nd Contact Gender | Style | Cable Type | 1st Connector Mounting Feature | Color | Features | Frequency - Max | 1st Connector | Overall Impedance | Length (ft) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Free Hanging (In-Line) | Panel Mount | 118.1 in | Female | HD-BNC Plug | Male | BNC HD-BNC | 142 RG | Bulkhead Front Side Nut | Copper | Shielded | 4 GHz | BNC Jack | 50 Ohms | |
McGill Microwave Systems | Free Hanging (In-Line) | Panel Mount | 24 in | Female | HD-BNC Plug | Male | BNC HD-BNC | 142 RG | Bulkhead Front Side Nut | Copper | Shielded | 4 GHz | BNC Jack | 50 Ohms | |
McGill Microwave Systems | Free Hanging (In-Line) | Panel Mount | 29.53 in | Female | HD-BNC Plug | Male | BNC HD-BNC | 142 RG | Bulkhead Front Side Nut | Copper | Shielded | 4 GHz | BNC Jack | 50 Ohms | |
McGill Microwave Systems | Free Hanging (In-Line) | Panel Mount | 39.4 in | Female | HD-BNC Plug | Male | BNC HD-BNC | 142 RG | Bulkhead Front Side Nut | Copper | Shielded | 4 GHz | BNC Jack | 50 Ohms | |
McGill Microwave Systems | Free Hanging (In-Line) | Panel Mount | 0.5 ft | Female | HD-BNC Plug | Male | BNC HD-BNC | 142 RG | Bulkhead Front Side Nut | Copper | Shielded | 4 GHz | BNC Jack | 50 Ohms | |
McGill Microwave Systems | Free Hanging (In-Line) | Panel Mount | Female | HD-BNC Plug | Male | BNC HD-BNC | 142 RG | Bulkhead Front Side Nut | Copper | Shielded | 4 GHz | BNC Jack | 50 Ohms | 6.6 ft | |
McGill Microwave Systems | Free Hanging (In-Line) | Panel Mount | 48 in | Female | HD-BNC Plug | Male | BNC HD-BNC | 142 RG | Bulkhead Front Side Nut | Copper | Shielded | 4 GHz | BNC Jack | 50 Ohms | |
McGill Microwave Systems | Free Hanging (In-Line) | Panel Mount | 59.1 in | Female | HD-BNC Plug | Male | BNC HD-BNC | 142 RG | Bulkhead Front Side Nut | Copper | Shielded | 4 GHz | BNC Jack | 50 Ohms | 4.9 ft |
McGill Microwave Systems | Free Hanging (In-Line) | Panel Mount | 228.6 mm | Female | HD-BNC Plug | Male | BNC HD-BNC | 142 RG | Bulkhead Front Side Nut | Copper | Shielded | 4 GHz | BNC Jack | 50 Ohms | |
McGill Microwave Systems | Free Hanging (In-Line) | Panel Mount | 9.843 in | Female | HD-BNC Plug | Male | BNC HD-BNC | 142 RG | Bulkhead Front Side Nut | Copper | Shielded | 4 GHz | BNC Jack | 50 Ohms |
