M85049/52 Series

Catalog

CONN CAB CLAMP SZ12 OLIV 3/4-20

Part	Color	Thread Pitch (TPI)	Thread Size (Class)	Thread Size (Nominal)	Cable Exit Angle	Plating	Material	Cable Opening (Min)	Cable Opening (Max)	Type	Shell Size - Insert	Shell Size - Insert	Diameter - Outside	Features	For Use With/Related Products	Shielding	Thread Size

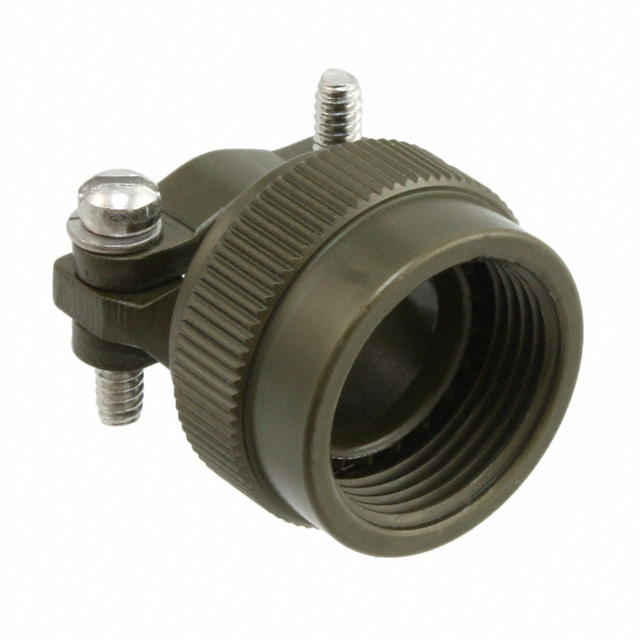

McGill Microwave Systems M85049/52S12W	Olive	20 TPI	UNEF	0.75 in	180 °	Cadmium Nickel	Aluminum Alloy	0.29 in	0.42 in	Cable Clamp	12	12	1.14 in	Clamp Screws Self-Locking
McGill Microwave Systems M85049/52S12W	Olive	20 TPI	UNEF	0.75 in	180 °	Cadmium Nickel	Aluminum Alloy	0.29 in	0.42 in	Cable Clamp	12	12	1.14 in	Clamp Screws Self-Locking	III MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I
McGill Microwave Systems M85049/52-1-36N	Silver				180 °	Electroless Nickel	Aluminum Alloy	0.94 in	1.38 in	Cable Clamp	36	36	2.469 in	Clamp Screws	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III	Unshielded
McGill Microwave Systems M85049/52-1-14N	Silver				180 °	Electroless Nickel	Aluminum Alloy	0.35 in	0.48 in	Cable Clamp		14	0.98 in	Clamp Screws	III MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I		7/8-20 UNEF
McGill Microwave Systems M85049/52-1-8N	Silver	20 TPI	UNF	0.5 in	180 °	Electroless Nickel	Aluminum Alloy	0.125 in	0.204 in	Cable Clamp	8	8	0.62 in	Clamp Screws	III MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I

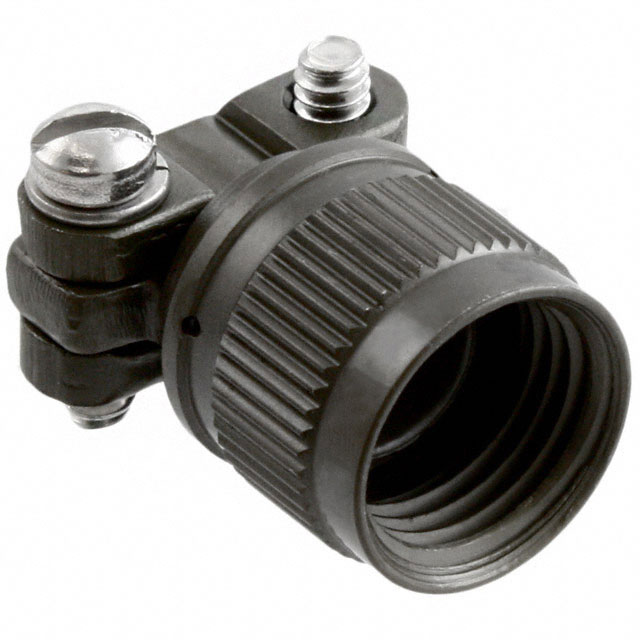

McGill Microwave Systems M85049/52-1-8W	Olive	20 TPI	UNF	0.5 in	180 °	Cadmium Nickel	Aluminum Alloy	0.125 in	0.204 in	Cable Clamp	8	8	0.62 in	Clamp Screws
McGill Microwave Systems M85049/52S24N	Silver				180 °	Electroless Nickel	Aluminum Alloy	0.71 in	1.08 in	Cable Clamp	24	24	1.885 in	Clamp Screws Self-Locking		Unshielded
McGill Microwave Systems M85049/52-1-16N	Silver				180 °	Electroless Nickel	Aluminum Alloy	0.5 in	0.63 in	Cable Clamp	16	16	1.11 in	Clamp Screws			1-20 UNEF
McGill Microwave Systems M85049/52-1-22N	Silver	18 TPI	UNEF	1.3125 in	180 °	Electroless Nickel	Aluminum Alloy	0.64 in	0.96 in	Cable Clamp	22	22	1.47 in	Clamp Screws	III MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I
McGill Microwave Systems M85049/52-1-20N	Silver	18 TPI	UNEF	1.1875 in	180 °	Electroless Nickel	Aluminum Alloy	0.58 in	0.83 in	Cable Clamp	20	20	1.35 in	Clamp Screws
