533034 Series

Catalog

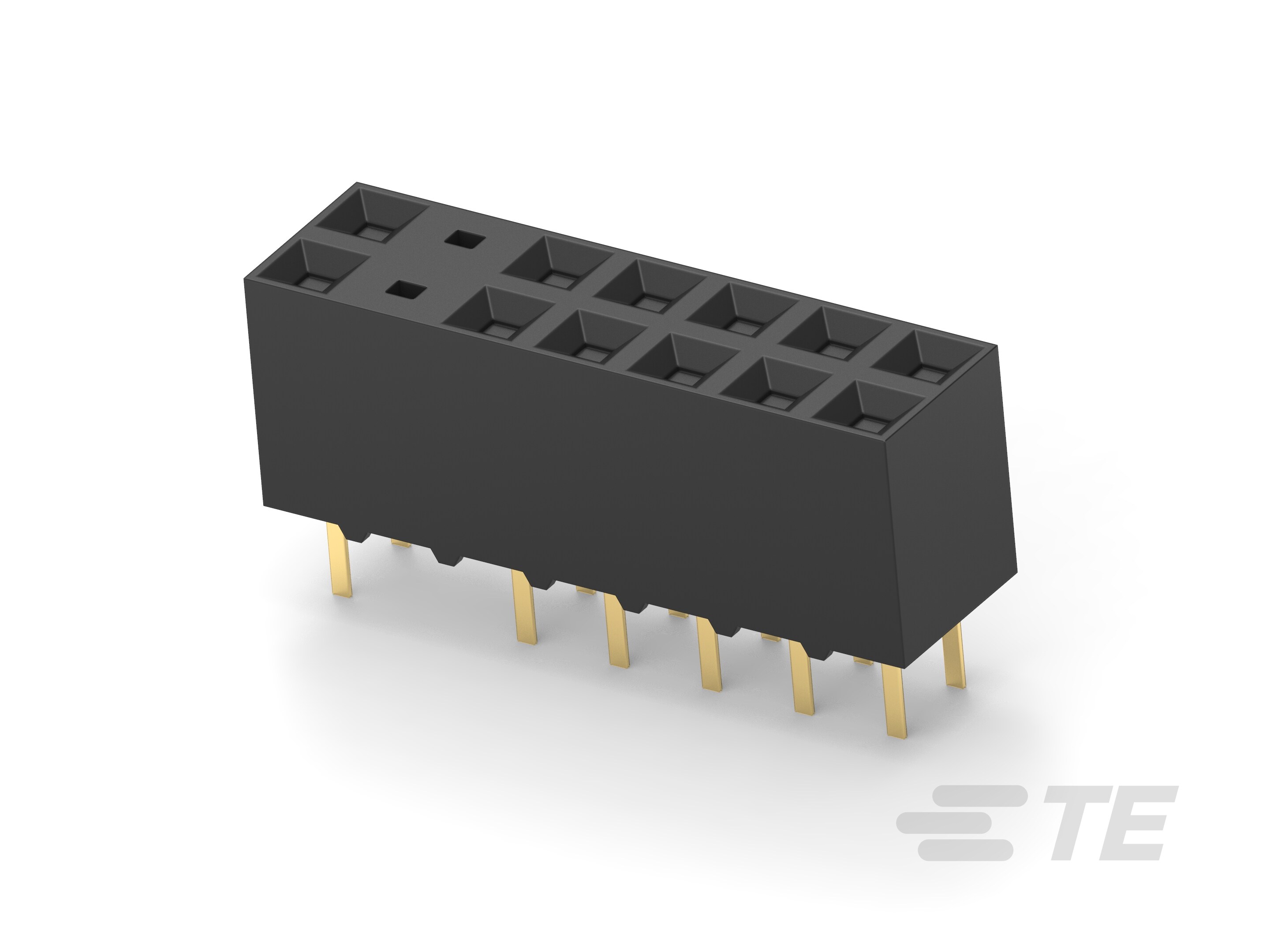

CONN RCPT 14POS 0.15 GOLD PCB

Part	Style	Termination	Number of Positions	Number of Rows	Contact Type	Contact Finish Thickness - Mating	Number of Positions Loaded	Fastening Type	Connector Type	Row Spacing - Mating	Contact Finish - Post	Contact Length - Post	Pitch - Mating	Mounting Type	Insulation Color	Insulation Height	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Shape	Number of Positions Loaded
TE Connectivity AMP Connectors 533034-3	Board Board or Cable	Solder	14	2	Female Socket	30 µin	12	Push-Pull	Receptacle	0.15 in	Tin-Lead	0.14 in	0.15 in	Through Hole	Black	0.335 in	Gold	150 µin	Phosphor Bronze	Glass Filled Thermoplastic	Square
TE Connectivity AMP Connectors 533034-1	Board Board or Cable	Solder	6	2	Female Socket	30 µin		Push-Pull	Receptacle	0.15 in	Tin-Lead	0.14 in	0.15 in	Through Hole	Black	0.335 in	Gold	150 µin	Phosphor Bronze	Glass Filled Thermoplastic	Square	All
