RTHP02 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
RECEPTACLE, SQUARE FLANGE, 1 POSITION, MALE, RADSOK TECHNOLOGY, HIGH AMPERAGE, SHELL SIZE 20, CRIMP TERMINATION / 25 ROHS COMPLI
| Part | Current Rating | Contact Finish - Mating | Orientation | Ingress Protection Description | Ingress Protection IP Rating | Shell Material | Shell Finish | Operating Temperature (Max) | Operating Temperature (Min) | Number of Positions | Shell Size - Insert Width | Shell Size - Insert Length | Shielding | Voltage Rating | Primary Material | Termination | Connector Type | Mounting Type | Fastening Type | Mounting Feature | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

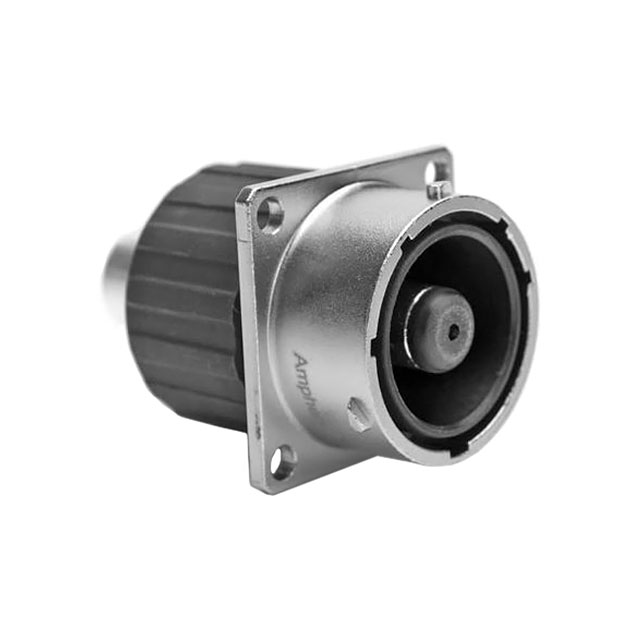

 McGill Microwave Systems | 180 A | Silver | N (Normal) | Dust Tight Waterproof | IP67 | Zinc Die Cast | Nickel | 125 °C | -40 °C | 1 | 1 mm | 20 mm | Shielded | 630 V | Metal | Crimp | Male Pins Receptacle | Panel Mount | Bayonet Lock | Flange | Silver |

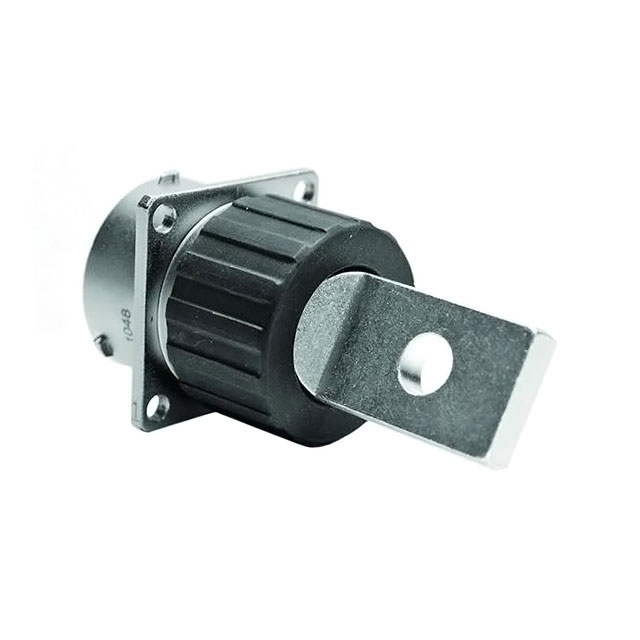

 McGill Microwave Systems | 300 A | Silver | N (Normal) | Dust Tight Waterproof | IP67 | Zinc Die Cast | Nickel | 125 °C | -40 °C | 1 | 1 mm | 20 mm | Shielded | 630 V | Metal | Solder Eyelet(s) | Male Pins Receptacle | Panel Mount | Bayonet Lock | Flange | Silver |
