RTS08 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

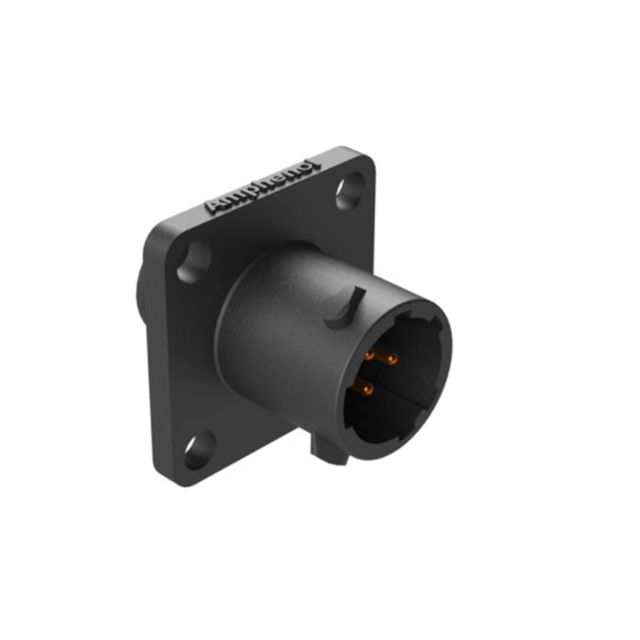

CONN RCPT MALE 3P GOLD SLDR CUP
| Part | Fastening Type | Contact Finish - Mating | Shell Material | Material Flammability Rating | Number of Positions | Mounting Feature | Operating Temperature (Min) | Operating Temperature (Max) | Termination | Applications | Connector Type | Orientation | Color | Shell Size - Insert Length | Shell Size - Insert Width | Shielding | Mounting Type | Voltage Rating | Voltage Rating (Type) | Contact Material | Ingress Protection IP Rating | Ingress Protection Description | Current Rating | Primary Material | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Bayonet Lock | Gold | Thermoplastic | UL94 V-0 | 3 | Flange | -40 °C | 105 °C | Solder Cup | Automation Industrial Instrumentation Marine Telecom Transportation | Male Pins Receptacle | N (Normal) | Black | 8 mm | 3 mm | Unshielded | Panel Mount | 250 V | DC | Copper Alloy | IP67 IP69K | Dust Tight Water Resistant Waterproof | 7 A | Plastic | Chloroprene Rubber CR |
