ADCLK914 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

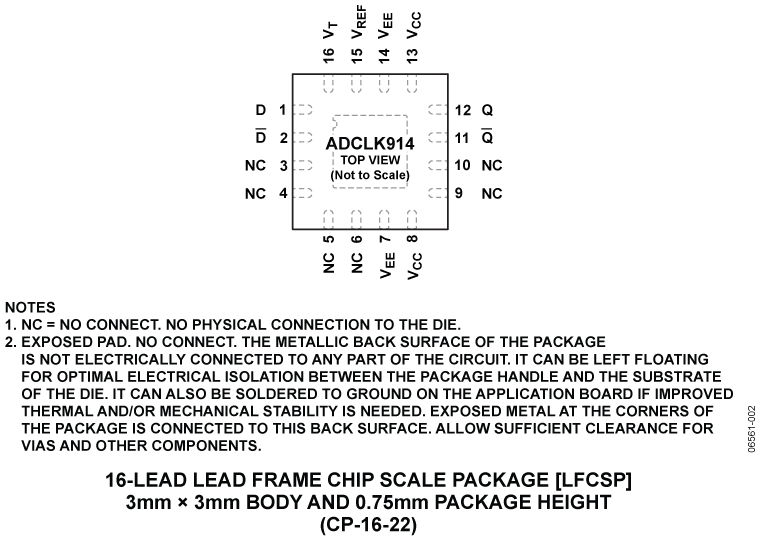

CLOCK/DATA BUFFER, HVDS, 1 OUTPUT, 2.97 TO 3.63 V, 7.5 GHZ, -40 TO 125 °C, LFCSP-EP-16
| Part | Number of Circuits | Operating Temperature (Max) | Operating Temperature (Min) | Output | Package Length | Package Name | Package Width | Output Ratio | Input Ratio | Frequency - Max | Type | Package / Case | Input | Mounting Type | Differential Input | Differential Output | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 1 | 125 °C | -40 °C | HVDS | 3 mm | 16-LFCSP-VQ | 3 mm | 1 | 1 | 7.5 GHz | Buffer/Driver Data | 16-VFQFN Exposed Pad CSP | CML CMOS LVDS LVPECL LVTTL | Surface Mount | Yes | Yes | 3.63 V | 2.97 V |
 Analog Devices Inc./Maxim Integrated | 1 | 125 °C | -40 °C | HVDS | 3 mm | 16-LFCSP-VQ | 3 mm | 1 | 1 | 7.5 GHz | Buffer/Driver Data | 16-VFQFN Exposed Pad CSP | CML CMOS LVDS LVPECL LVTTL | Surface Mount | Yes | Yes | 3.63 V | 2.97 V |
Analog Devices Inc./Maxim Integrated | 1 | 125 °C | -40 °C | HVDS | 3 mm | 16-LFCSP-VQ | 3 mm | 1 | 1 | 7.5 GHz | Buffer/Driver Data | 16-VFQFN Exposed Pad CSP | CML CMOS LVDS LVPECL LVTTL | Surface Mount | Yes | Yes | 3.63 V | 2.97 V |
