RT0L Series

Catalog

CABLE GRIP 13.5-16.99MM 15/16-20

Part	Type	Outside Cable Diameter (Max)	Includes	Thread Pitch (TPI)	Thread Size (Nominal)	Material	Color	Ingress Protection Description	Ingress Protection IP Rating	Outside Cable Diameter (Min)

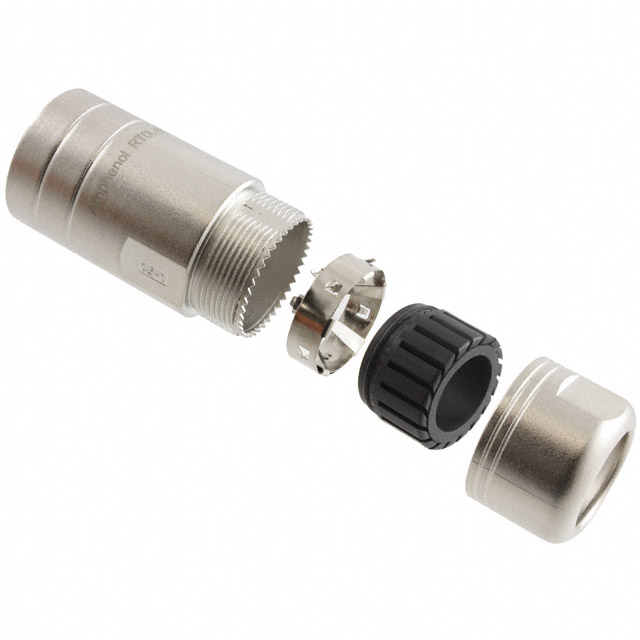

McGill Microwave Systems RT0L-16CG-S2	Cable Grip	0.669 in	EMC Grounding Ring Gasket Nut Seal	20 TPI	0.9375 in	Zinc	Gray	Dust Tight Waterproof	IP67	0.531 in

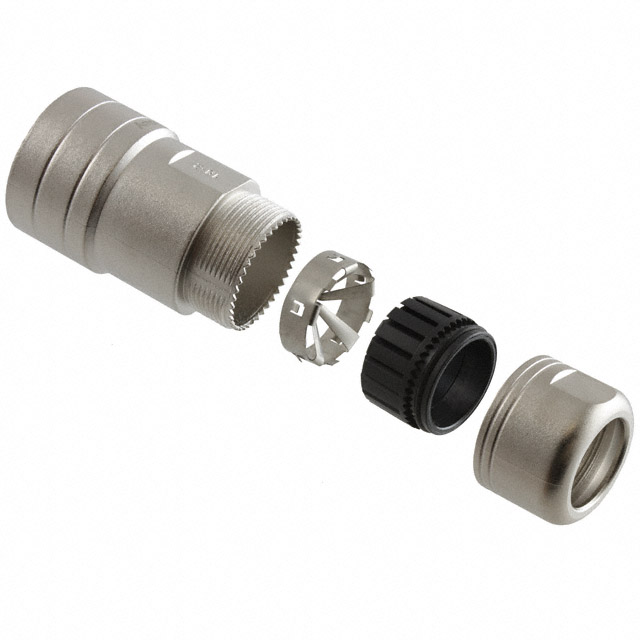

McGill Microwave Systems RT0L-18CG-S2	Cable Grip	0.669 in	EMC Grounding Ring Gasket Nut Seal	18 TPI	1.0625 in	Zinc	Gray	Dust Tight Waterproof	IP67	0.531 in

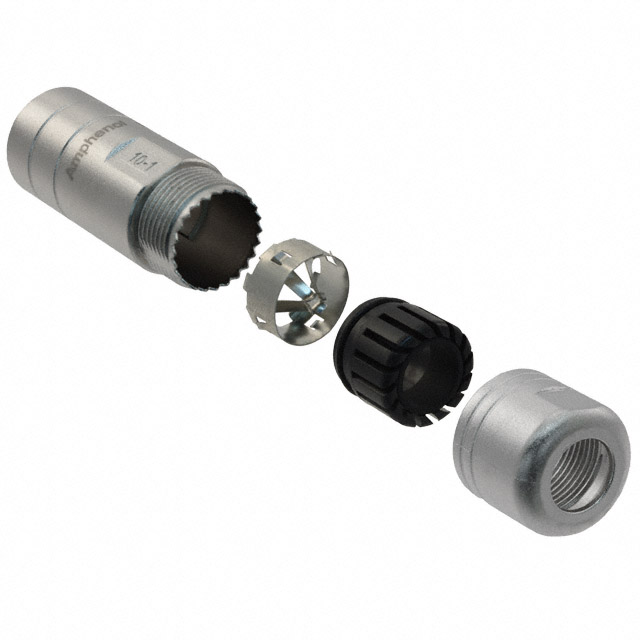

McGill Microwave Systems RT0L-10CG-S1	Cable Grip	0.256 in	EMC Grounding Ring Gasket Nut Seal	24 TPI	0.5625 in	Zinc	Gray	Dust Tight Waterproof	IP67	0.118 in

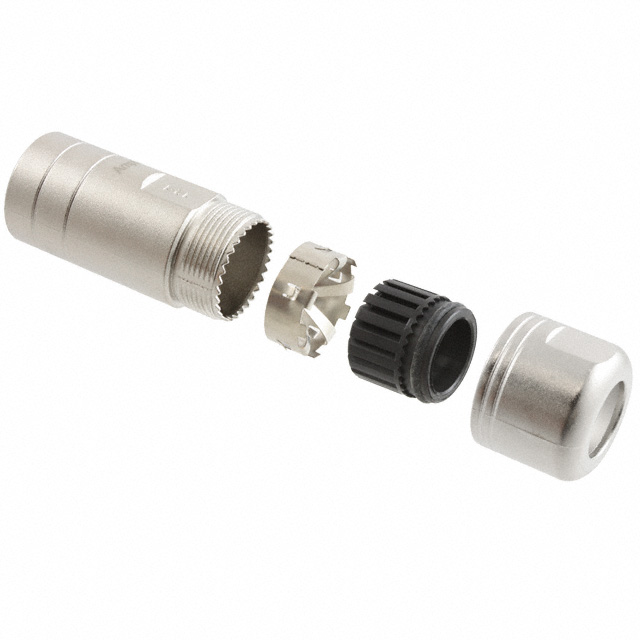

McGill Microwave Systems RT0L-12CG-S1	Cable Grip	0.413 in	EMC Grounding Ring Gasket Nut Seal	24 TPI	0.6875 in	Zinc	Gray	Dust Tight Waterproof	IP67	0.236 in
McGill Microwave Systems RT0L-16CG-S1	Cable Grip	0.551 in	EMC Grounding Ring Gasket Nut Seal	20 TPI	0.9375 in	Zinc	Gray	Dust Tight Waterproof	IP67	0.354 in
McGill Microwave Systems RT0L-18CG-S1	Cable Grip	0.571 in	EMC Grounding Ring Gasket Nut Seal	18 TPI	1.0625 in	Zinc	Gray	Dust Tight Waterproof	IP67	0.354 in
