FTE-101 Series
Manufacturer: Samtec Inc.
Beta
⌘K

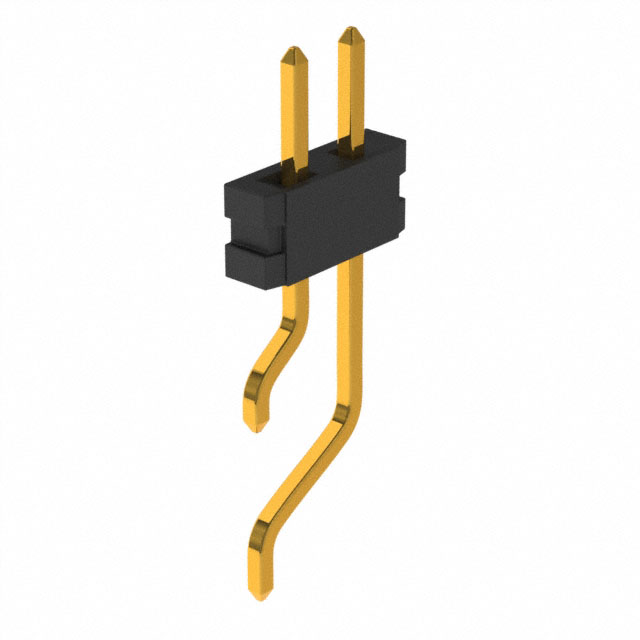

CONN HEADER SMD R/A 2POS
| Part | Contact Finish Thickness - Mating | Connector Type | Shrouding | Number of Rows | Operating Temperature (Max) | Operating Temperature (Min) | Contact Material | Contact Length - Mating | Contact Type | Contact Finish - Post | Row Spacing - Mating | Contact Finish Thickness - Post | Number of Positions Loaded | Contact Shape | Fastening Type | Insulation Height | Insulation Material | Contact Finish - Mating | Current Rating (Per Contact) | Material Flammability Rating | Insulation Color | Mounting Type | Style | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Samtec Inc. | 10 µin | Header | Unshrouded | 2 | 125 °C | -55 °C | Phosphor Bronze | 0.075 in | Male Pin | Gold | 0.047 in | 3 µin | All | Square | Push-Pull | 0.12 in | Liquid Crystal Polymer (LCP) | Gold | 2.7 A | UL94 V-0 | Black | Right Angle Surface Mount | Board | Solder | 2 |
