AX5M Series

Catalog

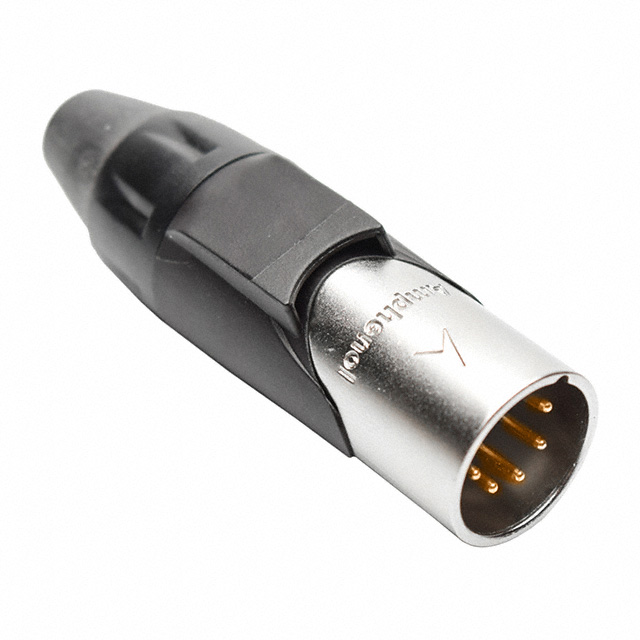

CONN RCPT MALE XLR 5P SOLDER CUP

Part	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Shell Finish	Mounting Type	Color	Orientation	Ingress Protection	Fastening Type	Connector Type	Current Rating	Primary Material	Number of Positions	Termination	Features	Shell Material	Shell Size - Insert
McGill Microwave Systems AX5M6M	-25 °C	75 °C	Silver	Nickel	Free Hanging (In-Line)	Silver	Keyed	IP40	Latch Holder	Male Pins Receptacle	7.5 A	Metal	5	Solder Cup	Backshell Cable Clamp	Zinc Die Cast	XLR
McGill Microwave Systems AX5M8M	-25 °C	75 °C	Silver	Nickel	Free Hanging (In-Line)	Silver	Keyed	IP40	Latch Holder	Male Pins Receptacle	7.5 A	Metal	5	Solder Cup	Backshell Cable Clamp	Zinc Die Cast	XLR
McGill Microwave Systems AX5M1M	-25 °C	75 °C	Silver	Nickel	Free Hanging (In-Line)	Silver	Keyed	IP40	Latch Holder	Male Pins Receptacle	7.5 A	Metal	5	Solder Cup	Backshell Cable Clamp	Zinc Die Cast	XLR
McGill Microwave Systems AX5M5M	-25 °C	75 °C	Silver	Nickel	Free Hanging (In-Line)	Silver	Keyed	IP40	Latch Holder	Male Pins Receptacle	7.5 A	Metal	5	Solder Cup	Backshell Cable Clamp	Zinc Die Cast	XLR

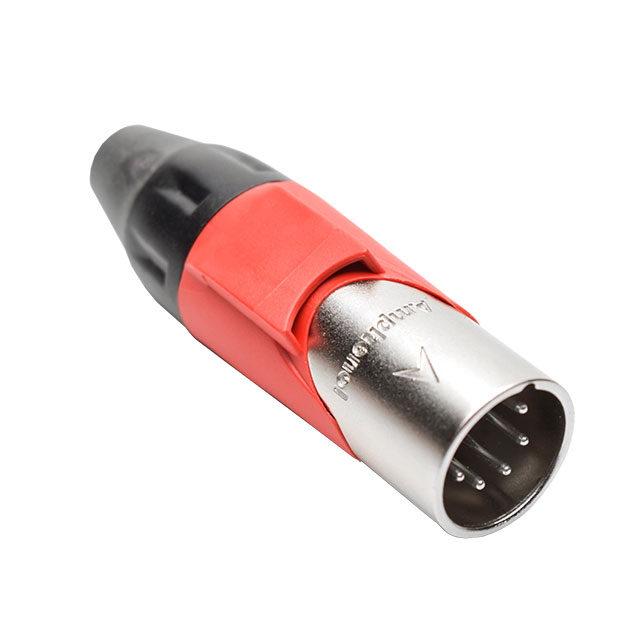

McGill Microwave Systems AX5M2M	-25 °C	75 °C	Silver	Nickel	Free Hanging (In-Line)	Silver	Keyed	IP40	Latch Holder	Male Pins Receptacle	7.5 A	Metal	5	Solder Cup	Backshell Cable Clamp	Zinc Die Cast	XLR
