LTO 100 H Series

Catalog

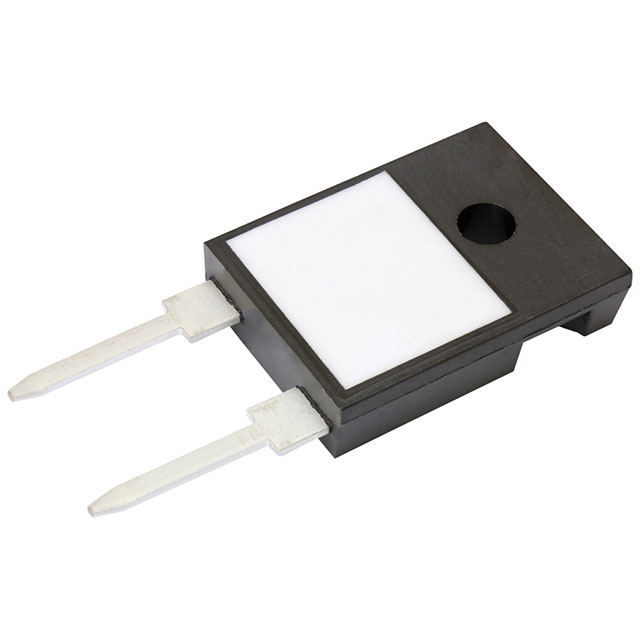

THICK FILM RESISTORS - THROUGH HOLE 100W 10OHMS 5% TO-247 HIGH PULSE ABSORPTION

Part	Package / Case	Package Name	Tolerance	Size / Dimension Width	Size / Dimension Length	Height - Seated (Max)	Composition	Features	Operating Temperature (Max)	Operating Temperature (Min)	Temperature Coefficient	Resistance	Power (Watts)	Number of Terminations
Vishay Dale LTO100H10R00JTE3	TO-247-2	TO-247	5 %	0.197 in	0.62 in	0.976 in	Thick Film	Automotive AEC-Q200 Non-Inductive Pulse Withstanding Safety	175 °C	-55 °C	350 ppm/°C	10 Ohms	100 W	2
Vishay Dale LTO100H22R00JTE3	TO-247-2	TO-247	5 %	0.197 in	0.62 in	0.976 in	Thick Film	Automotive AEC-Q200 Non-Inductive Pulse Withstanding Safety	175 °C	-55 °C	200 ppm/°C	22 Ohm	100 W	2
Vishay Dale LTO100HR8000JTE3	TO-247-2	TO-247	5 %	0.197 in	0.62 in	0.976 in	Thick Film	Automotive AEC-Q200 Non-Inductive Pulse Withstanding Safety	175 °C	-55 °C	350 ppm/°C	800 mOhms	100 W	2
