NTCLE100E3 Series

Catalog

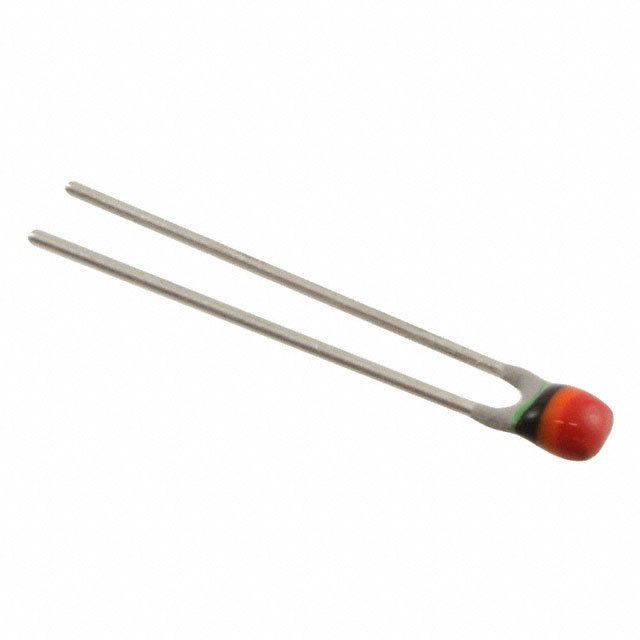

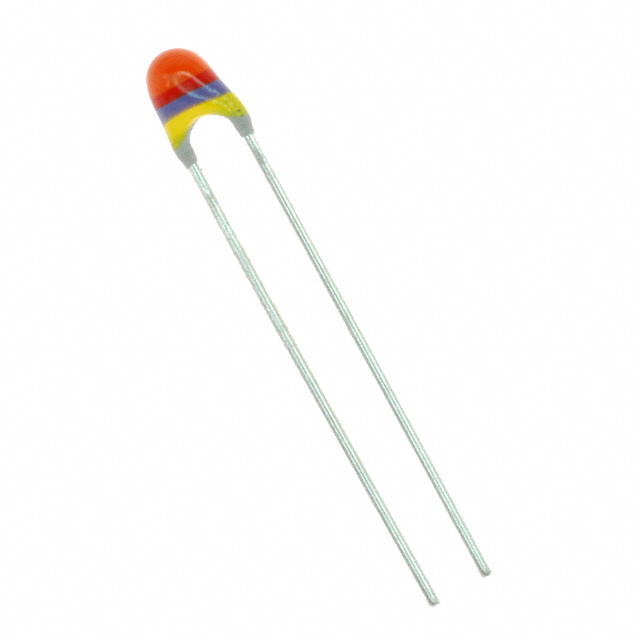

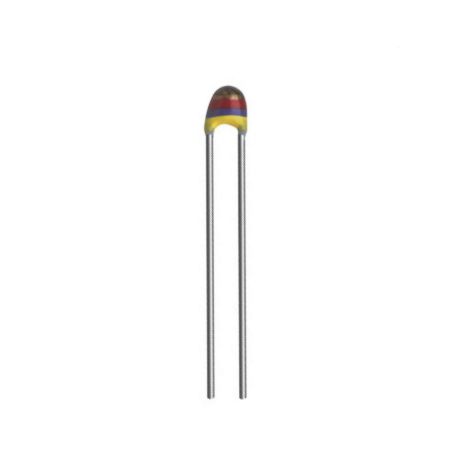

THERMISTOR, NTC, 4.7 OHM, NTCLE SERIES, 2880 K, THROUGH HOLE, RADIAL LEADED

Part	Power - Max	Resistance Tolerance (%)	B Value Tolerance	B Value (25/85)	Mounting Type	Resistance (Ohms)	Length - Lead Wire	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case
Vishay Dale NTCLE100E3478JB0	0.5 W	5 %	3 %	2880 K	Through Hole	4.7 Ohm	0.55 in	125 °C	-40 °C	Bead
Vishay Dale NTCLE100E3472HB0A	0.5 W	3 %	0.75 %	3977 K	Through Hole	4.7 kOhm	0.59 in	125 °C	-40 °C	Bead
Vishay Dale NTCLE100E3333GT1A	0.5 W	2 %	1.5 %	4090 K	Through Hole	33 kOhm	0.59 in	125 °C	-40 °C	Bead
Vishay Dale NTCLE100E3154GB0A	0.5 W	2 %	2.5 %	4370 K	Through Hole	150 kOhm	0.59 in	125 °C	-40 °C	Bead
Vishay Dale NTCLE100E3222JT1A	0.5 W	5 %	0.75 %	3977 K	Through Hole	2.2 kOhm	0.59 in	125 °C	-40 °C	Bead
Vishay Dale NTCLE100E3334JB0A	0.5 W	5 %	1.5 %	4570 K	Through Hole	330 kOhm	0.59 in	125 °C	-40 °C	Bead
Vishay Dale NTCLE100E3272GT2A	0.5 W	2 %	0.75 %	3977 K	Through Hole	2.7 kOhm	0.59 in	125 °C	-40 °C	Bead
Vishay Dale NTCLE100E3202HB0A	0.5 W	3 %	0.5 %	3528 K	Through Hole	2 kOhm	0.59 in	125 °C	-40 °C	Bead
Vishay Dale NTCLE100E3503JT1A	0.5 W	5 %	1.5 %	4190 K	Through Hole	50 kOhm	0.59 in	125 °C	-40 °C	Bead
Vishay Dale NTCLE100E3104JB0	0.5 W	5 %	1.5 %	4190 K	Through Hole	100 kOhm	0.59 in	125 °C	-40 °C	Bead
