082-612 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

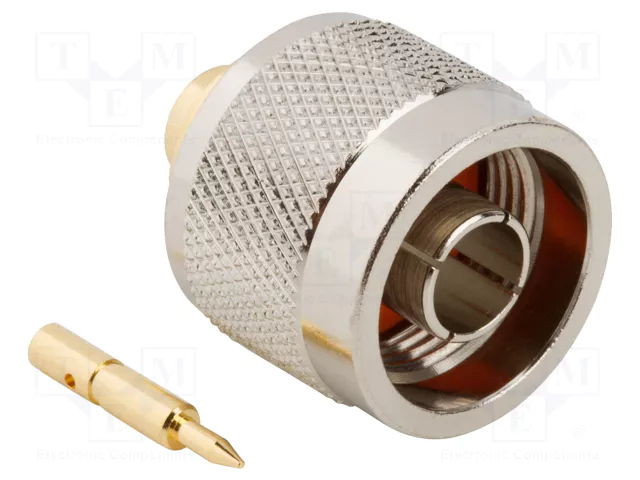

CONNECTOR: N; PLUG; MALE; STRAIGHT; 50Ω; SOLDERING; FOR CABLE; PTFE
| Part | Impedance | Connector Type | Center Contact Material | Mounting Type | Number of Ports | Housing Color | Connector Style | Contact Termination | Frequency - Max | Cable Group Diameter (Semi Rigid) | Cable Group | Shield Termination | Fastening Type | Ingress Protection | Body Material | Mating Cycles | Center Contact Plating | Body Finish | Dielectric Material | Insertion Loss | Includes Total Count | Includes | Voltage Rating | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 50 Ohm | Male Pin Plug | Brass | Free Hanging (In-Line) | 1 | Silver | N Type | Solder | 11 GHz | 0.25 in | RG-401 | Solder | Threaded | Weatherproof | Brass | 500 cycles | Gold | Nickel | Polytetrafluoroethylene (PTFE) | 0.15 dB | 2 pcs | Connector Contact | 1500 V | -65 °C | 165 °C |
