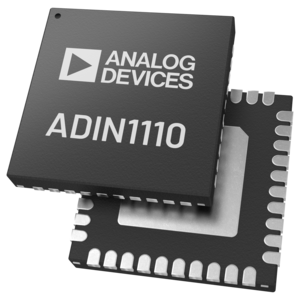

ADIN1110 Series

Catalog

ROBUST, INDUSTRIAL, LOW POWER 10BASE-T1L ETHERNET MAC-PHY

Part	Duplex	Data Rate	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Type	Mounting Type	Protocol	Voltage - Supply (Range 3 Minimum)	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Range 3 Maximum)	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Maximum)	Number of Drivers	Number of Receivers	Package Length	Package Name	Package Width	Raspberry Pi HAT Pin Count	Interconnect System	Function	Utilized IC / Part	Contents	Platform
Analog Devices Inc./Maxim Integrated ADIN1110CCPZ	Full Half	10 Mbps	40-WFQFN Exposed Pad CSP	105 °C	-40 °C	Transceiver	Surface Mount	Ethernet	3.13 V	1 V	3.46 V	1.71 V	1.2 V	3.46 V	1	1	6 mm	40-LFCSP	6 mm
Analog Devices Inc./Maxim Integrated ADIN1110CCPZ-R7	Full Half	10 Mbps	40-WFQFN Exposed Pad CSP	105 °C	-40 °C	Transceiver	Surface Mount	Ethernet	3.13 V	1 V	3.46 V	1.71 V	1.2 V	3.46 V	1	1	6 mm	40-LFCSP	6 mm
Analog Devices Inc./Maxim Integrated EVAL-CN0575-RPIZ						Interface														40 pin	Raspberry Pi HAT	Ethernet PHY	ADIN1110	Board	Raspberry Pi
Analog Devices Inc./Maxim Integrated ADIN1110BCPZ-R7	Full Half	10 Mbps	40-WFQFN Exposed Pad CSP	105 °C	-40 °C	Transceiver	Surface Mount	Ethernet	3.13 V	1 V	3.46 V	1.71 V	1.2 V	3.46 V	1	1	6 mm	40-LFCSP	6 mm
Analog Devices Inc./Maxim Integrated ADIN1110BCPZ	Full Half	10 Mbps	40-WFQFN Exposed Pad CSP	105 °C	-40 °C	Transceiver	Surface Mount	Ethernet	3.13 V	1 V	3.46 V	1.71 V	1.2 V	3.46 V	1	1	6 mm	40-LFCSP	6 mm
