RT002235 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

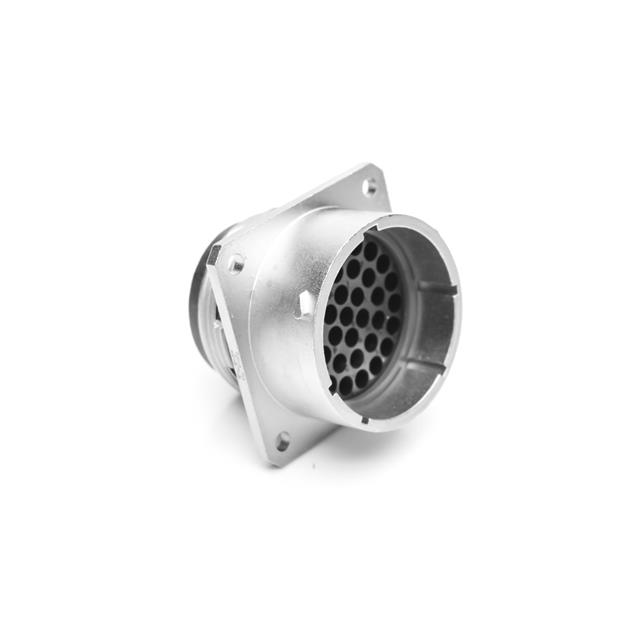

RECEPTACLE, SQUARE FLANGE, 35 POSITION, MALE, SHELL SIZE 22 /BAG ROHS COMPLIANT: YES
| Part | Shell Size - Insert (Minimum) | Shell Size - Insert (Maximum) | Type | Fastening Type | Ingress Protection Description | Ingress Protection IP Rating | Contact Shape | Mounting Type | Orientation | Operating Temperature (Min) | Operating Temperature (Max) | Note | Contact Type | Shell Finish | Material Flammability Rating | Connector Type | Housing Color | Shell Material | Shielding | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 22 | 35 | For Male Pins | Bayonet Lock | Dust Tight Waterproof | IP67 | Circular | Panel Mount | N (Normal) | -40 °C | 105 °C | Contacts Not Included | Crimp | Nickel | UL94 V-0 | Receptacle Housing | Silver | Zinc Alloy | Shielded | Flange |
McGill Microwave Systems | ||||||||||||||||||||
 McGill Microwave Systems | 22 | 35 | For Female Sockets | Bayonet Lock | Dust Tight Waterproof | IP67 | Circular | Panel Mount | N (Normal) | -40 °C | 125 °C | Contacts Not Included | Crimp | Nickel | UL94 V-0 | Receptacle Housing | Silver | Zinc Alloy | Shielded | Flange |
McGill Microwave Systems | ||||||||||||||||||||
McGill Microwave Systems | 22 | 35 | For Female Sockets | Bayonet Lock | Dust Tight Waterproof | IP67 | Circular | Panel Mount | N (Normal) | -40 °C | 105 °C | Contacts Not Included | Crimp | Nickel | UL94 V-0 | Receptacle Housing | Silver | Zinc Alloy | Shielded | Flange |
