LMH020 Series

Catalog

LED MOD LMH2 CL WH ROUND 5000K

Part	Features	Viewing Angle	Lumens/Watt	Size / Dimension Diameter	Configuration	Current - Max	Voltage - Forward (Vf) (Typ)	Type	CRI (Color Rendering Index)	Current - Test	Light Emitting Surface (LES) Diameter	CCT (K)	Lens Type	Color	Luminous Flux	Temperature - Test	Height	Luminous Flux (Typical)	Luminous Flux (Maximum)	Luminous Flux (Minimum)	Style	Diameter	For Use With/Related Manufacturer
CreeLED, Inc. LMH020-4000-50G9-00001TW	Dimming	105 °	108 lm/W	88.2 mm	Play Plug Round	1.03 A	35.5 V	LED Module	90	940 mA	61.3 mm	5000 K	Flat	Cool White	4000 lm	55 °C	60.3 mm
CreeLED, Inc. LMH020-6000-50G9-00000TW	Dimming	105 °	85 lm/W	88.2 mm	Play Plug Round	1.87 A	38 V	LED Module	90	1.7 A		5000 K	Flat	Cool White		55 °C	60.3 mm	6000 lm
CreeLED, Inc. LMH020-2000-35G9-00001TW	Dimming WhiteLight	105 °	97 lm/W	88.2 mm	Round	900 mA	23.8 V	LED Module	90	900 mA	68 mm	3500 K	Domed	Warm White	2000 lm	85 °C	60.3 mm		2140 lm	1860 lm
CreeLED, Inc. LMH020-0850-27G9-00000SS	Dimming Sunset	82 °	97 lm/W	88.2 mm	Round	440 mA	19.9 V	LED Module	90	440 mA	68 mm	2700 K	Flat	Warm White	850 lm	85 °C	30 mm		909 lm	790 lm
CreeLED, Inc. LMH020-1250-40G9-20100TW					Play Plug Round	440 mA		LED Engine				4000 K	Flat	Neutral White

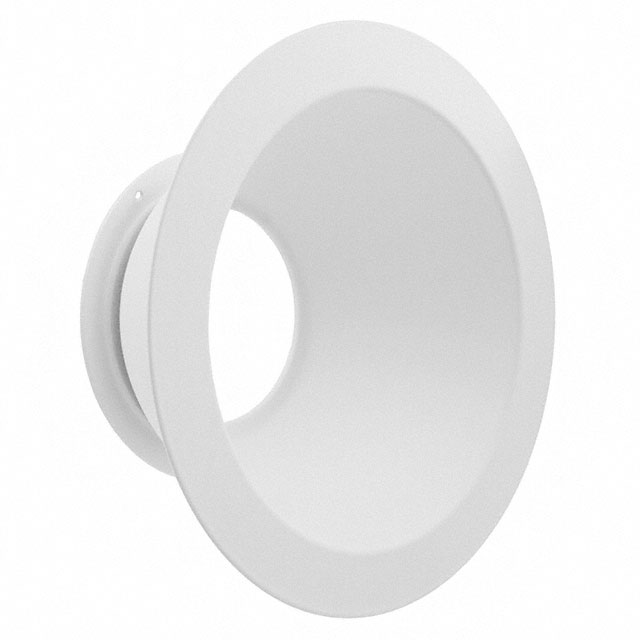

CreeLED, Inc. LMH020-REFL-0000-0000044																					Round	110 mm	Cree
CreeLED, Inc. LMH020-3000-35GS-00000TW	Dimming WhiteLight	82 °	97 lm/W	88.2 mm	Round	900 mA	34.4 V	LED Module	90	900 mA	68 mm	3500 K	Flat	Warm White	3000 lm	85 °C	30 mm		3210 lm	2790 lm
CreeLED, Inc. LMH020-2000-35G9-00000TW	Dimming WhiteLight	82 °	97 lm/W	88.2 mm	Round	900 mA	23.8 V	LED Module	90	900 mA	68 mm	3500 K	Flat	Warm White	2000 lm	85 °C	30 mm		2140 lm	1860 lm
CreeLED, Inc. LMH020-3000-30G9-00000TW	Dimming WhiteLight	82 °	97 lm/W	88.2 mm	Round	900 mA	34.4 V	LED Module	90	900 mA	68 mm	3000 K	Flat	Warm White	3000 lm	85 °C	30 mm		3210 lm	2790 lm
CreeLED, Inc. LMH020-1250-27G9-00000TW	Dimming WhiteLight	82 °	97 lm/W	88.2 mm	Round	440 mA	29.3 V	LED Module	90	440 mA	68 mm	2700 K	Flat	Warm White	1250 lm	85 °C	30 mm		1337 lm	1163 lm
