A3BKB Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE- ASR10B/AE10G/APK10B

Part	Cable Termination	Connector Type	Number of Rows	Pitch - Cable	Pitch - Cable	Contact Finish	Shielding	Number of Positions	Length [x]	Length [x]	Features	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Length	Length	Length	Color	Number of Positions
TE Connectivity Raychem Cable Protection A3BKB-1018G	IDC	Socket to Plug	2	0.05 "	1.27 mm	Gold	Unshielded	10	457.2 mm	1.5 ft	Polarizing Key (Plug) Strain Relief (Socket)	15 µin	0.38 µm	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3BKB-4018G	IDC	Socket to Plug	2	0.05 "	1.27 mm	Gold	Unshielded	40	457.2 mm	1.5 ft	Polarizing Key (Plug) Strain Relief (Socket)	15 µin	0.38 µm	0.1 in	2.54 mm

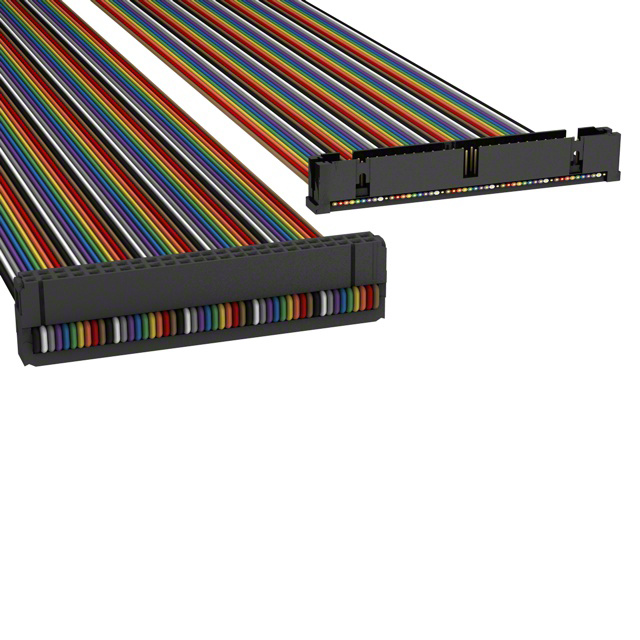

TE Connectivity Raychem Cable Protection A3BKB-5006M	IDC	Socket to Plug	2	0.05 "	1.27 mm	Gold	Unshielded	50			Polarizing Key (Plug) Strain Relief (Socket)	15 µin	0.38 µm	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	Multiple Ribbon
TE Connectivity Raychem Cable Protection A3BKB-1406G	IDC	Socket to Plug	2	0.05 "	1.27 mm	Gold	Unshielded	14			Polarizing Key (Plug) Strain Relief (Socket)	15 µin	0.38 µm	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3BKB-3018M	IDC	Socket to Plug	2	0.05 "	1.27 mm	Gold	Unshielded	30	457.2 mm	1.5 ft	Polarizing Key (Plug) Strain Relief (Socket)	15 µin	0.38 µm	0.1 in	2.54 mm				Multiple Ribbon
TE Connectivity Raychem Cable Protection A3BKB-1618G	IDC	Socket to Plug	2	0.05 "	1.27 mm	Gold	Unshielded		457.2 mm	1.5 ft	Polarizing Key (Plug) Strain Relief (Socket)	15 µin	0.38 µm	0.1 in	2.54 mm					16
TE Connectivity Raychem Cable Protection A3BKB-1436M	IDC	Socket to Plug	2	0.05 "	1.27 mm	Gold	Unshielded	14	914.4 mm	3 ft	Polarizing Key (Plug) Strain Relief (Socket)	15 µin	0.38 µm	0.1 in	2.54 mm				Multiple Ribbon
TE Connectivity Raychem Cable Protection A3BKB-2036G	IDC	Socket to Plug	2	0.05 "	1.27 mm	Gold	Unshielded	20	914.4 mm	3 ft	Polarizing Key (Plug) Strain Relief (Socket)	15 µin	0.38 µm	0.1 in	2.54 mm
TE Connectivity Raychem Cable Protection A3BKB-1006G	IDC	Socket to Plug	2	0.05 "	1.27 mm	Gold	Unshielded	10			Polarizing Key (Plug) Strain Relief (Socket)	15 µin	0.38 µm	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3BKB-3036M	IDC	Socket to Plug	2	0.05 "	1.27 mm	Gold	Unshielded	30	914.4 mm	3 ft	Polarizing Key (Plug) Strain Relief (Socket)	15 µin	0.38 µm	0.1 in	2.54 mm				Multiple Ribbon
