FXPT022 Series

Catalog

TERM BLOCK PLUG 2POS 5.08MM

Part	Contact Material	Material Flammability Rating	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Color	Wire Strip Length	Housing Material	Contact Mating Finish	Insulation Height	Mounting Type	Number of Levels	Operating Temperature	Type	Voltage - UL	Features	Positions Per Level	Number of Positions	Plug Wire Entry Angle	Torque - Screw	Termination Style	Pitch	Current - UL
McGill Microwave Systems FXPT022G0E	Copper Alloy	UL94 V-0	12 AWG	25.5 AWG	Green	7.87 mm	Polyphenylene Oxide PPO	Tin	0.69 in	Free Hanging (In-Line)	2	105 °C	Female Sockets Plug	300 V	Mating Flange Retention Latches (Non-Wire Side)	1	2	90 °	1.13 Nm	Screw with Captive Plate	5.08 mm	15 A

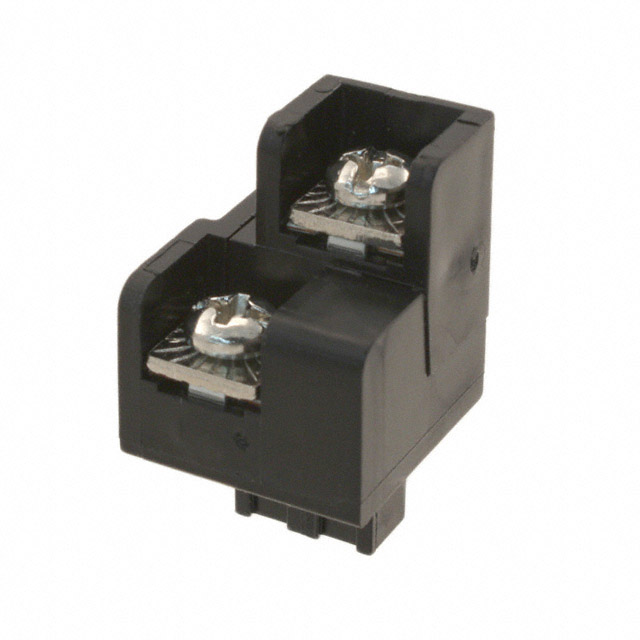

McGill Microwave Systems FXPT02200			12 AWG	25.5 AWG	Black			Tin		Free Hanging (In-Line)	2	105 °C	Female Sockets Plug	300 V	Retention Latches (Non-Wire Side)	1	2	90 °		Screw with Captive Plate	5.08 mm	15 A
McGill Microwave Systems FXPT022G0			12 AWG	25.5 AWG	Green			Tin		Free Hanging (In-Line)	2	105 °C	Female Sockets Plug	300 V	Retention Latches (Non-Wire Side)	1	2	90 °		Screw with Captive Plate	5.08 mm	15 A
McGill Microwave Systems FXPT022G0	Copper Alloy	UL94 V-0	12 AWG	25.5 AWG	Green	7.87 mm	Polyphenylene Oxide PPO	Tin	0.69 in	Free Hanging (In-Line)	2	105 °C	Female Sockets Plug	300 V	Retention Latches (Non-Wire Side)	1	2	90 °	1.13 Nm	Screw with Captive Plate	5.08 mm	15 A
McGill Microwave Systems FXPT02200	Copper Alloy	UL94 V-0	12 AWG	25.5 AWG	Black	7.87 mm	Polyphenylene Oxide PPO	Tin	0.69 in	Free Hanging (In-Line)	2	105 °C	Female Sockets Plug	300 V	Retention Latches (Non-Wire Side)	1	2	90 °	1.13 Nm	Screw with Captive Plate	5.08 mm	15 A
McGill Microwave Systems FXPT022G0E			12 AWG	25.5 AWG	Green			Tin		Free Hanging (In-Line)	2	105 °C	Female Sockets Plug	300 V	Mating Flange Retention Latches (Non-Wire Side)	1	2	90 °		Screw with Captive Plate	5.08 mm	15 A
