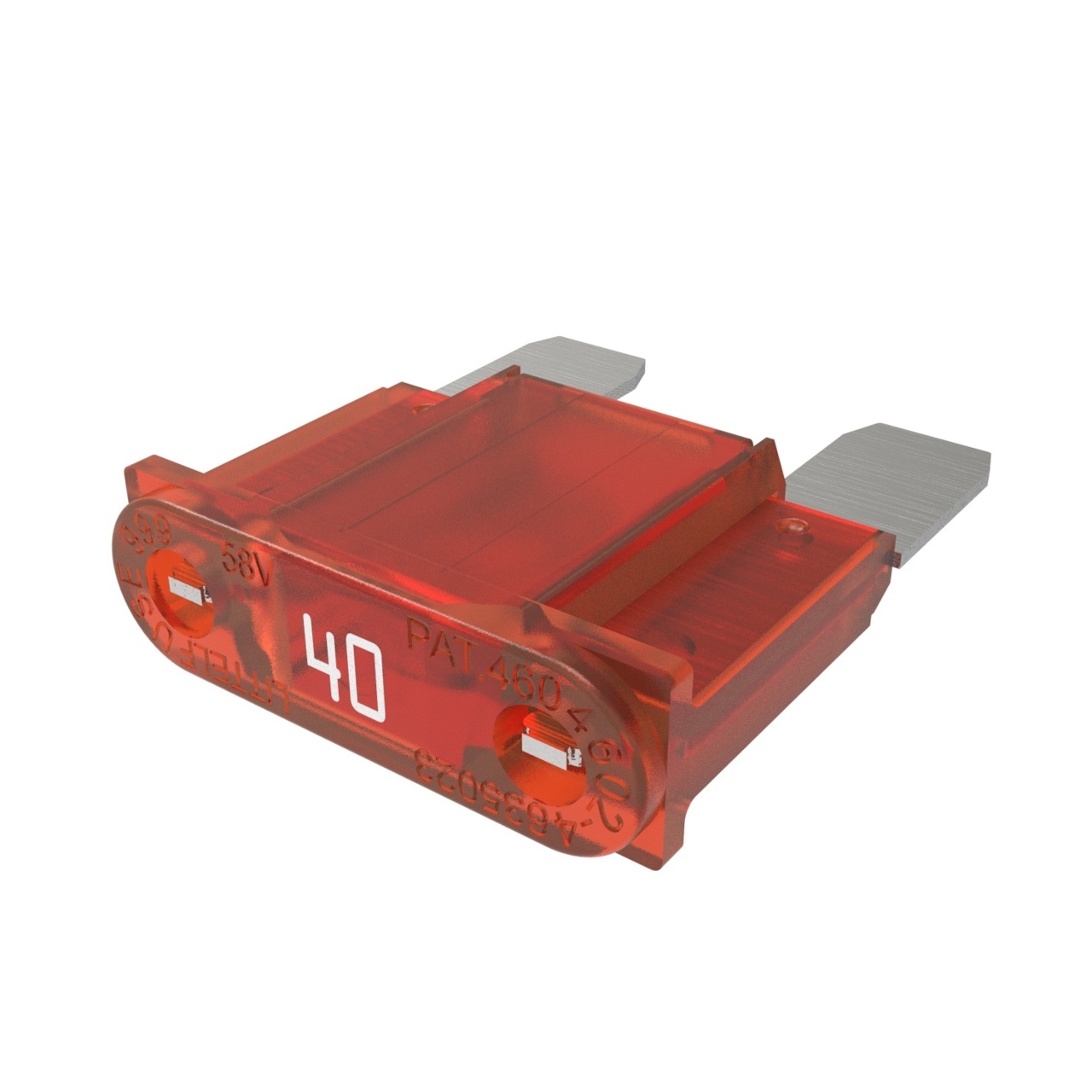

0999040.ZXN Series

Fuse - Maxi 58V 40A 1200 pc

Catalog

Fuse - Maxi 58V 40A 1200 pc

Part	DC Cold Resistance	Current Rating	Fuse Type	Color	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Voltage Rating - DC	Mounting Type	Package / Case	Breaking Capacity	Melting I²t	Response Time	Operating Temperature (Max)	Operating Temperature (Min)
LITTELFUSE 0999040.ZXN	0.00142 Ohms	40 A	Automotive	Orange	0.348 in	0.85 in	1.15 in	58 VDC	Requires Holder	Blade Max	1 kA	8450	Slow Blow	125 °C	-40 °C

Catalog

Fuse - Maxi 58V 40A 1200 pc

Description

This 40 MAXITM 58V Slo-Blo® fuse can protect circuits in automotive electrical systems carrying currents up to 42 V. The blade fuses employ diffusion pill technology to provide predictable time-delayed performance and low heat dissipation.
