T 3274 Series

Catalog

MALE CABLE CONNECTOR WITH INTERN

Part	Current Rating	Cable Opening (Min)	Cable Opening (Max)	Applications	Number of Positions	Shell Size - Insert	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Shell Material	Mounting Type	Insert Material	Termination	Primary Material	Ingress Protection	Voltage Rating	Features	Fastening Type	Orientation	Contact Finish - Mating	Shell Finish	Connector Type	Color	Shielding
McGill Microwave Systems T 3274 528	10 A	0.236 in	0.315 in	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	3	M16-3	100 °C	-40 °C	UL94 V-0	Zinc Die Cast	Free Hanging (In-Line)	Thermoplastic	Solder Cup	Metal	IP40	250 V	Backshell Cable Clamp Coupling Nut	Bayonet Lock	Keyed	Gold	Nickel	Male Pins Plug	Black	Unshielded

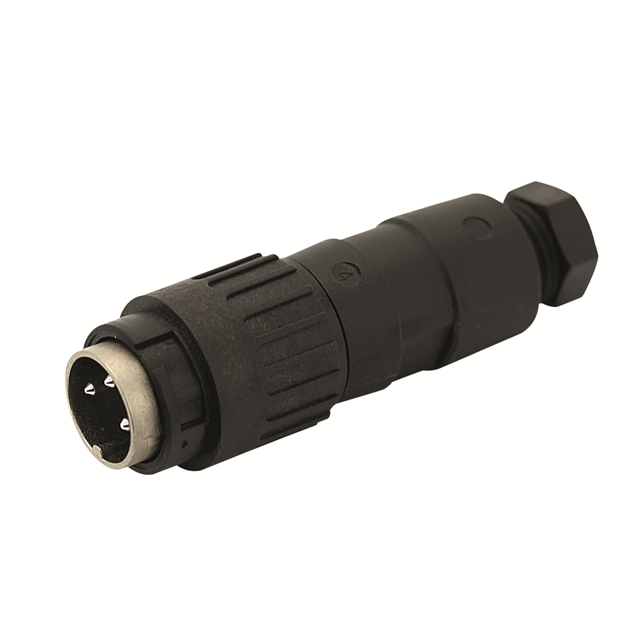

McGill Microwave Systems T 3274 504	10 A	0.157 in	0.236 in	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	3	M16-3	100 °C	-40 °C	UL94 V-0	Zinc Die Cast	Free Hanging (In-Line)	Thermoplastic	Solder Cup	Metal	IP40	250 V	Backshell Cable Clamp Coupling Nut	Bayonet Lock	Keyed	Silver	Nickel	Male Pins Plug	Black	Unshielded
