Model 981 HE Series

Catalog

INDUSTRIAL MOTION & POSITION SENSORS 981 HE 0 B 1 W A 1F16 E1

Part	Actuator Type	Package / Case	Output Signal	Resistance	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Output	For Measuring	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Rotation Angle - Electrical, Mechanical (Mode)	Rotation Angle - Electrical, Mechanical (Maximum)	Rotation Angle - Electrical, Mechanical (Minimum)	Termination Style	Linearity Tolerance	Technology
Vishay Dale 981HE0B1WA1F16	Flatted Shaft	Flatted Shaft Module	Clockwise Increase	1 kOhm	Panel Mount	125 °C	-40 °C	Analog Voltage	Rotary Position	5.5 V	4.5 V	Continuous	90 °	0 °	Wire Leads	0.5 %	Hall Effect
Vishay Dale 981HE3B5WA8H01	Hole for Shaft	Module	Clockwise Increase	1 kOhm	Panel Mount	125 °C	-45 °C	Analog Voltage	Angle Rotary Position	5.5 V	4.5 V	Continuous	120 °	0 °	Wire Leads	0.5 %	Hall Effect
Vishay Dale 981HE3A1WA8H01	Hole for Shaft	Module	Clockwise Increase	1 kOhm	Panel Mount	125 °C	-45 °C	Analog Voltage	Angle Rotary Position	5.5 V	4.5 V	Continuous	90 °	0 °	Wire Leads	1 %	Hall Effect
Vishay Dale 981HE0A2WA8H01	Hole for Shaft	Module	Clockwise Increase	1 kOhm	Panel Mount	125 °C	-45 °C	Analog Voltage	Angle Rotary Position	5.5 V	4.5 V	Continuous	180 °	0 °	Wire Leads	1 %	Hall Effect
Vishay Dale 981HE3A1WA8H01	Hole for Shaft	Module	Clockwise Increase	1 kOhm	Panel Mount	125 °C	-45 °C	Analog Voltage	Angle Rotary Position	5.5 V	4.5 V	Continuous	90 °	0 °	Wire Leads	1 %	Hall Effect
Vishay Dale 981HE3B5WA8H01	Hole for Shaft	Module	Clockwise Increase	1 kOhm	Panel Mount	125 °C	-45 °C	Analog Voltage	Angle Rotary Position	5.5 V	4.5 V	Continuous	120 °	0 °	Wire Leads	0.5 %	Hall Effect
Vishay Dale 981HE2B5WB8H01	Hole for Shaft	Module	Counterclockwise Increase	1 kOhm	Panel Mount	125 °C	-45 °C	Analog Voltage	Angle Rotary Position	5.5 V	4.5 V	Continuous	120 °	0 °	Wire Leads	0.5 %	Hall Effect
Vishay Dale 981HE0A2WA8H01	Hole for Shaft	Module	Clockwise Increase	1 kOhm	Panel Mount	125 °C	-45 °C	Analog Voltage	Angle Rotary Position	5.5 V	4.5 V	Continuous	180 °	0 °	Wire Leads	1 %	Hall Effect
Vishay Dale 981HE3B5WA8H00

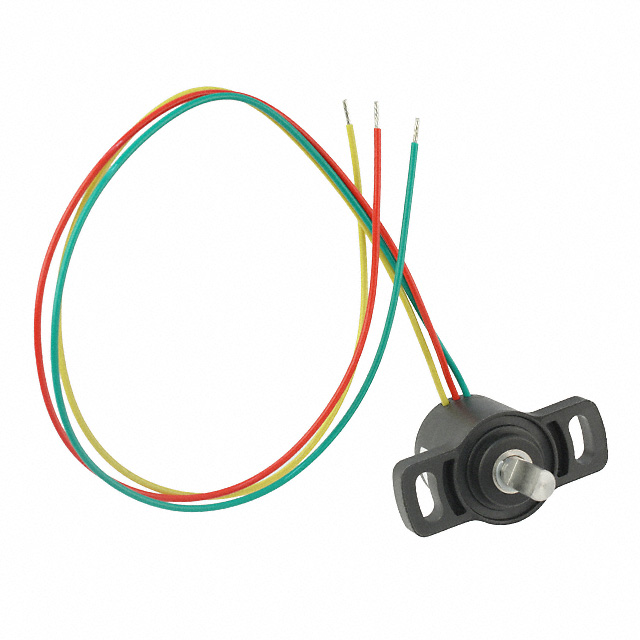

Vishay Dale 981HE2B1WA1F16	Flatted Shaft	Flatted Shaft Module	Clockwise Increase		Chassis Mount	125 °C	-45 °C	Analog Voltage	Rotary Position	5.5 V	4.5 V		90 °	0 °	Wire Leads	0.5 %	Hall Effect
