XCZU17 Series

Catalog

IC SOC CORTEX-A53 1517FCBGA

Part	Number of I/O	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Connectivity	Primary Attributes	Peripherals	Core Processor	Speed	Architecture	RAM Size	Package Width	Package Name	Package Length

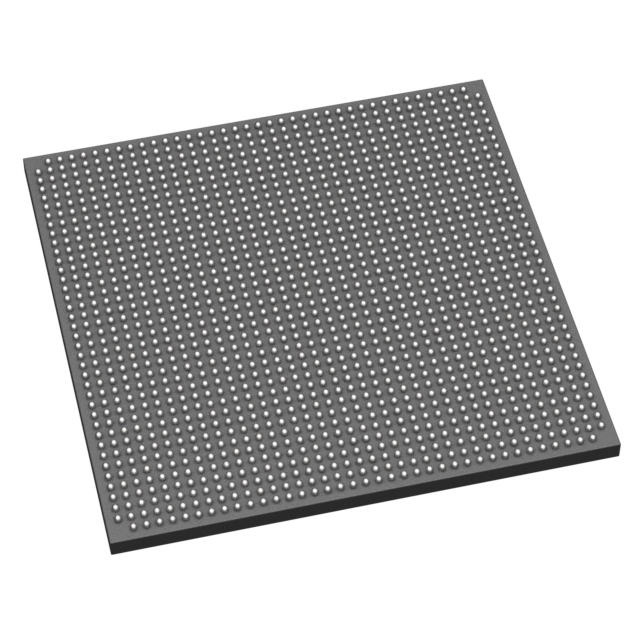

AMD / Xilinx XCZU17EG-2FFVB1517I	644	1517-BBGA FCBGA	100 °C	-40 °C	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	926K+ Logic Cells Zynq®UltraScale+™ FPGA	DMA WDT	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	1.3 GHz 533 MHz 600 MHz	FPGA MCU	256 KB	40 mm	1517-FCBGA	40 mm
AMD / Xilinx XCZU17EG-2FFVC1760E	512	1760-BBGA FCBGA	100 °C	0 °C	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	926K+ Logic Cells Zynq®UltraScale+™ FPGA	DMA WDT	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	1.3 GHz 533 MHz 600 MHz	FPGA MCU	256 KB	42.5 mm	1760-FCBGA	42.5 mm
AMD / Xilinx XCZU17EG-1FFVB1517E	644	1517-BBGA FCBGA	100 °C	0 °C	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	926K+ Logic Cells Zynq®UltraScale+™ FPGA	DMA WDT	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	1.2 GHz 500 MHz 600 MHz	FPGA MCU	256 KB	40 mm	1517-FCBGA	40 mm
AMD / Xilinx XCZU17EG-1FFVC1760E	512	1760-BBGA FCBGA	100 °C	0 °C	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	926K+ Logic Cells Zynq®UltraScale+™ FPGA	DMA WDT	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	1.2 GHz 500 MHz 600 MHz	FPGA MCU	256 KB	42.5 mm	1760-FCBGA	42.5 mm
AMD / Xilinx XCZU17EG-2FFVD1760I	308	1760-BBGA FCBGA	100 °C	-40 °C	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	926K+ Logic Cells Zynq®UltraScale+™ FPGA	DMA WDT	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	1.3 GHz 533 MHz 600 MHz	FPGA MCU	256 KB	42.5 mm	1760-FCBGA	42.5 mm
AMD / Xilinx XCZU17EG-2FFVC1760I	512	1760-BBGA FCBGA	100 °C	-40 °C	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	926K+ Logic Cells Zynq®UltraScale+™ FPGA	DMA WDT	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	1.3 GHz 533 MHz 600 MHz	FPGA MCU	256 KB	42.5 mm	1760-FCBGA	42.5 mm
