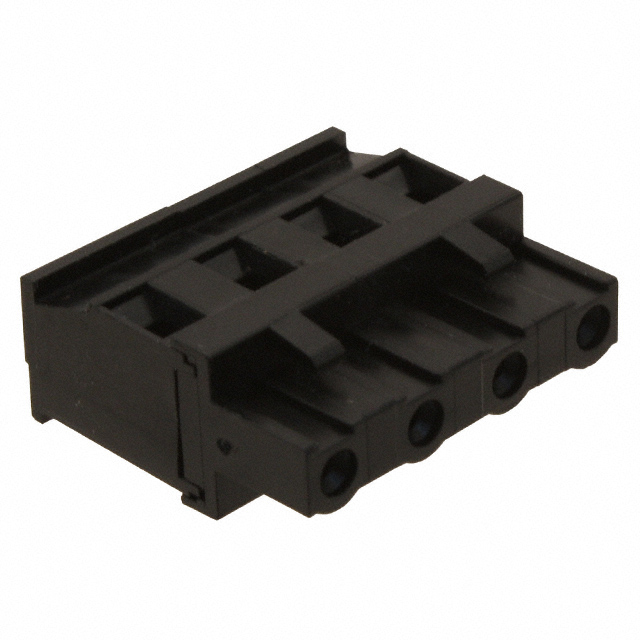

ELFT044 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
7.62MM/.300" STRAIGHT PLUG-TOP E
| Part | Mounting Type | Housing Material | Contact Material | Wire Strip Length | Type | Material Flammability Rating | Positions Per Level | Current - UL | Number of Positions | Termination Style | Plug Wire Entry Angle | Contact Mating Finish | Pitch | Wire Gauge or Range - AWG (Min) | Wire Gauge or Range - AWG (Max) | Insulation Height | Features | Voltage - UL | Number of Levels | Color | Torque - Screw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | |||||||||||||||||||||
 McGill Microwave Systems | Free Hanging (In-Line) | Polyphenylene Oxide PPO | Copper Alloy | 7.87 mm | Female Sockets Plug | UL94 V-0 | 4 | 15 A | 4 | Screw - Rising Cage Clamp | 90 ° | Tin | 0.3 in | 12 AWG | 25.5 AWG | 1.03 in | Retention Latches (Wire Side) | 300 V | 1 | Black | 0.79 Nm |
McGill Microwave Systems | Free Hanging (In-Line) | Polyphenylene Oxide PPO | Copper Alloy | 7.87 mm | Female Sockets Plug | UL94 V-0 | 4 | 15 A | 4 | Screw - Rising Cage Clamp | 270 ° | Tin | 0.3 in | 14 AWG | 25.5 AWG | 1.03 in | Retention Latches (Non-Wire Side) | 300 V | 1 | Black | 0.79 Nm |
McGill Microwave Systems | Free Hanging (In-Line) | Female Sockets Plug | 4 | 15 A | 4 | Screw - Rising Cage Clamp | 90 ° | Tin | 0.3 in | 12 AWG | 25.5 AWG | Retention Latches (Wire Side) | 300 V | 1 | Black | ||||||
McGill Microwave Systems | Free Hanging (In-Line) | Female Sockets Plug | 4 | 15 A | 4 | Screw - Rising Cage Clamp | 270 ° | Tin | 0.3 in | 14 AWG | 25.5 AWG | Retention Latches (Non-Wire Side) | 300 V | 1 | Black | ||||||
McGill Microwave Systems | |||||||||||||||||||||
McGill Microwave Systems | |||||||||||||||||||||
McGill Microwave Systems |
