84952 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN FPC BOTTOM 17POS 1MM R/A

Part	Housing Color	Termination	Locking Feature	Flat Flex Type	Voltage Rating	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Actuator Material	Pitch [x]	Pitch [x]	Mounting Type	Connector/Contact Type	Features	Cable End Type	Height Above Board	Height Above Board	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Actuator Color	Material Flammability Rating	FFC, FCB Thickness	Housing Material	Number of Positions

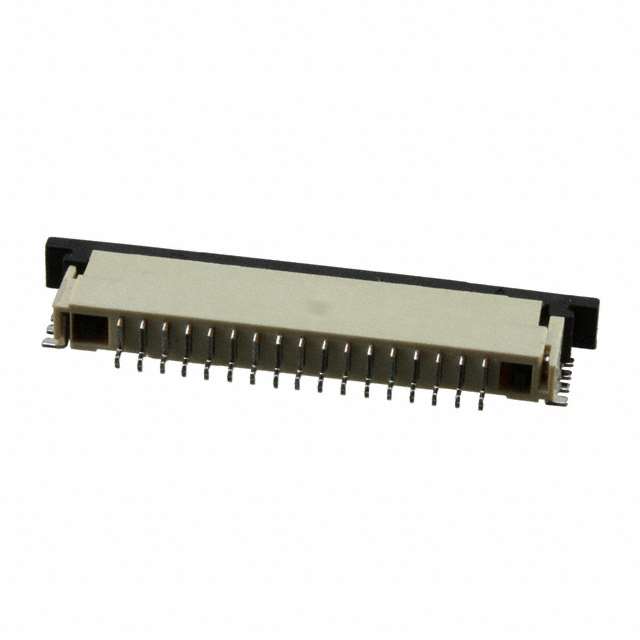

TE Connectivity Raychem Cable Protection 1-84952-7	Natural	Solder	Slide Lock	FPC	200 V	Phosphor Bronze	2 µm	78.7 µin	Glass Filled Nylon Polyamide (PA)	0.039 in	1 mm	Surface Mount Right Angle	Contacts Bottom	Solder Retention Zero Insertion Force (ZIF)	Straight	0.101 "	2.56 mm	85 °C	-40 °C	Tin	Black	UL94 V-0	0.3 mm	Liquid Crystal Polymer (LCP) Glass Filled

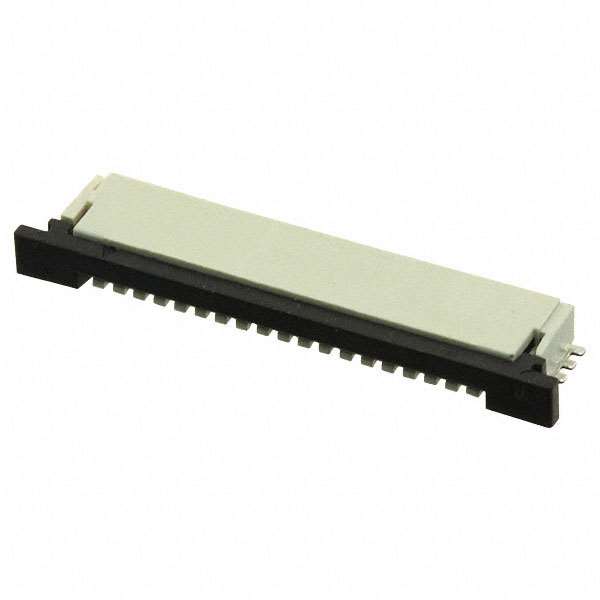

TE Connectivity Raychem Cable Protection 1-84952-8	Natural	Solder	Slide Lock	FPC	200 V	Phosphor Bronze	2 µm	78.7 µin	Glass Filled Nylon Polyamide (PA)	0.039 in	1 mm	Surface Mount Right Angle	Contacts Bottom	Solder Retention Zero Insertion Force (ZIF)	Straight	0.101 "	2.56 mm	85 °C	-40 °C	Tin	Black	UL94 V-0	0.3 mm	Liquid Crystal Polymer (LCP) Glass Filled	18
TE Connectivity Raychem Cable Protection 2-84952-9	Natural	Solder	Slide Lock	FPC	200 V	Phosphor Bronze	2 µm	78.7 µin	Glass Filled Nylon Polyamide (PA)	0.039 in	1 mm	Surface Mount Right Angle	Contacts Bottom	Solder Retention Zero Insertion Force (ZIF)	Straight	0.101 "	2.56 mm	85 °C	-40 °C	Tin	Black	UL94 V-0	0.3 mm	Liquid Crystal Polymer (LCP) Glass Filled	29
TE Connectivity Raychem Cable Protection 84952-5	Natural	Solder	Slide Lock	FPC	200 V	Phosphor Bronze	2 µm	78.7 µin	Glass Filled Nylon Polyamide (PA)	0.039 in	1 mm	Surface Mount Right Angle	Contacts Bottom	Solder Retention Zero Insertion Force (ZIF)	Straight	0.101 "	2.56 mm	85 °C	-40 °C	Tin	Black	UL94 V-0	0.3 mm	Liquid Crystal Polymer (LCP) Glass Filled
TE Connectivity Raychem Cable Protection 84952-6	Natural	Solder	Slide Lock	FPC	200 V	Phosphor Bronze	2 µm	78.7 µin	Glass Filled Nylon Polyamide (PA)	0.039 in	1 mm	Surface Mount Right Angle	Contacts Bottom	Solder Retention Zero Insertion Force (ZIF)	Straight	0.101 "	2.56 mm	85 °C	-40 °C	Tin	Black	UL94 V-0	0.3 mm	Liquid Crystal Polymer (LCP) Glass Filled	6

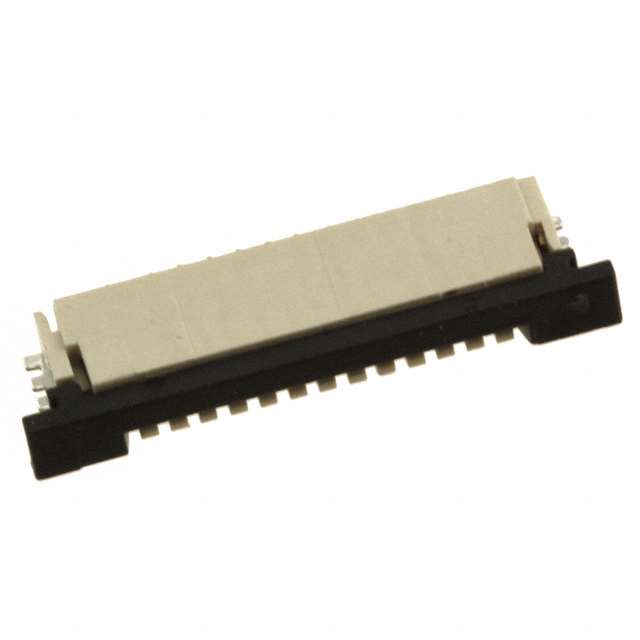

TE Connectivity Raychem Cable Protection 1-84952-2	Natural	Solder	Slide Lock	FPC	200 V	Phosphor Bronze	2 µm	78.7 µin	Glass Filled Nylon Polyamide (PA)	0.039 in	1 mm	Surface Mount Right Angle	Contacts Bottom	Solder Retention Zero Insertion Force (ZIF)	Straight	0.101 "	2.56 mm	85 °C	-40 °C	Tin	Black	UL94 V-0	0.3 mm	Liquid Crystal Polymer (LCP) Glass Filled	12

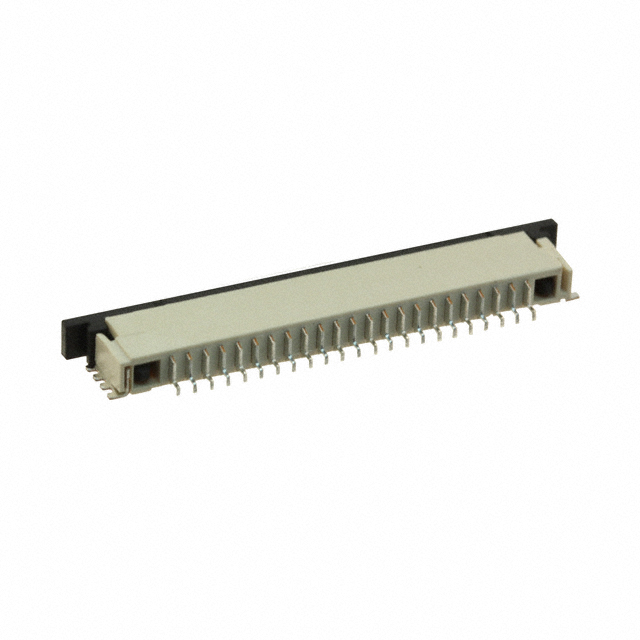

TE Connectivity Raychem Cable Protection 2-84952-3	Natural	Solder	Slide Lock	FPC	200 V	Phosphor Bronze	2 µm	78.7 µin	Glass Filled Nylon Polyamide (PA)	0.039 in	1 mm	Surface Mount Right Angle	Contacts Bottom	Solder Retention Zero Insertion Force (ZIF)	Straight	0.101 "	2.56 mm	85 °C	-40 °C	Tin	Black	UL94 V-0	0.3 mm	Liquid Crystal Polymer (LCP) Glass Filled	23

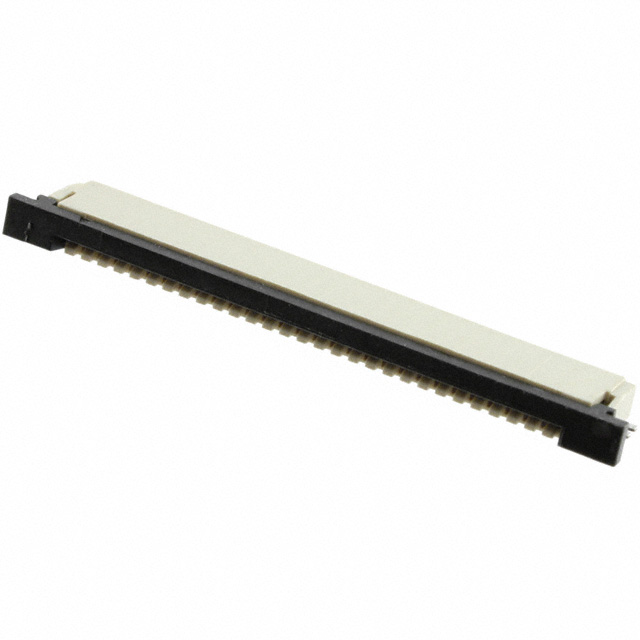

TE Connectivity Raychem Cable Protection 2-84952-8	Natural	Solder	Slide Lock	FPC	200 V	Phosphor Bronze	2 µm	78.7 µin	Glass Filled Nylon Polyamide (PA)	0.039 in	1 mm	Surface Mount Right Angle	Contacts Bottom	Solder Retention Zero Insertion Force (ZIF)	Straight	0.101 "	2.56 mm	85 °C	-40 °C	Tin	Black	UL94 V-0	0.3 mm	Liquid Crystal Polymer (LCP) Glass Filled	28
