747150 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

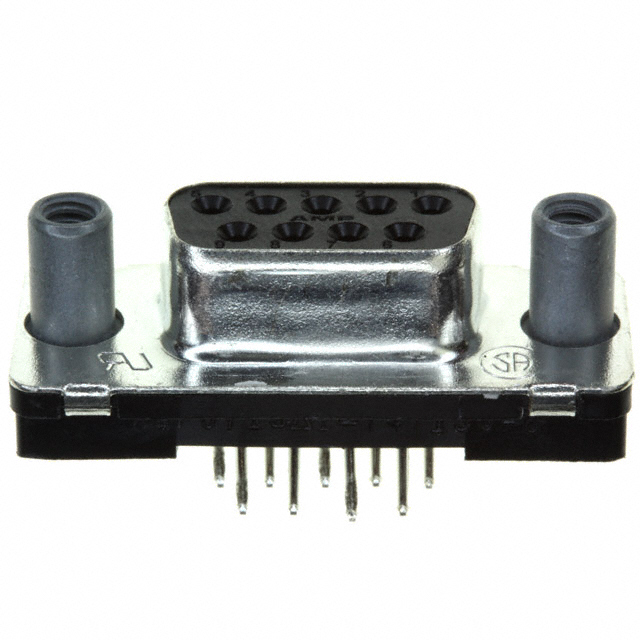

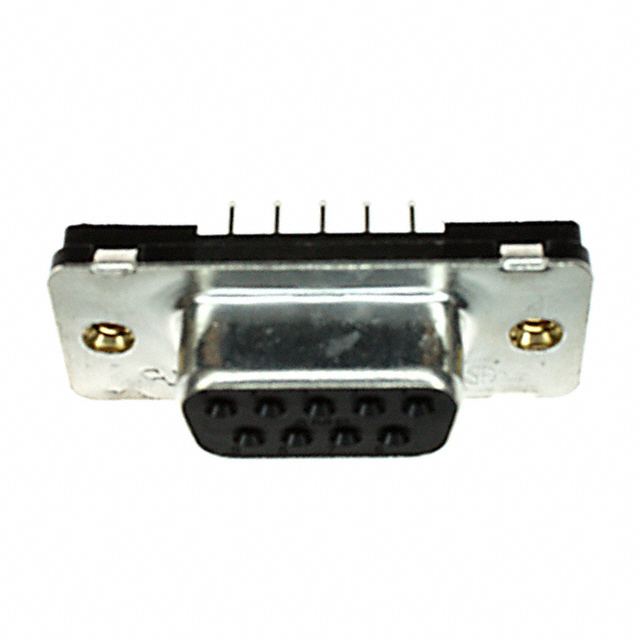

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Contact Finish | Contact Material | Voltage Rating | Color | Current Rating (Amps) | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Connector Type | Connector Style | Material Flammability Rating | Termination | Number of Positions | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 2 | 105 ░C | -55 °C | Polyester | Gold | Phosphor Bronze | 125 VDC | Black | 6 A | Housing/Shell (4-40) | DE E | 1 | Signal | Receptacle Female Sockets | D-Sub | UL94 V-0 | Solder | 9 | Through Hole | Flash | ||
 TE Connectivity Raychem Cable Protection | 2 | 105 ░C | -55 °C | Polyester | Gold | Phosphor Bronze | 125 VDC | Black | 6 A | Housing/Shell (4-40) | DE E | 1 | Signal | Receptacle Female Sockets | D-Sub | UL94 V-0 | Solder | 9 | Through Hole | Flash | ||
 TE Connectivity Raychem Cable Protection | 2 | 105 ░C | -55 °C | Polyester | Gold | Phosphor Bronze | 125 VDC | Black | 6 A | Housing/Shell (Unthreaded) | DE E | 1 | Signal | Receptacle Female Sockets | D-Sub | UL94 V-0 | Solder | 9 | Through Hole | 0.76 Ám | 30 Áin | |
 TE Connectivity Raychem Cable Protection | 2 | 105 ░C | -55 °C | Polyester | Gold | Phosphor Bronze | 125 VDC | Black | 6 A | Female Screwlock (4-40) Mating Side | DE E | 1 | Signal | Receptacle Female Sockets | D-Sub | UL94 V-0 | Solder | 9 | Through Hole | 0.76 Ám | 30 Áin | |
 TE Connectivity Raychem Cable Protection | 2 | 105 ░C | -55 °C | Polyester | Gold | Phosphor Bronze | 125 VDC | Black | 6 A | Housing/Shell (4-40) | DE E | 1 | Signal | Receptacle Female Sockets | D-Sub | UL94 V-0 | Solder | 9 | Through Hole | 0.76 Ám | 30 Áin |
