043810 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 10POS 4.2MM

Part	Contact Length - Post	Number of Positions Loaded	Shrouding	Insulation Height	Number of Rows	Insulation Material	Features	Contact Finish Thickness - Mating	Material Flammability Rating	Connector Type	Fastening Type	Contact Finish - Mating	Contact Type	Contact Finish - Post	Contact Material	Mounting Type	Insulation Color	Style	Number of Positions	Row Spacing - Mating	Termination	Contact Shape	Pitch - Mating	Applications	Contact Finish Thickness - Post
Molex 0438100015	0.123 in	All	Shrouded - 4 Wall	0.591 in	2	Glass Filled Nylon 4/6 Polyamide (PA46)	Blind Mating Board Lock	30 µin	UL94 V-0	Header	Latch Holder	Gold	Male Pin	Tin	Brass	Right Angle Through Hole	Black	Board Board or Cable	10	0.165 in	Solder	Square	0.165 in	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0438100204	0.123 in	All	Shrouded - 4 Wall	0.591 in	2	Glass Filled Nylon 4/6 Polyamide (PA46)	Blind Mating	100 µin	UL94 V-0	Header	Latch Holder	Tin	Male Pin	Tin	Brass	Right Angle Through Hole	Black	Board Board or Cable	14	0.165 in	Solder	Square	0.165 in	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0438100336	0.123 in	All	Shrouded - 4 Wall	0.591 in	2	Glass Filled Nylon 4/6 Polyamide (PA46)	Blind Mating	100 µin	UL94 V-0	Header	Latch Holder	Tin	Male Pin	Tin	Brass	Right Angle Through Hole	Black	Board Board or Cable	14	0.165 in	Solder	Square	0.165 in	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0438100105	0.123 in	All	Shrouded - 4 Wall	0.591 in	2	Glass Filled Nylon 4/6 Polyamide (PA46)	Blind Mating Board Lock	30 µin	UL94 V-0	Header	Latch Holder	Gold	Male Pin	Tin	Brass	Right Angle Through Hole	Black	Board Board or Cable	14	0.165 in	Solder	Square	0.165 in	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0438100045	0.123 in	All	Shrouded - 4 Wall	0.591 in	2	Glass Filled Nylon 4/6 Polyamide (PA46)	Blind Mating Board Lock	100 µin	UL94 V-0	Header	Latch Holder	Tin	Male Pin	Tin	Brass	Right Angle Through Hole	Black	Board Board or Cable	4	0.165 in	Solder	Square	0.165 in	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0438100220	0.123 in	All	Shrouded - 4 Wall	0.591 in	2	Glass Filled Nylon 4/6 Polyamide (PA46)	Blind Mating	30 µin	UL94 V-0	Header	Latch Holder	Gold	Male Pin	Tin	Brass	Right Angle Through Hole	Black	Board Board or Cable	24 pos	0.165 in	Solder	Square	0.165 in	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0438100013	0.123 in	All	Shrouded - 4 Wall	0.591 in	2	Glass Filled Nylon 4/6 Polyamide (PA46)	Blind Mating Board Lock	30 µin	UL94 V-0	Header	Latch Holder	Gold	Male Pin	Tin	Brass	Right Angle Through Hole	Black	Board Board or Cable	6	0.165 in	Solder	Square	0.165 in	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0438100369	0.123 in	All	Shrouded - 4 Wall	0.591 in	2	Glass Filled Nylon 4/6 Polyamide (PA46)	Blind Mating Board Lock	30 µin	UL94 V-0	Header	Latch Holder	Gold	Male Pin	Tin	Brass	Right Angle Through Hole	Black	Board Board or Cable	14	0.165 in	Solder	Square	0.165 in	General Purpose Industrial Medical Telecommunications	100 Ąin
Molex 0438100342	0.123 in	All	Shrouded - 4 Wall	0.591 in	2	Glass Filled Nylon 4/6 Polyamide (PA46)	Blind Mating	30 µin	UL94 V-0	Header	Latch Holder	Gold	Male Pin	Tin	Brass	Right Angle Through Hole	Black	Board Board or Cable	4	0.165 in	Solder	Square	0.165 in	General Purpose Industrial Medical Telecommunications	100 Ąin

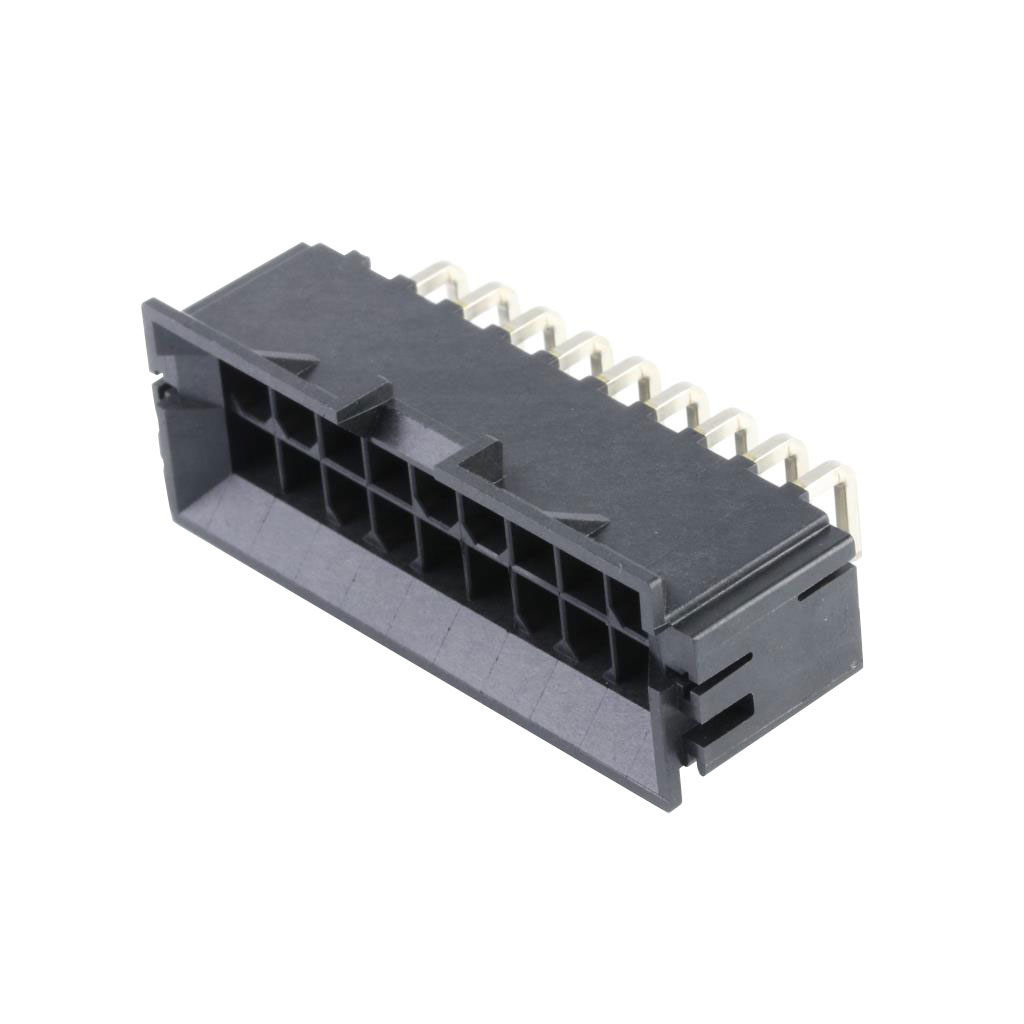

Molex 0438100349	0.123 in	All	Shrouded - 4 Wall	0.591 in	2	Glass Filled Nylon 4/6 Polyamide (PA46)	Blind Mating	30 µin	UL94 V-0	Header	Latch Holder	Gold	Male Pin	Tin	Brass	Right Angle Through Hole	Black	Board Board or Cable	18	0.165 in	Solder	Square	0.165 in	General Purpose Industrial Medical Telecommunications	100 Ąin
