HPR1 Series

Catalog

DC DC CONVERTER 5V 1W

Part	Type	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output (Max)	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Voltage - Input (Max)	Number of Outputs	Applications	Efficiency	Voltage - Input (Min)	Voltage - Isolation	Mounting Type	Package Leads	Package Name	Voltage - Output 1	Power (Watts)	Current - Output (Max) Options	Voltage - Output 2	Package / Case
Murata Electronics HPR106C	Isolated Module	100 °C	-40 °C	150 mA	0.24 in	0.4 in	0.77 in	13.2 V	1	ITE (Commercial)	69 %	10.8 V	750 V	Through Hole	5 Leads	7-SIP	5 V	1 W
Murata Electronics HPR1023C	Isolated Module	65 °C	-25 °C		0.24 in	0.4 in	0.77 in	26.4 V	2	ITE (Commercial)	72 %	21.6 V	1000 Vrms	Through Hole	5 Leads	7-SIP	15 V	1 W	34mA	-15 V
Murata Electronics HPR112C	Isolated Module	100 °C	-40 °C	150 mA	0.24 in	0.4 in	0.77 in	16.5 V	1	ITE (Commercial)	69 %	13.5 V	750 V	Through Hole	5 Leads	7-SIP	5 V	1 W
Murata Electronics HPR102C	Isolated Module	85 °C	-25 °C	50 mA	0.24 in	0.4 in	0.77 in	5.5 V	1	ITE (Commercial)	71 %	4.5 V	750 V	Through Hole	5 Leads	6-SIP Module	15 V	1 W

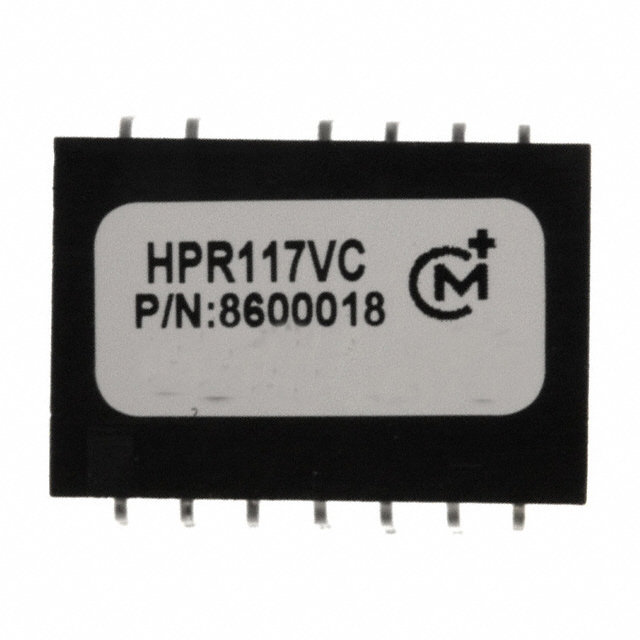

Murata Electronics HPR117VC	Isolated Module	100 °C	-40 °C	25 mA	0.53 in	0.38 in	0.79 in	16.5 V	2	ITE (Commercial)	79 %	13.5 V	750 V	Through Hole	13 Leads	14-DIP Module	15 V	1 W		-15 V
Murata Electronics HPR110C	Isolated Module	100 °C	-40 °C	30 mA	0.24 in	0.4 in	0.77 in	13.2 V	2	ITE (Commercial)	74 %	10.8 V	750 V	Through Hole	5 Leads	7-SIP	12 V	1 W		-12 V
Murata Electronics HPR100WC	Isolated Module	100 °C	-40 °C	150 mA	0.53 in	0.38 in	0.79 in	5.5 V	1	ITE (Commercial)	69 %	4.5 V	750 V	Surface Mount			5 V	1 W			14-SMD Module

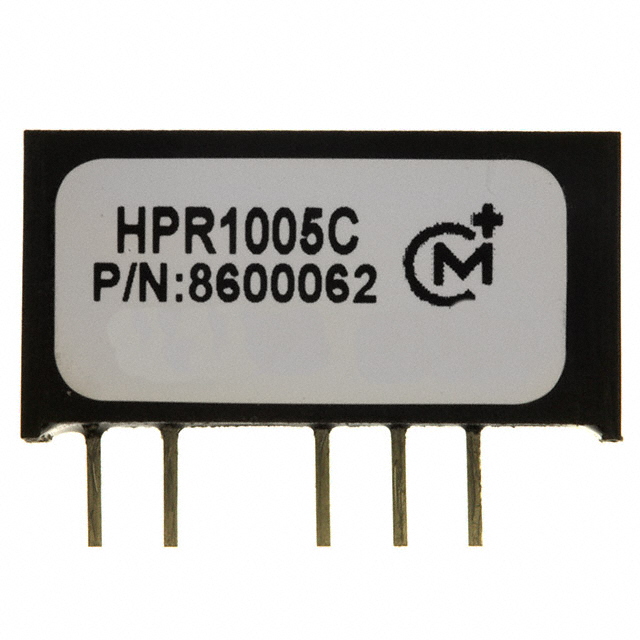

Murata Electronics HPR1005C	Isolated Module	65 °C	-25 °C		0.24 in	0.4 in	0.77 in	5.5 V	2	ITE (Commercial)	70 %	4.5 V	1000 Vrms	Through Hole	5 Leads	7-SIP	15 V	1 W	34mA	-15 V

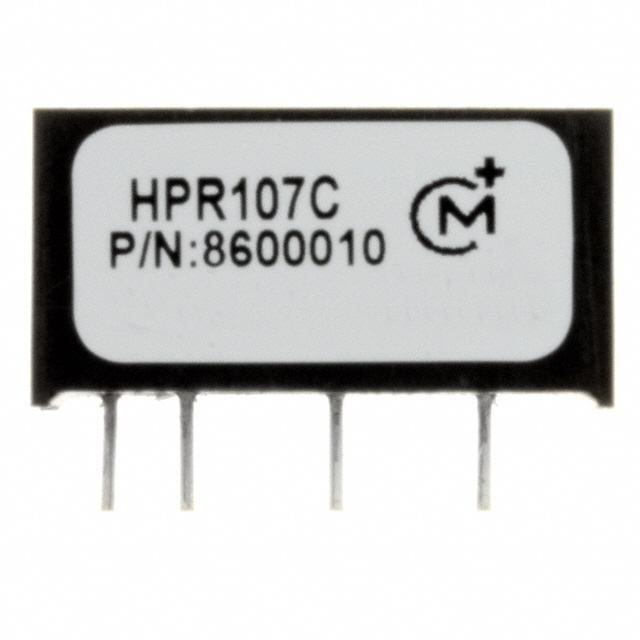

Murata Electronics HPR107C	Isolated Module	100 °C	-40 °C	62 mA	0.24 in	0.4 in	0.77 in	13.2 V	1	ITE (Commercial)	77 %	10.8 V	750 V	Through Hole	5 Leads	7-SIP	12 V	1 W
Murata Electronics HPR1000C	Isolated Module	65 °C	-25 °C	200 mA	0.24 in	0.4 in	0.77 in	5.5 V	1	ITE (Commercial)	68 %	4.5 V	1000 Vrms	Through Hole	5 Leads	7-SIP	5 V	1 W
