ATMEGA256 Series

Catalog

2.4GHZ 256K SOC IND125C T&R 64 VQFN 9X9X0.9MM T/R ROHS COMPLIANT: YES

Part	Sensitivity	Operating Temperature (Max)	Operating Temperature (Min)	Type	Package Width	Package Name	Package Length	Memory Type	Memory Size (Flash)	Memory Size (SRAM)	Memory Size (ROM)	Current - Transmitting (Max)	Current - Transmitting (Min)	Modulation	Frequency	Serial Interfaces	Protocol	Mounting Type	RF Family/Standard	Data Rate (Max)	GPIO Count	Power - Output	Current - Receiving (Max)	Current - Receiving (Min)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package / Case	Current - Receiving	For Use With/Related Products	Supplied Contents	Utilized IC / Part	Contents
Microchip Technology ATMEGA256RFR2-ZFR	-100 dBm	125 °C	-40 °C	TxRx + MCU	9 mm	64-QFN	9 mm	EEPROM Flash SRAM	256 KB	32 kB	8 kB	14.5 mA	8 mA	DSSS O-QPSK	2.4 GHz	I2C JTAG SPI USART	Zigbee®	Surface Mount	802.15.4	2 MBaud	35	3.5 dBm	12.5 mA	5 mA	3.6 V	1.8 V	64-VFQFN Exposed Pad
Microchip Technology ATMEGA256RZAV-8AU	-101 dBm	85 °C	-40 °C	TxRx + MCU	14 mm	64-TQFP	14 mm	EEPROM Flash SRAM	256 KB	8 kB		16.5 mA	9.5 mA	O-QPSK	2.4 GHz	I2C JTAG SPI USART	6LoWPAN Zigbee®	Surface Mount	802.15.4	250 kBaud	54	3 dBm			3.6 V	1.8 V	64-TQFP	15.5 mA
Microchip Technology ATMEGA256RZBV-8CU	-101 dBm	85 °C	-40 °C	TxRx + MCU	9 mm	100-CBGA	9 mm	EEPROM Flash RAM	256 KB			16.5 mA	9.5 mA	O-QPSK	2.4 GHz	I2C JTAG SPI USART	6LoWPAN Zigbee®	Surface Mount	802.15.4	250 kBaud	86	3 dBm			3.6 V	1.8 V	100-TFBGA	15.5 mA
Microchip Technology ATMEGA256RFR2-ZUR	-100 dBm	85 °C	-40 °C	TxRx + MCU	9 mm	64-QFN	9 mm	EEPROM Flash SRAM	256 KB	32 kB	8 kB	14.5 mA	8 mA	DSSS O-QPSK	2.4 GHz	I2C JTAG SPI USART	Zigbee®	Surface Mount	802.15.4	2 MBaud	35	3.5 dBm	12.5 mA	5 mA	3.6 V	1.8 V	64-VFQFN Exposed Pad

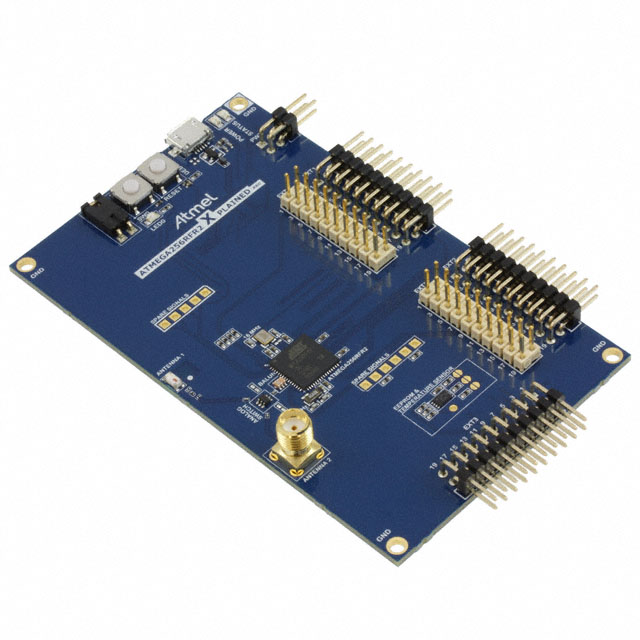

Microchip Technology ATMEGA256RFR2-XPRO				802.15.4 (ZigBee®) Transceiver											2.4 GHz														ATmega256RFR2	Board(s)	ATmega256RFR2	Board

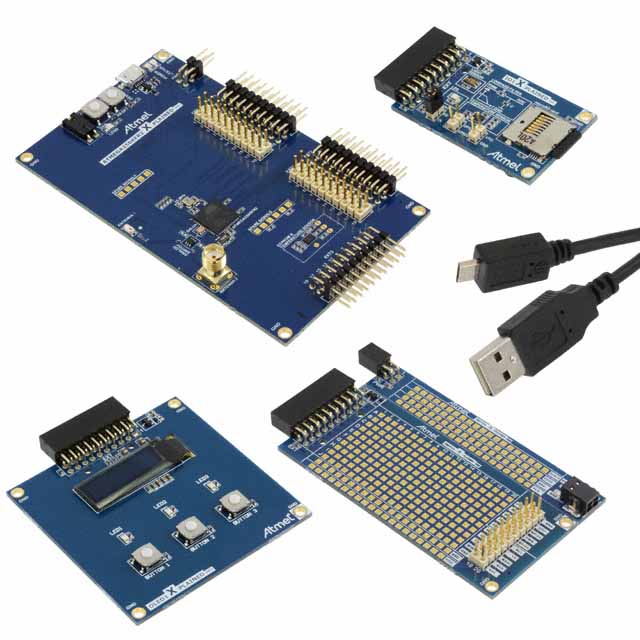

Microchip Technology ATMEGA256RFR2-XSTK				802.15.4 (ZigBee®) Transceiver											2.4 GHz														ATmega256RFR2	Board(s) Cable(s)	ATmega256RFR2	Board Cable
Microchip Technology ATMEGA256RFR2-ZF	-100 dBm	125 °C	-40 °C	TxRx + MCU	9 mm	64-QFN	9 mm	EEPROM Flash SRAM	256 KB	32 kB	8 kB	14.5 mA	8 mA	DSSS O-QPSK	2.4 GHz	I2C JTAG SPI USART	Zigbee®	Surface Mount	802.15.4	2 MBaud	35	3.5 dBm	12.5 mA	5 mA	3.6 V	1.8 V	64-VFQFN Exposed Pad
Microchip Technology ATMEGA256RFR2-ZU	-100 dBm	85 °C	-40 °C	TxRx + MCU	9 mm	64-QFN	9 mm	EEPROM Flash SRAM	256 KB	32 kB	8 kB	14.5 mA	8 mA	DSSS O-QPSK	2.4 GHz	I2C JTAG SPI USART	Zigbee®	Surface Mount	802.15.4	2 MBaud	35	3.5 dBm	12.5 mA	5 mA	3.6 V	1.8 V	64-VFQFN Exposed Pad
