776534 Series

Catalog

CONN RCPT HSG 2POS 4.50MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Connector Type	Mounting Type	Number of Positions	Color	Number of Rows	Pitch [x]	Pitch [x]	Contact Type	Contact Termination	Note
TE Connectivity Raychem Cable Protection 776534-2	125 °C	-40 °C	Locking Ramp	Receptacle	Free Hanging (In-Line)	2	Black	1	0.177 in	4.5 mm	Male Pin	Crimp	Contacts Not Included

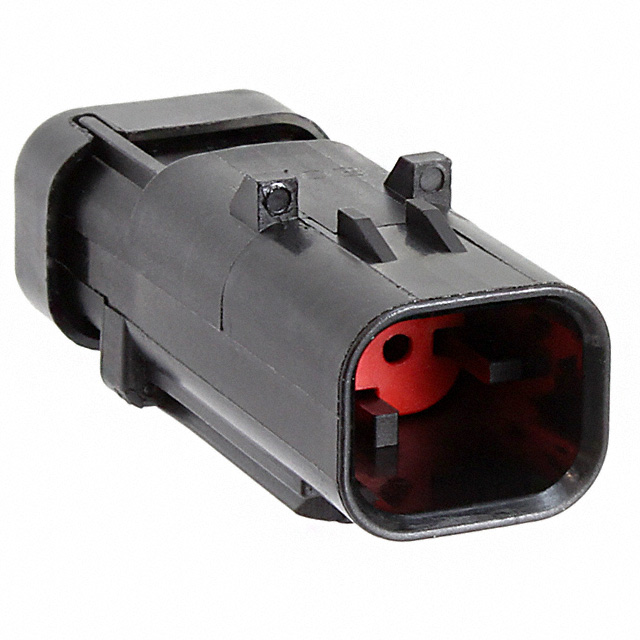

TE Connectivity Raychem Cable Protection 776534-1	125 °C	-40 °C	Locking Ramp	Receptacle	Free Hanging (In-Line)	2	Black	1	0.177 in	4.5 mm	Male Pin	Crimp	Contacts Not Included

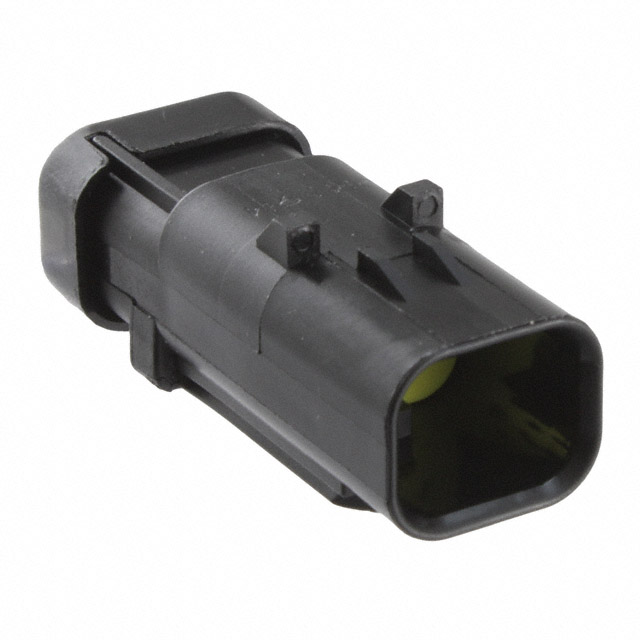

TE Connectivity Raychem Cable Protection 776534-3	125 °C	-40 °C	Locking Ramp	Receptacle	Free Hanging (In-Line)	2	Black	1	0.177 in	4.5 mm	Male Pin	Crimp	Contacts Not Included
