749813 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

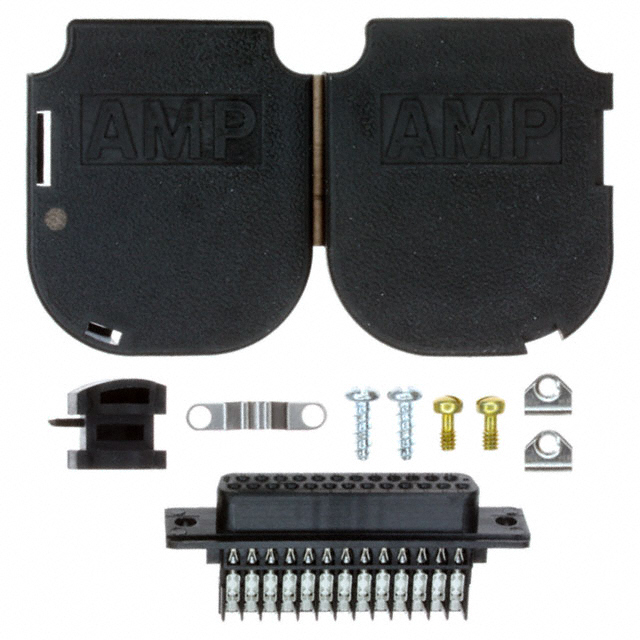

CONN D-SUB RCPT 25POS IDC
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Type | Contact Finish | Color | Voltage Rating | Number of Rows | Mounting Type | Contact Finish Thickness | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Current Rating (Amps) | Connector Style | Contact Material | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 22 AWG | 26 AWG | Signal | Gold | Black | 250 VDC | 2 | Free Hanging (In-Line) | Flash | Discrete Wire IDC | B DB | 3 | Receptacle Female Sockets | 105 ░C | -55 °C | UL94 V-0 | Varies by Wire Gauge | D-Sub | Phosphor Bronze | Housing/Shell (Unthreaded) |
