AMP MCP Hybrid Coax Series

Catalog

AUTOMOTIVE CONNECTOR CONTACT, MCON 1.2 SERIES, SOCKET, CRIMP, 15 AWG, 17 AWG

Part	Contact Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Finish	Contact Finish Thickness	Pin or Socket	Contact Type	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Color	Mounting Type	Fastening Type	Connector Type	Number of Rows	Insulation Material	Pitch	Type	Wire Gauge	Center Conductor Diameter	Cable Group	Contact Material
TE Connectivity AMP Connectors 1418850-1	Crimp	15 AWG	17 AWG	Tin	39.4 Ąin	Socket
TE Connectivity AMP Connectors 1418850-3	Crimp	15 AWG	17 AWG	Silver	78.7 µin	Socket
TE Connectivity AMP Connectors 2377861-2	Crimp						Tab	11	-40 °C	105 °C	Black	Free Hanging (In-Line)	Locking Ramp	Plug	4	Nylon 6/6 Polyamide (PA66)	0.157 in
TE Connectivity AMP Connectors 1670146-2	Crimp	18 AWG	20.5 AWG	Gold	31.5 µin	Socket												Stamped

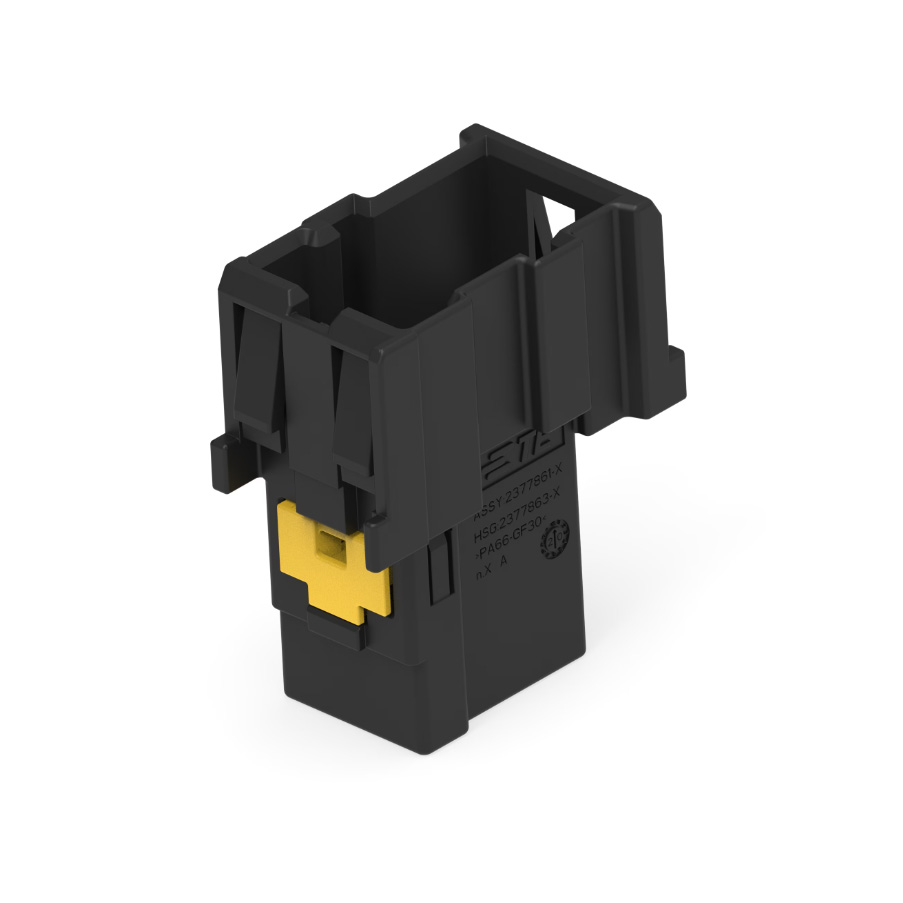

TE Connectivity AMP Connectors 2377861-1	Crimp						Tab	11	-40 °C	105 °C	Black	Free Hanging (In-Line)	Locking Ramp	Plug	4	Nylon 6/6 Polyamide (PA66)	0.157 in
TE Connectivity AMP Connectors 2377861-4	Crimp						Tab	11	-40 °C	105 °C	Black	Free Hanging (In-Line)	Locking Ramp	Plug	4	Nylon 6/6 Polyamide (PA66)	0.157 in
TE Connectivity AMP Connectors 2141114-3	Crimp	22 AWG	24 AWG	Silver	78.7 µin	Tab												Stamped

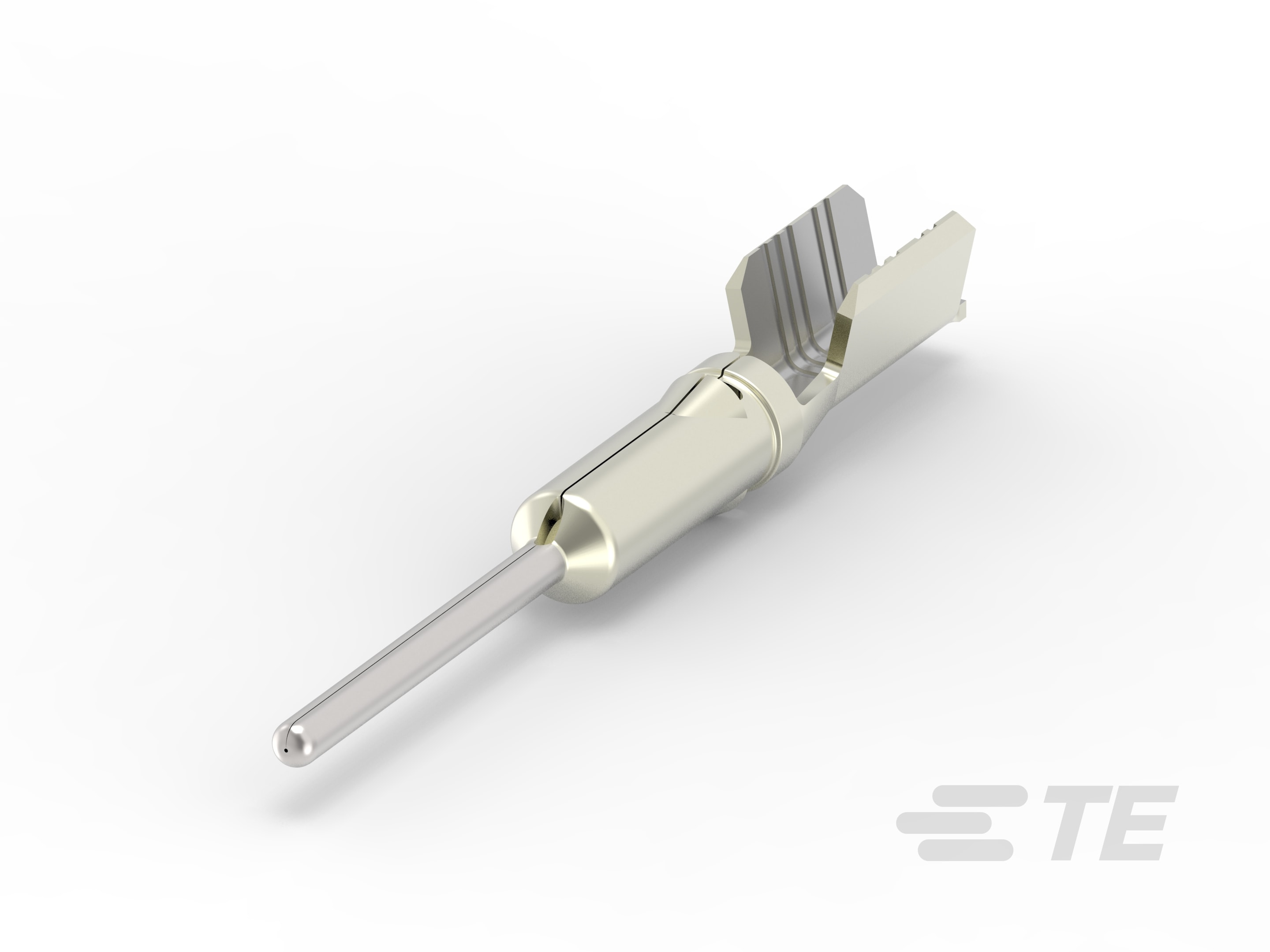

TE Connectivity AMP Connectors 2298508-1	Crimp			Silver	78.7 µin	Pin												Stamped	26 AWG
TE Connectivity AMP Connectors 1418850-3

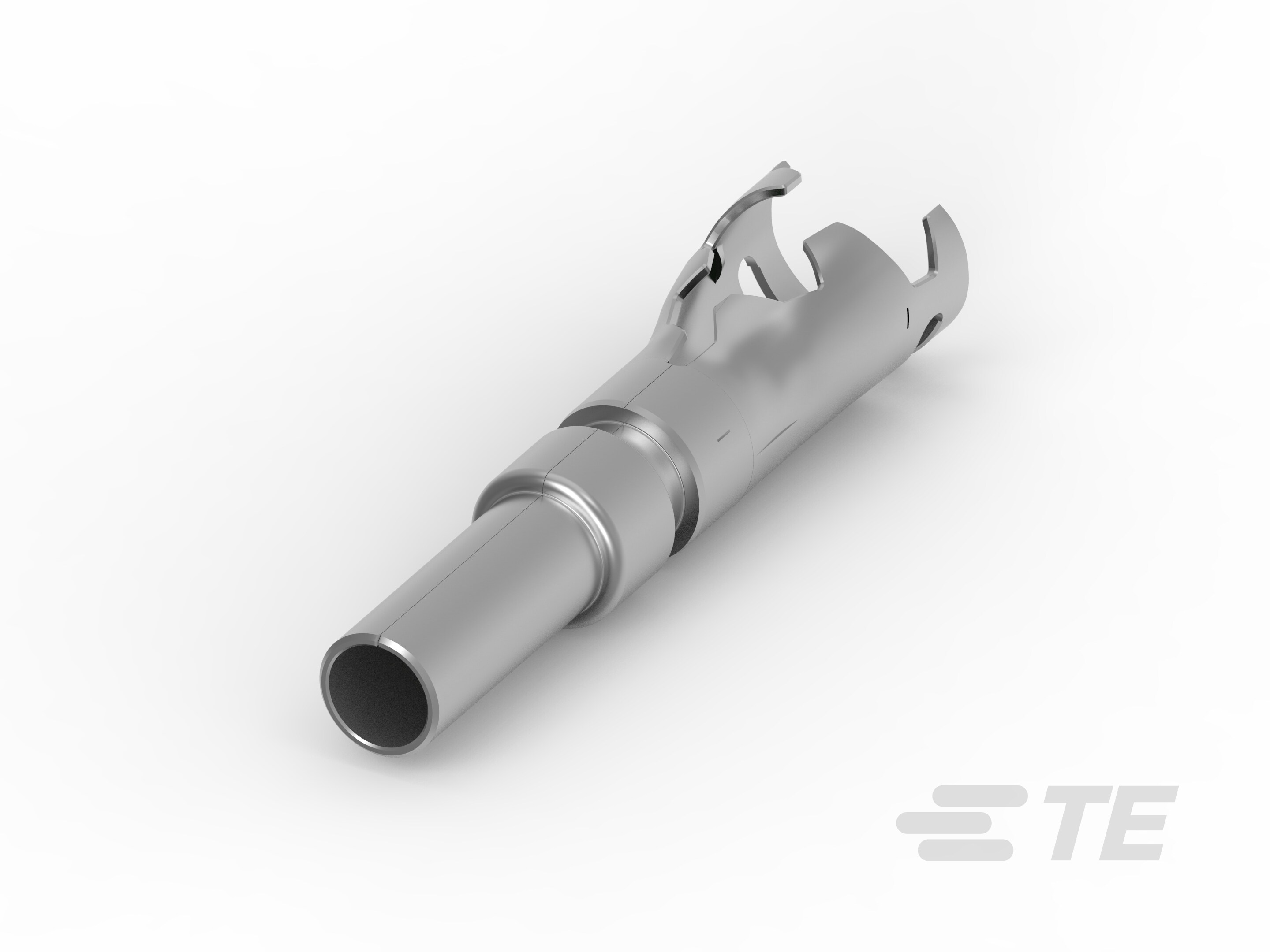

TE Connectivity AMP Connectors 2298123-1	Crimp			Tin	118.1 µin	Outer Contact Pin						Free Hanging (In-Line)						Coaxial	22 AWG	0.11 in	RTK 031	Copper Alloy
