747548 Series

Catalog

CONN D-SUB RCPT 25POS IDC

Part	Contact Material	Mounting Type	Flange Feature	Connector Type	Termination	Dielectric Material	Wire Gauge [Min]	Wire Gauge [Max]	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Connector Style	Contact Type	Current Rating (Amps)	Number of Rows	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Features	Contact Finish Thickness
TE Connectivity Raychem Cable Protection 747548-2	Phosphor Bronze	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Discrete Wire IDC	Thermoplastic	22 AWG	26 AWG	Black	B DB	3	250 VDC	D-Sub	Signal	Varies by Wire Gauge	2	UL94 V-0	0.76 Ám	30 Áin	105 ░C	-55 °C	Gold	Backshell Shielded

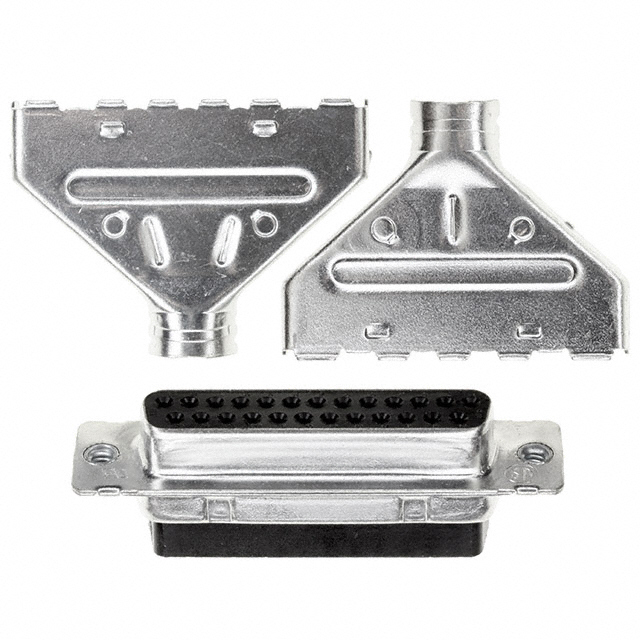

TE Connectivity Raychem Cable Protection 747548-9	Phosphor Bronze	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Discrete Wire IDC	Thermoplastic	22 AWG	26 AWG	Black	B DB	3	250 VDC	D-Sub	Signal	Varies by Wire Gauge	2	UL94 V-0			105 ░C	-55 °C	Gold	Backshell Shielded	Flash
TE Connectivity Raychem Cable Protection 747548-5	Phosphor Bronze	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	Receptacle Female Sockets	Discrete Wire IDC	Thermoplastic	22 AWG	26 AWG	Black	B DB	3	250 VDC	D-Sub	Signal	Varies by Wire Gauge	2	UL94 V-0			105 ░C	-55 °C	Gold	Backshell Shielded	Flash
