RT0W01419 Series

Catalog

SQUARE FLANGE RECEPTACLE, MALE,

Part	Fastening Type	Contact Shape	Note	Type	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Insert Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Housing Color	Shell Finish	Orientation	Contact Size	Material Flammability Rating	Mounting Feature	Connector Type	Shell Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Features	Shielding	Mounting Type	Applications	Contact Finish - Mating	Termination	Contact Material	Current Rating	Contact Finish Thickness - Mating	Voltage Rating	Primary Material	Color	Includes	Includes Total Count
McGill Microwave Systems RT0W01419PNHEC	Bayonet Lock	Circular	Contacts Not Included	For Male Pins	Dust Tight Waterproof	IP67	19	Thermoplastic	-40 °C	105 °C	Crimp	Silver	Nickel	N (Normal)	20	UL94 V-0	Flange	Receptacle Housing	Zinc Alloy	19	14 S	Backshell	Shielded	Panel Mount
McGill Microwave Systems RT0W01419PNH	Bayonet Lock	Circular	Contacts Not Included	For Male Pins	Dust Tight Waterproof	IP67	19	Thermoplastic	-40 °C	105 °C	Crimp	Silver	Nickel	N (Normal)	20	UL94 V-0	Flange	Receptacle Housing	Zinc Alloy	19	14 S		Shielded	Panel Mount
McGill Microwave Systems RT0W01419PKNH03-K	Bayonet Lock				Dust Tight Water Resistant Waterproof	IP67 IP69K	19	Nylon 6/6 PA66 Polyamide	-40 °C	105 °C			Nickel	N (Normal)		UL94 V-0	Flange	Male Pins Receptacle	Zinc Die Cast	19	14 S		Shielded	Panel Mount	Aerospace Automation Industrial Telecom Transportation	Gold	Crimp	Brass	5 A	Flash	250 V	Metal	Silver
McGill Microwave Systems RT0W01419SNHEC03	Bayonet Lock			For Female Sockets	Dust Tight Waterproof	IP67	19				Crimp	Silver	Nickel	N (Normal)	20	UL94 V-0	Flange	Receptacle Housing	Zinc Alloy	19	14 S	Backshell	Unshielded	Free Hanging (In-Line) Panel Mount								Metal
McGill Microwave Systems RT0W01419PNHEC03	Bayonet Lock			For Male Pins	Dust Tight Waterproof	IP67	19				Crimp	Silver	Nickel	N (Normal)	20	UL94 V-0	Flange	Receptacle Housing	Zinc Alloy	19	14 S	Backshell	Unshielded	Free Hanging (In-Line) Panel Mount								Metal
McGill Microwave Systems RT0W01419SNHEC	Bayonet Lock	Circular	Contacts Not Included	For Female Sockets	Dust Tight Waterproof	IP67	19	Thermoplastic	-40 °C	105 °C	Crimp	Silver	Nickel	N (Normal)	20	UL94 V-0	Flange	Receptacle Housing	Zinc Alloy	19	14 S	Backshell	Shielded	Panel Mount

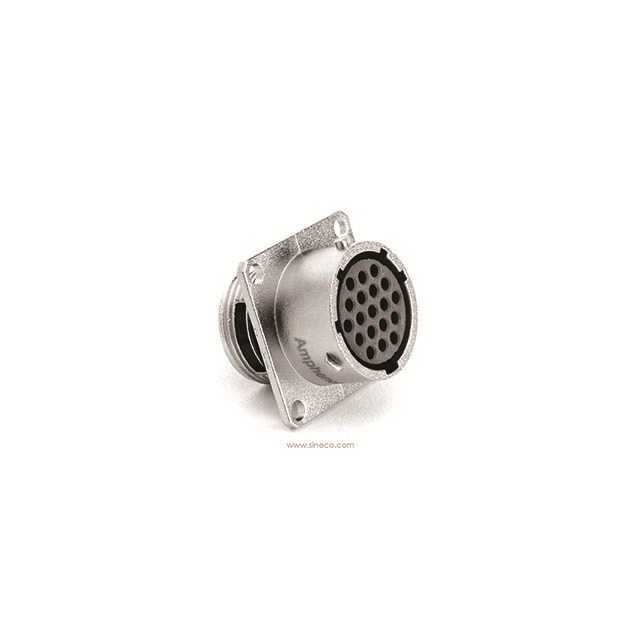

McGill Microwave Systems RT0W01419SNH03	Bayonet Lock	Circular	Contacts Not Included	For Female Sockets	Dust Tight Waterproof	IP67	19	Thermoplastic	-40 °C	125 °C	Crimp	Silver	Nickel	N (Normal)	20	UL94 V-0	Flange	Receptacle Housing	Zinc Alloy	19	14 S		Shielded	Panel Mount										Connector Gasket O-Ring	3 pcs
McGill Microwave Systems RT0W01419SKNH03-K	Bayonet Lock				Dust Tight Water Resistant Waterproof	IP67 IP69K	19	Nylon 6/6 PA66 Polyamide	-40 °C	105 °C			Nickel	N (Normal)		UL94 V-0	Flange	Female Sockets Receptacle	Zinc Die Cast	19	14 S		Shielded	Panel Mount	Aerospace Automation Industrial Telecom Transportation	Gold	Crimp	Brass	5 A	Flash	250 V	Metal	Silver
