CG2176 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K
EVAL BOARD FOR CG2176X3
| Part | Supplied Contents | For Use With/Related Products | Frequency Range 2 (Min) | Frequency Range 3 (Max) | Frequency Range 1 (Max) | Frequency Range 3 (Min) | Frequency Range 2 (Max) | Frequency Range 1 (Min) | Type | Utilized IC / Part | Contents | Impedance | Frequency Range (Min) | Frequency Range (Max) | Package Name | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Package / Case | RF Type | Circuit | Insertion Loss | Test Frequency | Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | Board(s) | CG2176X3 | 3.3 GHz | 5.85 GHz | 2.7 GHz | 4.9 GHz | 3.8 GHz | 2.3 GHz | SPDT Switch | CG2176X3 | Board | ||||||||||||||

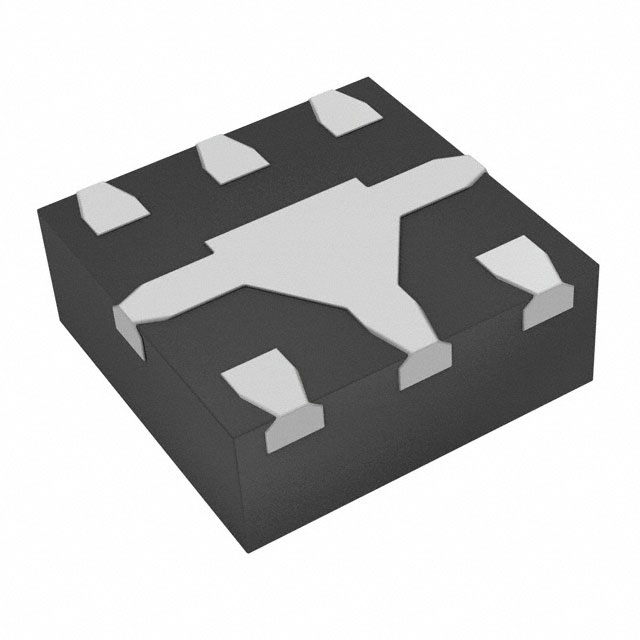

 Renesas Electronics Corporation | 50 Ohm | 2.3 GHz | 5.85 GHz | 6-TSON | -45 °C | 85 °C | 1.8 V | 5 V | 6-XFDFN Exposed Pad | 802.11a ac b g n | SPDT | ||||||||||||||

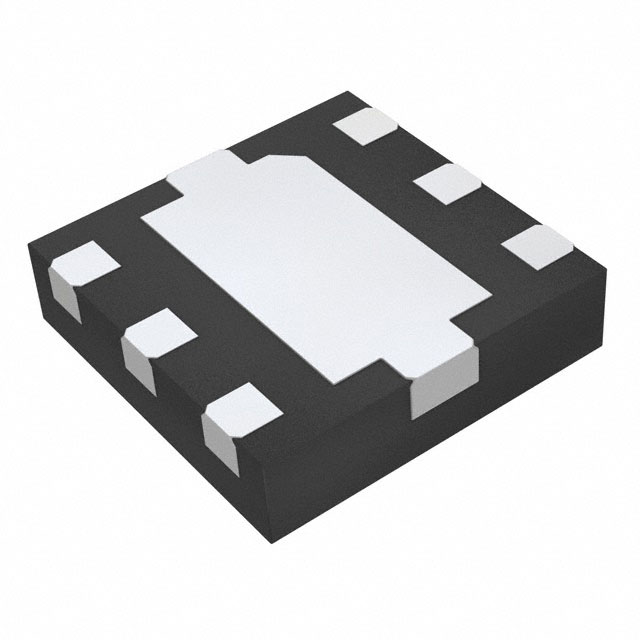

 Renesas Electronics Corporation | 50 Ohm | 2.3 GHz | 5.85 GHz | 6-TSON | -45 °C | 85 °C | 1.8 V | 5 V | 6-XFDFN Exposed Pad | 802.11a ac b g n | SPDT | 0.55 dB | 5.85 GHz | 22 dB |
