62787 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

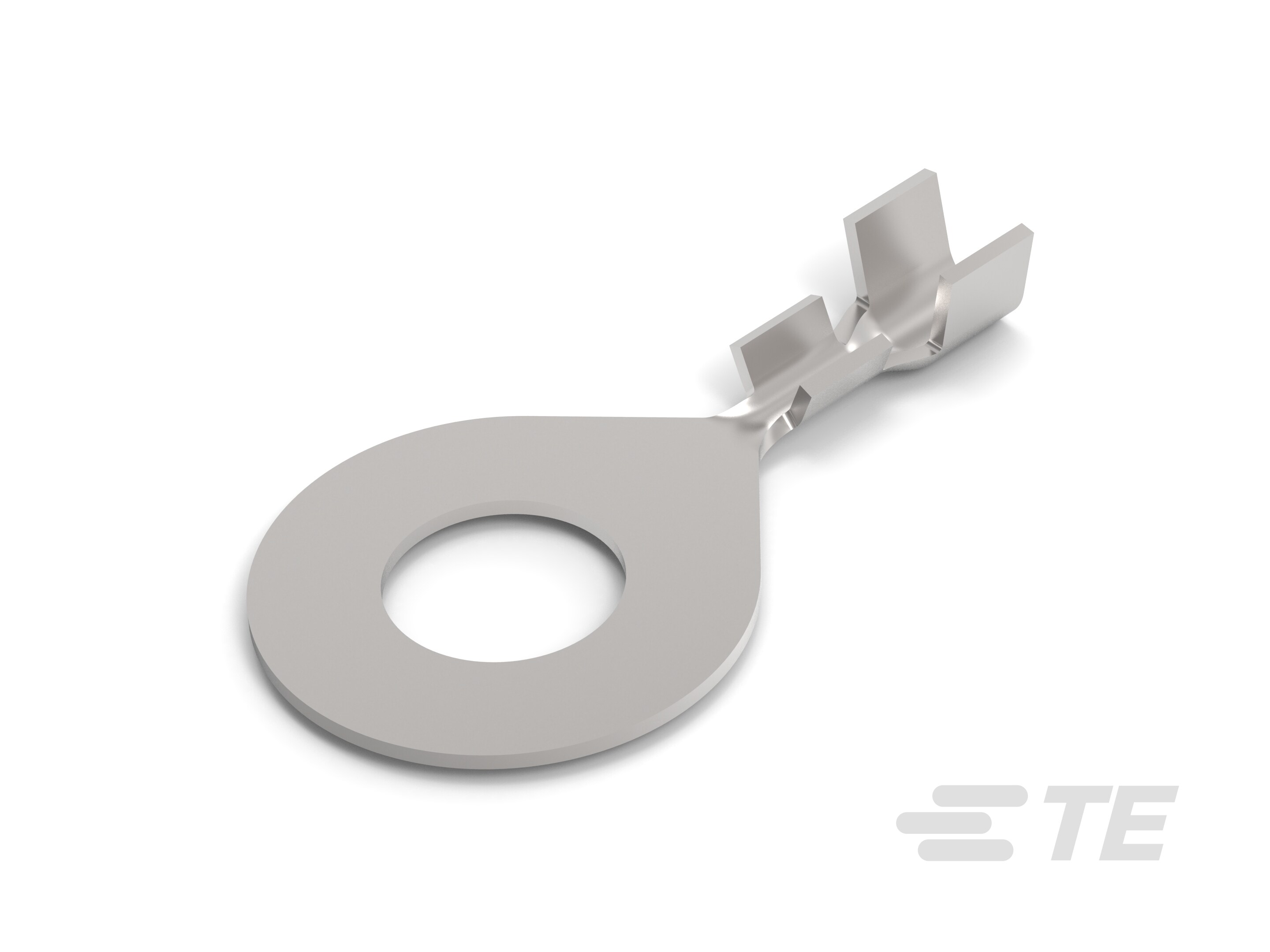

RING 18-14 328 0245 SST ROHS COMPLIANT: YES
| Part | Insulation Diameter (Min) | Insulation Diameter (Max) | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Termination | Thickness | Terminal Type | Length - Overall | Stud/Tab Size | Stud/Tab Size (Type) | Stud/Tab Size | Insulation | Width - Outer Edges | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.09 in | 0.145 in | 18 AWG | 14 AWG | Crimp | 0.025 in | Circular | 1.245 in | 0.3125 in | Stud | 16 Stud 5 Stud | Non-Insulated | 0.687 in | Free Hanging (In-Line) | Steel |
