AD9480 Series

8-Bit, 250 MSPS, 3.3 V A/D Converter

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

8-Bit, 250 MSPS, 3.3 V A/D Converter

Part	Reference Type	Operating Temperature (Min)	Operating Temperature (Max)	Ratio - ADC	Ratio - S/H	Number of Inputs	Package Width	Package Name	Package Length	Architecture	Number of Bits	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Sampling Rate (Per Second)	Data Interface	Package / Case	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Configuration	Mounting Type	Input Type	Number of A/D Converters
Analog Devices Inc./Maxim Integrated AD9480ASUZ-250	External Internal	-40 °C	85 °C	1	1	1	10 mm	44‑TQFP	10 mm	Pipelined	8 bits	3 V	3.6 V	250 MHz	LVDS - Parallel	44-TQFP	3.6 V	3 V	S/H-ADC	Surface Mount	Differential Single Ended	1 count
Analog Devices Inc./Maxim Integrated AD9480BSUZ-250	External Internal	-40 °C	85 °C	1	1	1	10 mm	44‑TQFP	10 mm	Pipelined	8 bits	3 V	3.6 V	250 MHz	LVDS - Parallel	44-TQFP	3.6 V	3 V	S/H-ADC	Surface Mount	Differential Single Ended	1 count

Catalog

8-Bit, 250 MSPS, 3.3 V A/D Converter

Description

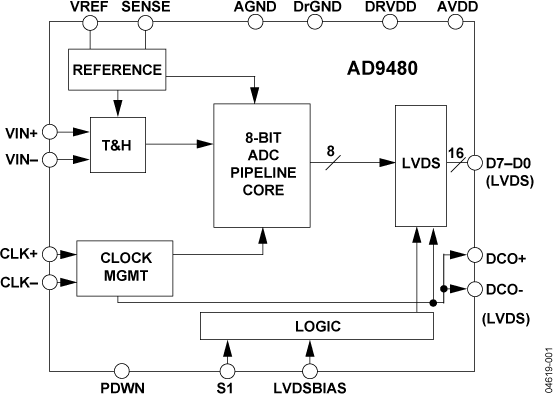

The AD9480 is an 8-bit monolithic analog-to-digital converter optimized for high speed, low power, small size, and ease of use. The product operates at a 250 MSPS conversion rate, with excellent linearity and dynamic performance over its full operating range.To minimize system cost and power dissipation, the AD9480 includes an internal reference and track-and-hold circuit. The user only provides a +3.3 V power supply and a differential encode clock. No external reference or driver components are required for many applications.The digital outputs are LVDS (ANSI 644) compatible with an option of twos complement or binary output format. The output data bits are provided in parallel fashion along with an LVDS output clock, which simplifies data capture.Fabricated on an advanced BiCMOS process, the AD9480 is available in a 44-pin surface mount package (TQFP) specified over the industrial temperature range (-40°C to +85°C).PRODUCT HIGHLIGHTSSuperior linearity. A DNL of ±0.25 makes the AD9480 suitable for instrumentation and measurement applications.Power-down mode. A power-down function may be exercised to bring total consumption down to 15 mW.LVDS outputs (ANSI-644). LVDS outputs simplify timing and improve noise performance.APPLICATIONSDigital oscilloscopesInstrumentation and measurementCommunications:Point-to-point radiosPredistortion loops
