Q-0A00F0 Series

Catalog

CBL ASSY BNC JACK TO PLUG 18"

Part	Cable Type	Frequency - Max	Style	Features	2nd Contact Gender	2nd Connector Mounting Type	1st Connector Mounting Type	Overall Impedance	Color	1st Connector Mounting Feature	2nd Connector	1st Contact Gender	Length	1st Connector	Length (ft)

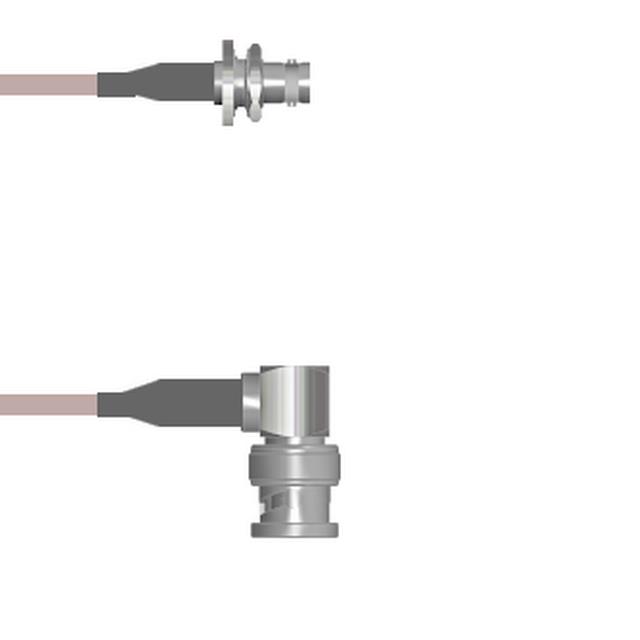

McGill Microwave Systems Q-0A00F000H018i	142 RG	4 GHz	BNC	Shielded	Male	Free Hanging (In-Line)	Panel Mount	50 Ohms	Copper	Bulkhead Front Side Nut	BNC Plug Right Angle	Female	18 in	BNC Jack
McGill Microwave Systems Q-0A00F000H1.5M	142 RG	4 GHz	BNC	Shielded	Male	Free Hanging (In-Line)	Panel Mount	50 Ohms	Copper	Bulkhead Front Side Nut	BNC Plug Right Angle	Female	59.1 in	BNC Jack	4.9 ft
McGill Microwave Systems Q-0A00F000H003M	142 RG	4 GHz	BNC	Shielded	Male	Free Hanging (In-Line)	Panel Mount	50 Ohms	Copper	Bulkhead Front Side Nut	BNC Plug Right Angle	Female	118.1 in	BNC Jack
McGill Microwave Systems Q-0A00F000H0.5M	142 RG	4 GHz	BNC	Shielded	Male	Free Hanging (In-Line)	Panel Mount	50 Ohms	Copper	Bulkhead Front Side Nut	BNC Plug Right Angle	Female	19.69 in	BNC Jack
McGill Microwave Systems Q-0A00F000H048i	142 RG	4 GHz	BNC	Shielded	Male	Free Hanging (In-Line)	Panel Mount	50 Ohms	Copper	Bulkhead Front Side Nut	BNC Plug Right Angle	Female	48 in	BNC Jack
McGill Microwave Systems Q-0A00F000H084i	142 RG	4 GHz	BNC	Shielded	Male	Free Hanging (In-Line)	Panel Mount	50 Ohms	Copper	Bulkhead Front Side Nut	BNC Plug Right Angle	Female	84 in	BNC Jack	7 ft
McGill Microwave Systems Q-0A00F000H.75M	142 RG	4 GHz	BNC	Shielded	Male	Free Hanging (In-Line)	Panel Mount	50 Ohms	Copper	Bulkhead Front Side Nut	BNC Plug Right Angle	Female	29.53 in	BNC Jack
McGill Microwave Systems Q-0A00F000H036i	142 RG	4 GHz	BNC	Shielded	Male	Free Hanging (In-Line)	Panel Mount	50 Ohms	Copper	Bulkhead Front Side Nut	BNC Plug Right Angle	Female	36 in	BNC Jack
McGill Microwave Systems Q-0A00F000H108i	142 RG	4 GHz	BNC	Shielded	Male	Free Hanging (In-Line)	Panel Mount	50 Ohms	Copper	Bulkhead Front Side Nut	BNC Plug Right Angle	Female	9 ft	BNC Jack
McGill Microwave Systems Q-0A00F000H072i	142 RG	4 GHz	BNC	Shielded	Male	Free Hanging (In-Line)	Panel Mount	50 Ohms	Copper	Bulkhead Front Side Nut	BNC Plug Right Angle	Female	72 in	BNC Jack
