CS35 Series

Catalog

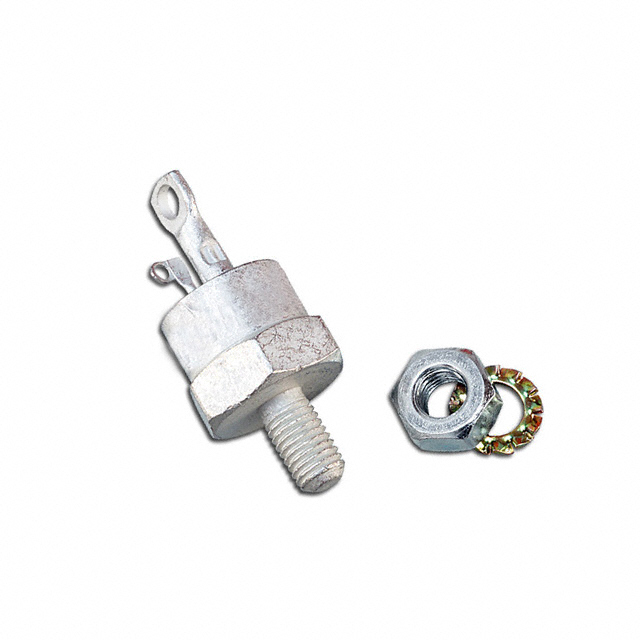

SCR 1.2KV 120A TO208AC

Part	Current - On State (Max)	Voltage - Gate Trigger (Vgt) (Max)	Current - Hold (Ih) (Max)	Current - On State (It (RMS)) (Max)	Current - Non Rep. Surge Type	Current - Non Rep. Surge Frequencies	Current - Non Rep. Surge (Itsm)	Operating Temperature (Max)	Operating Temperature (Min)	SCR Type	Package / Case	Mounting Type	Current - Off State (Max)	Package Name	Voltage - On State (Vtm) (Max)	Voltage - Off State	Current - Gate Trigger (Igt) (Max)
LITTELFUSE CS35-12IO4	69 A	1.5 V	80 mA	120 A	Itsm	50Hz 60Hz	1200 A 1340 A	125 °C	-40 °C	Standard Recovery	Stud TO-208AC TO-65-3	Chassis Stud Mount	10 mA	TO-208AC (TO-65)	1.5 V	1200 kV	100 mA
LITTELFUSE CS35-08IO4	69 A	1.5 V	80 mA	120 A	Itsm	50Hz 60Hz	1200 A 1340 A	125 °C	-40 °C	Standard Recovery	Stud TO-208AC TO-65-3	Chassis Stud Mount	10 mA	TO-208AC (TO-65)	1.5 V	800 V	100 mA
