17-3002 Series

Catalog

FIBER OPTIC CONNECTORS SM IP67 DPLX LC PLUG KIT PLSTIC W/CAP

Part	Ferrule Material	Body Material	Housing Material	Operating Temperature (Min)	Operating Temperature (Max)	Connector Style	Simplex/Duplex	Fastening Type	Connector Type	Boot Color	Mounting Type	Features	Housing Color	Cable Diameter	Ingress Protection Description	Ingress Protection IP Rating	Mode	Material Flammability Rating	Convert From (Adapter End)	Color	Convert To (Adapter End)	Type
McGill Microwave Systems 17-300200	Brass Nickel Plated	PEI Polyether Imide	Polyester	-40 °C	85 °C	LC	Duplex	Bayonet Lock	Plug	Black	Free Hanging (In-Line)	Protective Cap Strain Relief	Blue	8 mm	Dust Tight Waterproof	IP67	Singlemode

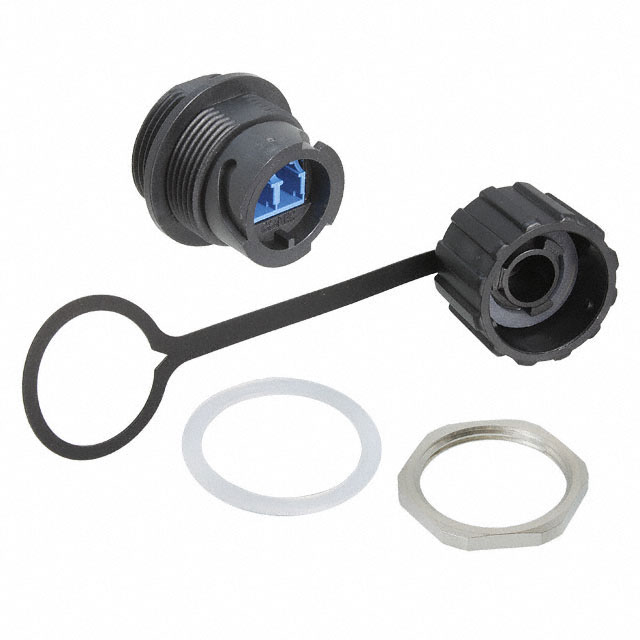

McGill Microwave Systems 17-300230	Ceramic		Polyester	-40 °C	85 °C		Duplex				Bulkhead Panel Mount				Dust Tight Waterproof	IP67	Singlemode	UL94 V-0	LC Receptacle	Black	LC Receptacle	Coupler
McGill Microwave Systems 17-300220	Brass Nickel Plated	PEI Polyether Imide	Polyester	-40 °C	85 °C	LC	Duplex	Bayonet Lock	Plug	Black	Free Hanging (In-Line)	Angle Polished Protective Cap Strain Relief	Green	8 mm	Dust Tight Waterproof	IP67	Singlemode
McGill Microwave Systems 17-300210	Brass Nickel Plated	PEI Polyether Imide	Polyester	-40 °C	85 °C	LC	Duplex	Bayonet Lock	Plug	Black	Free Hanging (In-Line)	Protective Cap Strain Relief	Beige	8 mm	Dust Tight Waterproof	IP67	Multimode
McGill Microwave Systems 17-300250	Ceramic		Polyester	-40 °C	85 °C		Duplex				Bulkhead Panel Mount	Angle Polished			Dust Tight Waterproof	IP67	Singlemode	UL94 V-0	LC Receptacle	Black	LC Receptacle	Coupler

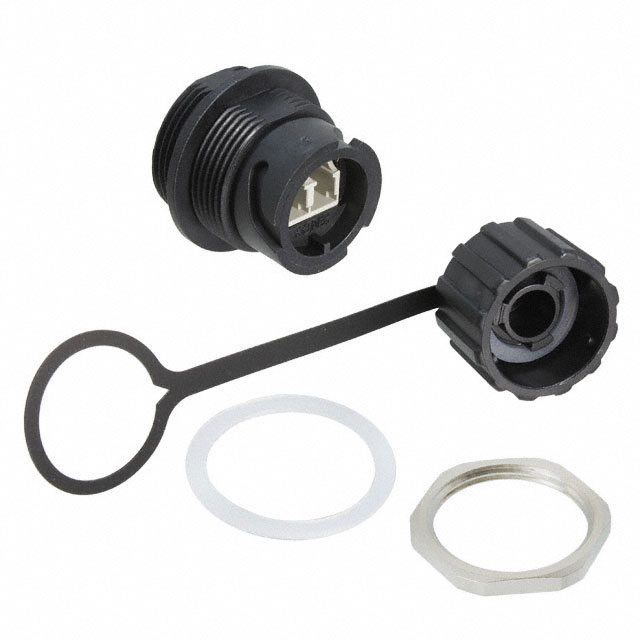

McGill Microwave Systems 17-300240	Phosphor Bronze		Polyester	-40 °C	85 °C		Duplex				Bulkhead Panel Mount				Dust Tight Waterproof	IP67	Multimode	UL94 V-0	LC Receptacle	Black	LC Receptacle	Coupler
