CMB1825 Series

Catalog

XLAMP CMB LED WHITE PRO9

Part	Light Emitting Surface (LES) Diameter	CCT (K)	Temperature - Test	Type	CRI (Color Rendering Index)	Height	Voltage - Forward (Vf) (Typ)	Size / Dimension Width	Size / Dimension Length	Viewing Angle	Current - Test	Current - Max	Configuration	Lens Type	Color	CCT Description	Luminous Flux	Lumens/Watt
CreeLED, Inc. CMB1825-R096-00PN0U0A40G	12 mm	4000 K	85 °C	Chip On Board (COB)	90	1.75 mm	34 V	17.85 mm	17.85 mm	115 °	700 mA	1.8 A	Square	Flat	Neutral White
CreeLED, Inc. CMB1825-R096-00PN0Z0A40H	12 mm	4000 K	85 °C	Chip On Board (COB)	95	1.75 mm	34 V	17.85 mm	17.85 mm	115 °	700 mA	1.8 A	Square	Flat	Neutral White
CreeLED, Inc. CMB1825-0000-000N0U0A30U	12 mm	3000 K	85 °C	Chip On Board (COB)	90	1.75 mm	34 V	17.85 mm	17.85 mm	115 °	700 mA	1.8 A	Square	Flat	Warm White	3-Step MacAdam Ellipse	2973 lm	125 lm/W

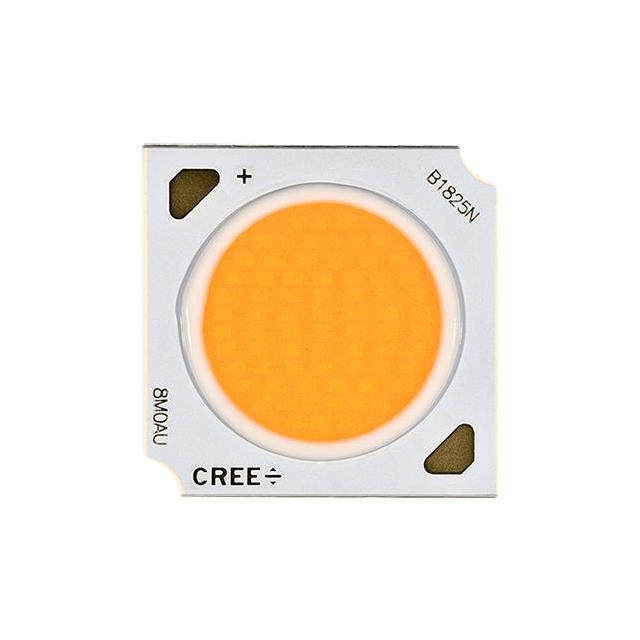

CreeLED, Inc. CMB1825-R096-000N0H0A30G	12 mm	3000 K	85 °C	Chip On Board (COB)	80	1.75 mm	34 V	17.85 mm	17.85 mm	115 °	700 mA	1.8 A	Square	Flat	Warm White	3-Step MacAdam Ellipse	3636 lm	153 lm/W
CreeLED, Inc. CMB1825-R096-00PN0U0A35H	12 mm	3500 K	85 °C	Chip On Board (COB)	90	1.75 mm	34 V	17.85 mm	17.85 mm	115 °	700 mA	1.8 A	Square	Flat	Warm White
CreeLED, Inc. CMB1825-R096-00PN0Z0A27H	12 mm	2700 K	85 °C	Chip On Board (COB)	95	1.75 mm	34 V	17.85 mm	17.85 mm	115 °	700 mA	1.8 A	Square	Flat	Warm White
CreeLED, Inc. CMB1825-R096-00PN0U0A50G	12 mm	5000 K	85 °C	Chip On Board (COB)	90	1.75 mm	34 V	17.85 mm	17.85 mm	115 °	700 mA	1.8 A	Square	Flat	Cool White
CreeLED, Inc. CMB1825-R096-00PN0U0A40H	12 mm	4000 K	85 °C	Chip On Board (COB)	90	1.75 mm	34 V	17.85 mm	17.85 mm	115 °	700 mA	1.8 A	Square	Flat	Neutral White
CreeLED, Inc. CMB1825-R096-000N0H0A30G	12 mm	3000 K	85 °C	Chip On Board (COB)	80	1.75 mm	34 V	17.85 mm	17.85 mm	115 °	700 mA	1.8 A	Square	Flat	Warm White	3-Step MacAdam Ellipse	3636 lm	153 lm/W
CreeLED, Inc. CMB1825-0000-000N0U0A27G	12 mm	2700 K	85 °C	Chip On Board (COB)	90	1.75 mm	34 V	17.85 mm	17.85 mm	115 °	700 mA	1.8 A	Square	Flat	Warm White	3-Step MacAdam Ellipse	3040 lm	128 lm/W
