MS3100A20 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

MIL-5015 MS/AC THREADED RECEPT

Part	Grade	Qualification	Current Rating Options	Shell Finish	Number of Positions	Shielding	Applications	Mounting Type	Termination	Voltage Rating (AC)	Voltage Rating (DC)	Contact Finish - Mating	Insert Material	Ingress Protection	Fastening Type	Shell Material	Orientation	Contact Material	Shell Size - Insert Width	Shell Size - Insert Length	Connector Type	Primary Material	Operating Temperature (Max)	Operating Temperature (Min)	Color	Mounting Feature	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Current Rating	Features
Amphenol Aerospace Operations MS3100A20-8S	Military	MIL-5015 MIL-DTL-5015	13A 46A	Cadmium Olive Drab Chromate	6	Unshielded	Marine Military	Panel Mount	Solder Cup	200 VAC	250 VDC	Silver	Neoprene	Environment Resistant	Threaded	Aluminum Alloy	N (Normal)	Copper Alloy	8 mm	20 mm	Female Sockets Receptacle	Metal	125 °C	-55 °C	Olive Drab	Flange

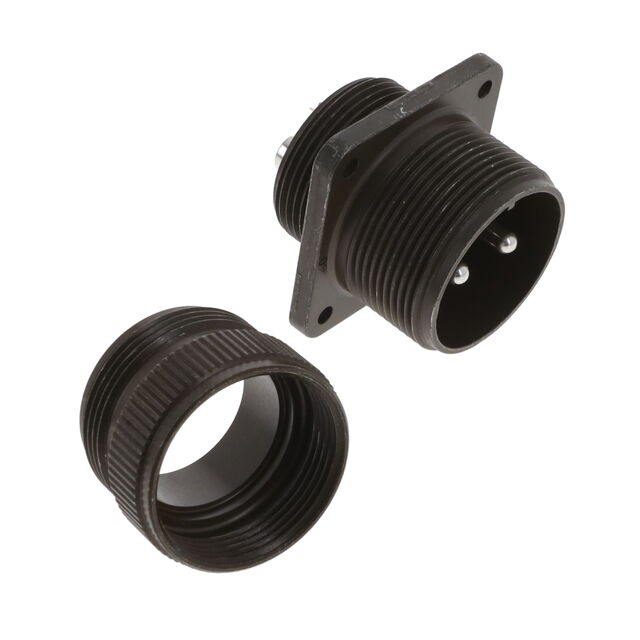

Amphenol Aerospace Operations MS3100A20-24P		MIL-5015	13A 46A	Cadmium Olive Drab Chromate	4	Unshielded	Marine Military	Panel Mount	Solder Cup	500 VAC	700 VDC	Silver	Neoprene	Environment Resistant	Threaded	Aluminum Alloy	N (Normal)	Copper Alloy			Male Pins Receptacle	Metal	125 °C	-55 °C	Olive Drab	Flange	20	24
Amphenol Aerospace Operations MS3100A20-15S	Military	MIL-5015 MIL-DTL-5015		Cadmium Olive Drab Chromate	7	Unshielded	Marine Military	Panel Mount	Solder Cup	500 VAC	700 VDC	Silver	Neoprene	Environment Resistant	Threaded	Aluminum Alloy	N (Normal)	Copper Alloy	15 mm	20 mm	Female Sockets Receptacle	Metal	125 °C	-55 °C	Olive Drab	Flange			23 A	Backshell
Amphenol Aerospace Operations MS3100A20-19S		MIL-5015		Cadmium Olive Drab Chromate	3	Unshielded	Marine Military	Panel Mount	Solder Cup	500 VAC	700 VDC	Silver	Neoprene	Environment Resistant	Threaded	Aluminum Alloy	N (Normal)	Copper Alloy	19 mm	20 mm	Female Sockets Receptacle	Metal	125 °C	-55 °C	Olive Drab	Flange			46 A
Amphenol Aerospace Operations MS3100A20-8P		MIL-5015	13A 46A	Cadmium Olive Drab Chromate	6	Unshielded	Marine Military	Panel Mount	Solder Cup	200 VAC	250 VDC	Silver	Neoprene	Environment Resistant	Threaded	Aluminum Alloy	N (Normal)	Copper Alloy	8 mm	20 mm	Male Pins Receptacle	Metal	125 °C	-55 °C	Olive Drab	Flange
Amphenol Aerospace Operations MS3100A20-7S		MIL-5015		Cadmium Olive Drab Chromate	8	Unshielded	Marine Military	Panel Mount	Solder Cup			Silver	Neoprene	Environment Resistant	Threaded	Aluminum Alloy	N (Normal)	Copper Alloy	7 mm	20 mm	Female Sockets Receptacle	Metal	125 °C	-55 °C	Olive Drab	Flange			13 A
Amphenol Aerospace Operations MS3100A20-15P	Military	MIL-5015 MIL-DTL-5015		Cadmium Olive Drab Chromate	7	Unshielded	Marine Military	Panel Mount	Solder Cup	500 VAC	700 VDC	Silver	Neoprene	Environment Resistant	Threaded	Aluminum Alloy	N (Normal)	Copper Alloy	15 mm	20 mm	Male Pins Receptacle	Metal	125 °C	-55 °C	Olive Drab	Flange			23 A
Amphenol Aerospace Operations MS3100A20-16S		MIL-5015	13A 23A	Cadmium Olive Drab Chromate	9	Unshielded	Marine Military	Panel Mount	Solder Cup	500 VAC	700 VDC	Silver	Neoprene	Environment Resistant	Threaded	Aluminum Alloy	N (Normal)	Copper Alloy	16 mm	20 mm	Female Sockets Receptacle	Metal	125 °C	-55 °C	Olive Drab	Flange
Amphenol Aerospace Operations MS3100A20-29S	Military	MIL-5015 MIL-DTL-5015		Cadmium Olive Drab Chromate	17	Unshielded	Marine Military	Panel Mount	Solder Cup	500 VAC	700 VDC	Silver	Neoprene	Environment Resistant	Threaded	Aluminum Alloy	N (Normal)	Copper Alloy			Female Sockets Receptacle	Metal	125 °C	-55 °C	Olive Drab	Flange	20	29	13 A
Amphenol Aerospace Operations MS3100A20-22P		MIL-5015	13A 46A	Cadmium Olive Drab Chromate	6	Unshielded	Marine Military	Panel Mount	Solder Cup	500 VAC	700 VDC	Silver	Neoprene	Environment Resistant	Threaded	Aluminum Alloy	N (Normal)	Copper Alloy			Male Pins Receptacle	Metal	125 °C	-55 °C	Olive Drab	Flange	20	22
