LMR-200 Series

Catalog

COAXIAL CABLES INDOOR CABLE, WHITE PVC JACKET

Part	Conductor Material	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Dielectric Diameter	Shield Material	Velocity of Propagation (VoP)	Cable Type	Jacket (Insulation) Diameter	Jacket (Insulation) Material	Jacket Color	Conductor Strand	Shield Type	Impedance	Length	Length	Usage	Features	Cable Group

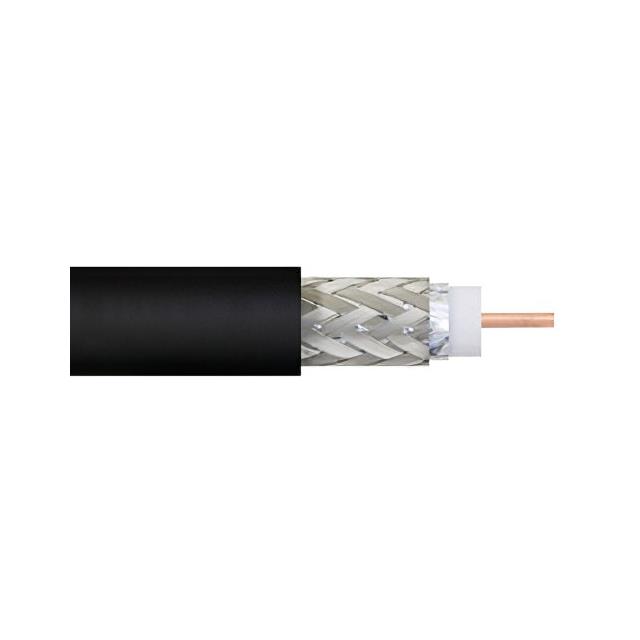

McGill Microwave Systems LMR-200-PVC-W	Bare Copper	-40 °C	85 °C	Foam Polyethylene (FPE)	0.116 in	Aluminum Copper Tinned	83 %	Coaxial	0.195 in	Poly-Vinyl Chloride (PVC)	White	Solid	Braid	50 Ohm
McGill Microwave Systems LMR-200-PVC	Bare Copper	-40 °C	85 °C	Foam Polyethylene (FPE)	0.116 in	Aluminum Copper Tinned	83 %	Coaxial	0.195 in	Poly-Vinyl Chloride (PVC)	Black	Solid	Braid	50 Ohm
McGill Microwave Systems LMR-200-MA	Bare Copper	-40 °C	85 °C	Foam Polyethylene (FPE)	0.116 in	Aluminum Copper Tinned	83 %	Coaxial	0.195 in	Poly-Vinyl Chloride (PVC)	Black	Solid	Braid	50 Ohm	500 ft	Enter Number of Feet in Order Quantity	Antenna
McGill Microwave Systems LMR-200-DB	Bare Copper	-40 °C	85 °C	Foam Polyethylene (FPE)	0.116 in	Aluminum Copper Tinned	83 %	Coaxial	0.195 in	Polyethylene (PE)	Black	Solid	Braid	50 Ohm	500 ft	Enter Number of Feet in Order Quantity		Direct Burial Watertight
McGill Microwave Systems LMR-200-UF	Bare Copper	-40 °C	85 °C	Foam Polyethylene (FPE)	0.116 in	Aluminum Copper Tinned	83 %	Coaxial	0.195 in	Thermoplastic Elastomer (TPE)	Black		Braid	50 Ohm	500 ft	Enter Number of Feet in Order Quantity
McGill Microwave Systems LMR-200-LSZH	Bare Copper	-40 °C	85 °C	Foam Polyethylene (FPE)	0.116 in	Aluminum Copper Tinned	83 %	Coaxial	0.195 in	Low Smoke Zero Halogen (LSZH) Polyethylene (PE)	Black	Solid	Braid	50 Ohm
McGill Microwave Systems LMR-200	Bare Copper	-40 °C	85 °C	Foam Polyethylene (FPE)	0.116 in	Aluminum Copper Tinned	83 %	Coaxial	0.195 in	Polyethylene (PE)	Black	Solid	Braid	50 Ohm	100 ft	Enter Number of Feet in Order Quantity			LMR-200
McGill Microwave Systems LMR-200-75	Bare Copper	-40 °C	85 °C	Foam Polyethylene (FPE)	0.116 in	Aluminum Copper Tinned	83 %	Coaxial	0.195 in	Polyethylene (PE)	Black	Solid	Braid Foil	75 Ohm
McGill Microwave Systems LMR-200-FR	Bare Copper	-40 °C	85 °C	Foam Polyethylene (FPE)	0.116 in	Aluminum Copper Tinned	83 %	Coaxial	0.195 in	Polyethylene (PE) Riser	Black	Solid	Braid	50 Ohm	500 ft	Enter Number of Feet in Order Quantity		Fire Retardant
McGill Microwave Systems LMR-200-LLPX	Bare Copper	-40 °C	125 °C	Polytetrafluoroethylene (PTFE)	0.118 in	Aluminum Copper Tinned	76 %	Coaxial Plenum	0.175 in	Fluoropolymer Plenum	Red	Solid	Braid	50 Ohm
