7015-09 Series

Catalog

CBL ASSY SMP-2.92MM JACK-PLUG 6"

Part	1st Contact Gender	Features	2nd Connector Diameter	2nd Connector	2nd Contact Gender	1st Connector	Length	Overall Impedance	2nd Connector Mounting Type	Frequency - Max	1st Connector Mounting Type	Style	Operating Temperature (Min)	Operating Temperature (Max)	Cable Type Size	Cable Type	Cable Diameter	Cable Outer Diameter	Color	1st Connector Size

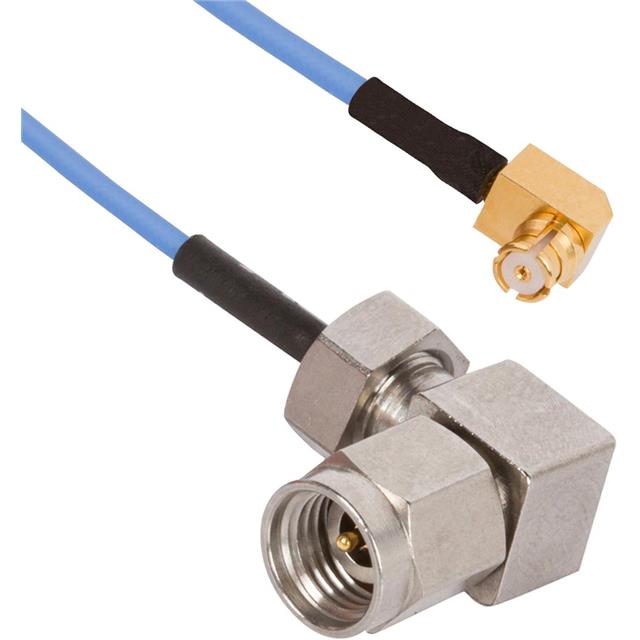

McGill Microwave Systems 7015-0992	Female	Shielded	2.92 mm	Plug Right Angle	Male	Right Angle SMP Jack	0.5 ft	50 Ohms	Free Hanging (In-Line)	26.5 GHz	Free Hanging (In-Line)	SMP to 2.92mm	-65 °C	165 °C	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Blue

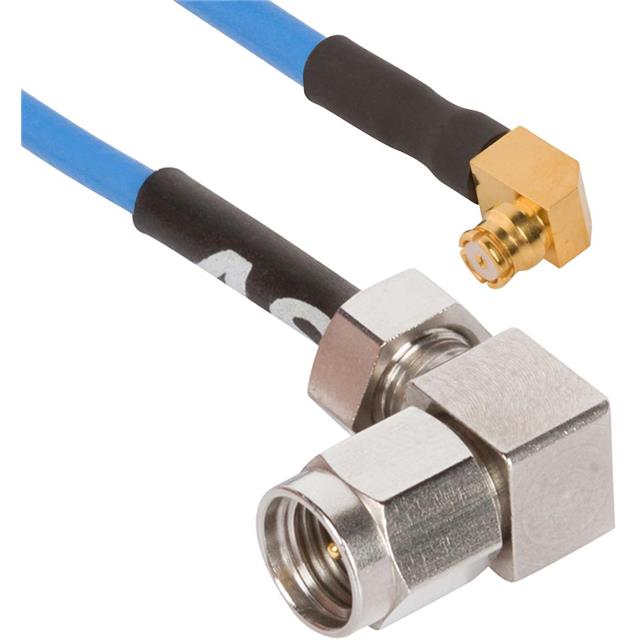

McGill Microwave Systems 7015-0995	Female	Shielded	2.92 mm	Plug Right Angle	Male	Right Angle SMP Jack	12 in	50 Ohms	Free Hanging (In-Line)	26.5 GHz	Free Hanging (In-Line)	SMP to 2.92mm	-65 °C	165 °C	405	TFlex			Blue

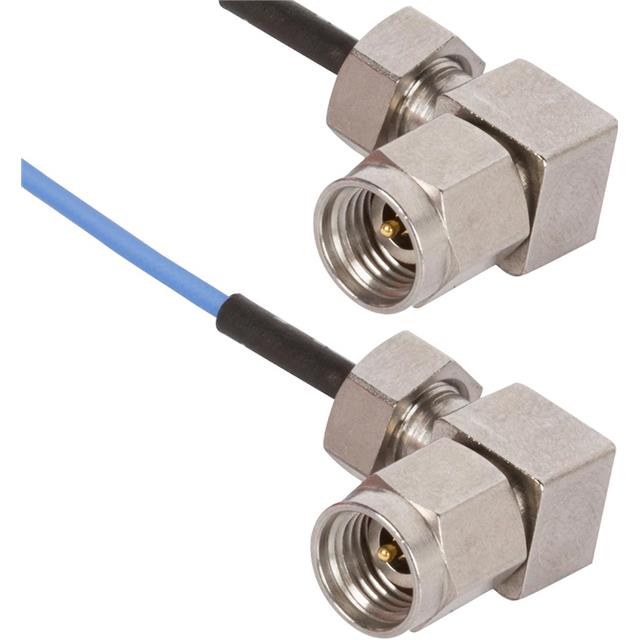

McGill Microwave Systems 7015-0991	Male	Shielded	2.92 mm	Plug Right Angle	Male	Plug Right Angle	12 in	50 Ohms	Free Hanging (In-Line)	40 Gbps	Free Hanging (In-Line)	2.92mm to 2.92mm	-65 °C	165 °C	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Blue	2.92 mm
McGill Microwave Systems 7015-0993	Female	Shielded	2.92 mm	Plug Right Angle	Male	Right Angle SMP Jack	12 in	50 Ohms	Free Hanging (In-Line)	26.5 GHz	Free Hanging (In-Line)	SMP to 2.92mm	-65 °C	165 °C	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Blue
McGill Microwave Systems 7015-0994	Female	Shielded	2.92 mm	Plug Right Angle	Male	Right Angle SMP Jack	0.5 ft	50 Ohms	Free Hanging (In-Line)	26.5 GHz	Free Hanging (In-Line)	SMP to 2.92mm	-65 °C	165 °C	405	TFlex			Blue

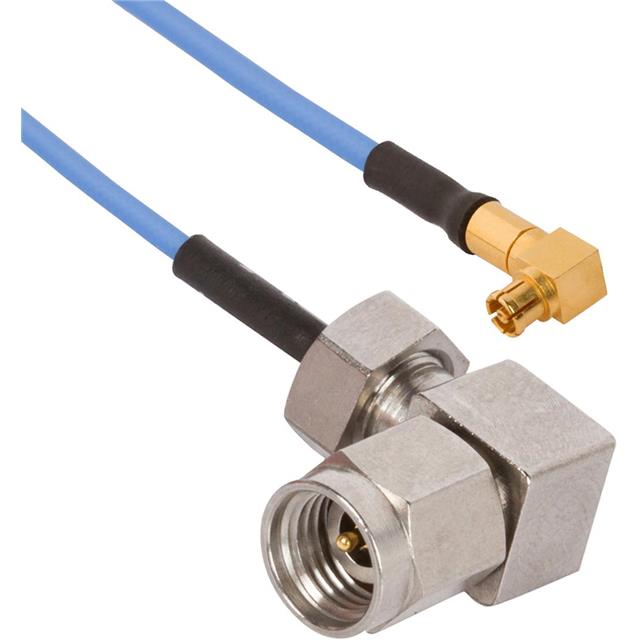

McGill Microwave Systems 7015-0996	Female	Shielded	2.92 mm	Plug Right Angle	Male	Right Angle SMPM Jack	0.5 ft	50 Ohms	Free Hanging (In-Line)	20 Gbps	Free Hanging (In-Line)	SMPM to 2.92mm	-65 °C	165 °C	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Blue
McGill Microwave Systems 7015-0990	Male	Shielded	2.92 mm	Plug Right Angle	Male	Plug Right Angle	0.5 ft	50 Ohms	Free Hanging (In-Line)	40 Gbps	Free Hanging (In-Line)	2.92mm to 2.92mm	-65 °C	165 °C	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Blue	2.92 mm

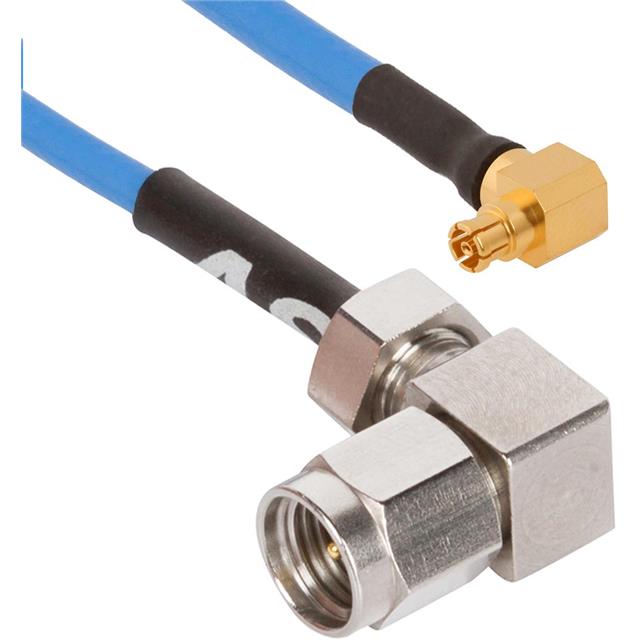

McGill Microwave Systems 7015-0998	Female	Shielded	2.92 mm	Plug Right Angle	Male	Right Angle SMPM Jack	0.5 ft	50 Ohms	Free Hanging (In-Line)	18 GHz	Free Hanging (In-Line)	SMPM to 2.92mm	-65 °C	165 °C	405	TFlex			Blue
McGill Microwave Systems 7015-0997	Female	Shielded	2.92 mm	Plug Right Angle	Male	Right Angle SMPM Jack	12 in	50 Ohms	Free Hanging (In-Line)	20 Gbps	Free Hanging (In-Line)	SMPM to 2.92mm	-65 °C	165 °C	0.047 0.047 "	Flexible Cable	0.047 "	0.047 "	Blue
