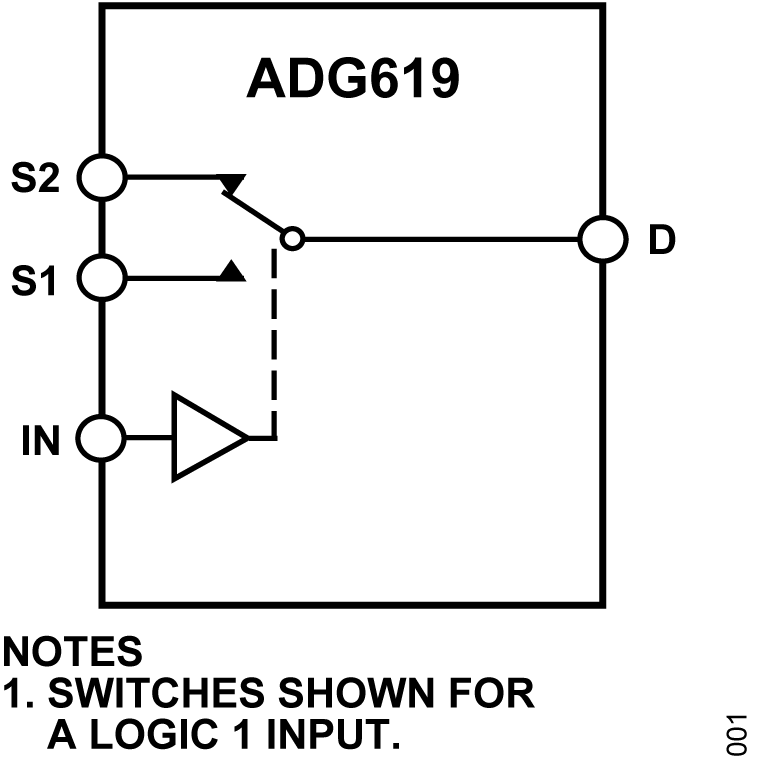

ADG619 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC SWITCH SPDT X 1 6.5OHM 8MSOP

Part	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	Channel-to-Channel Matching (ΔRon)	Package Width	Package Name	Package Length	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Minimum)	Voltage - Supply, Dual (Maximum)	Crosstalk	Multiplexer Inputs	Demultiplexer Outputs	On-State Resistance (Max)	-3db Bandwidth	Switch Circuit Type	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Current - Leakage (Max)	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Switch Time Toff (Max)	Switch Time Ton (Max)	Charge Injection	Number of Circuits	Package / Case
Analog Devices Inc./Maxim Integrated ADG619BRM-REEL	25 pF	25 pF	700 mOhm	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	2.7 V	-2.7 V	5.5 V	-67 dB	2	1	6.5 Ohm	190 MHz	SPDT	85 °C	-40 °C	Surface Mount	250 pA	5.5 V	2.7 V	75 ns	120 ns	110 pC	1
Analog Devices Inc./Maxim Integrated ADG619BRTZ-REEL7	25 pF	25 pF	700 mOhm		SOT-23-8		2.7 V	-2.7 V	5.5 V	-67 dB	2	1	6.5 Ohm	190 MHz	SPDT	85 °C	-40 °C	Surface Mount	250 pA	5.5 V	2.7 V	75 ns	120 ns	110 pC	1	SOT-23-8
Analog Devices Inc./Maxim Integrated ADG619BRTZ-REEL	25 pF	25 pF	700 mOhm		SOT-23-8		2.7 V	-2.7 V	5.5 V	-67 dB	2	1	6.5 Ohm	190 MHz	SPDT	85 °C	-40 °C	Surface Mount	250 pA	5.5 V	2.7 V	75 ns	120 ns	110 pC	1	SOT-23-8
Analog Devices Inc./Maxim Integrated ADG619BRMZ-REEL7	25 pF	25 pF	700 mOhm	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	2.7 V	-2.7 V	5.5 V	-67 dB	2	1	6.5 Ohm	190 MHz	SPDT	85 °C	-40 °C	Surface Mount	250 pA	5.5 V	2.7 V	75 ns	120 ns	110 pC	1
Analog Devices Inc./Maxim Integrated ADG619BRM	25 pF	25 pF	700 mOhm	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	2.7 V	-2.7 V	5.5 V	-67 dB	2	1	6.5 Ohm	190 MHz	SPDT	85 °C	-40 °C	Surface Mount	250 pA	5.5 V	2.7 V	75 ns	120 ns	110 pC	1
Analog Devices Inc./Maxim Integrated ADG619BRMZ	25 pF	25 pF	700 mOhm	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	2.7 V	-2.7 V	5.5 V	-67 dB	2	1	6.5 Ohm	190 MHz	SPDT	85 °C	-40 °C	Surface Mount	250 pA	5.5 V	2.7 V	75 ns	120 ns	110 pC	1
Analog Devices Inc./Maxim Integrated ADG619SRJZ-EP-RL7	25 pF	25 pF	700 mOhm		SOT-23-8		2.7 V	-2.7 V	5.5 V	-67 dB	2	1	6.5 Ohm	190 MHz	SPDT	125 °C	-55 °C	Surface Mount	250 pA	5.5 V	2.7 V	75 ns	120 ns	110 pC	1	SOT-23-8
Analog Devices Inc./Maxim Integrated ADG619BRTZ-500RL7	25 pF	25 pF	700 mOhm		SOT-23-8		2.7 V	-2.7 V	5.5 V	-67 dB	2	1	6.5 Ohm	190 MHz	SPDT	85 °C	-40 °C	Surface Mount	250 pA	5.5 V	2.7 V	75 ns	120 ns	110 pC	1	SOT-23-8
Analog Devices Inc./Maxim Integrated ADG619BRMZ-REEL	25 pF	25 pF	700 mOhm	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	2.7 V	-2.7 V	5.5 V	-67 dB	2	1	6.5 Ohm	190 MHz	SPDT	85 °C	-40 °C	Surface Mount	250 pA	5.5 V	2.7 V	75 ns	120 ns	110 pC	1
