ADF4150 Series

Fractional-N/Integer-N PLL Synthesizer

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Fractional-N/Integer-N PLL Synthesizer

Part	Frequency - Max	Input	Mounting Type	Multiplier	Divider	Package / Case	Output	Differential Input	Differential Output	Type	Package Width	Package Name	Package Length	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	PLL	Input Ratio	Output Ratio	Operating Temperature (Min)	Operating Temperature (Max)	Number of Circuits
Analog Devices Inc./Maxim Integrated ADF4150BCPZ	4.4 GHz	CMOS TTL	Surface Mount	No	Yes	24-WFQFN Exposed Pad CSP	Clock	Yes	Yes	Fractional N Frequency Synthesizer (RF) Integer N	4 mm	24-LFCSP	4 mm	3.6 V	3 V	Yes	2	2	-40 °C	85 °C	1
Analog Devices Inc./Maxim Integrated ADF4150BCPZ-RL7	4.4 GHz	CMOS TTL	Surface Mount	No	Yes	24-WFQFN Exposed Pad CSP	Clock	Yes	Yes	Fractional N Frequency Synthesizer (RF) Integer N	4 mm	24-LFCSP	4 mm	3.6 V	3 V	Yes	2	2	-40 °C	85 °C	1

Catalog

Fractional-N/Integer-N PLL Synthesizer

Description

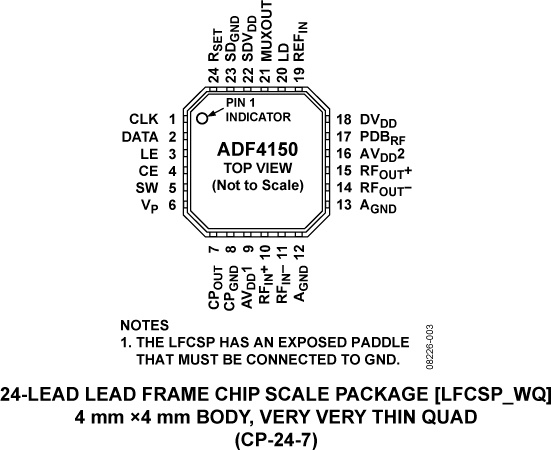

The ADF4150 allows implementation of fractional-N or integer-N phase-locked loop (PLL) frequency synthesizers if used with an external voltage-controlled oscillator (VCO), loop filter, and external reference frequency.The ADF4150 is for use with external VCO parts and is software compatible with theADF4350. The VCO frequency can be divided by 1/2/4/8/16 to allow the user to generate RF output frequencies as low as 31.25 MHz. For applications that require isolation the RF output stage can be muted. The mute function is both pin and software controllable.Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.The ADF4150 is available in a 4 mm × 4 mm package.ApplicationsWireless infrastructure (W-CDMA, TD-SCDMA, WiMax, GSM, PCS, DCS, DECT)Test equipmentWireless LANs, CATV equipmentClock generation
