AD-05PMMS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

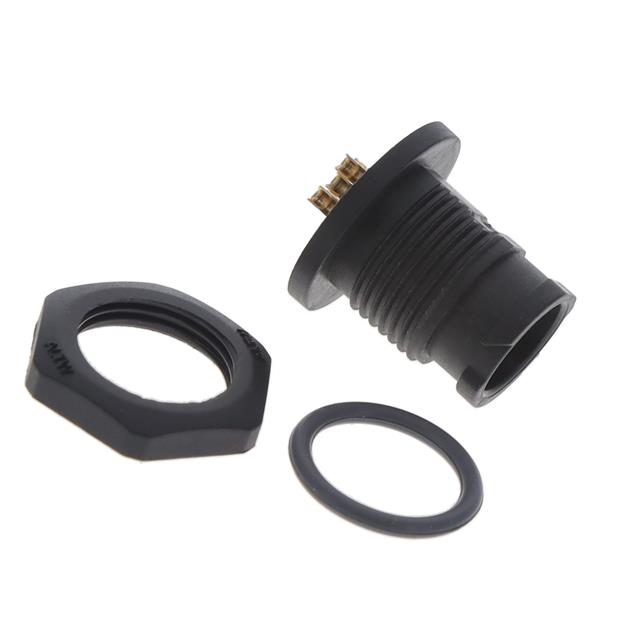

X-LOK, MINI SIZE, PLASTIC, 5A, 05 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IPX8
| Part | Shell Material | Shell Size - Insert | Fastening Type | Primary Material | Mounting Feature | Mounting Type | Color | Number of Positions | Position Types | Ingress Protection IP Rating | Ingress Protection Description | Current Rating | Termination | Contact Finish - Mating | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Material Flammability Rating | Orientation | Voltage Rating | Insert Material | Connector Type | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Glass Filled Nylon Polyamide (PA) | A | Push-Pull | Plastic | Bulkhead Front Side Nut | Panel Mount | Black | 5 | Data | IP68 | Dust Tight Waterproof | 5 A | Solder Cup | Gold | Copper Alloy | -40 °C | 105 °C | UL94 V-0 | Keyed | 300 VAC/DC | Glass Filled Nylon PA Polyamide | Male Pins Receptacle | Unshielded |
