PCIB Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
RECT PWR CONN, RCPT, 26POS, THT ROHS COMPLIANT: YES
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Material Flammability Rating | Number of Positions Loaded | Number of Positions | Connector Type | Contact Finish | Color | Connector Style | Power Contacts (Typical) | Signal Contacts (Typical) | Mounting Type | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Termination | Number of Rows | Connector Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 125 °C | -55 °C | UL94 V-0 | All | 26 | Female Sockets Receptacle | Gold | Blue | CompactPCI® | 11 | 15 | Through Hole | 0 | Flash | Flash | Solder | ||
 McGill Microwave Systems | 26 | Housing for Female Sockets | Blue | Backplane | Free Hanging (In-Line) | 3 | Receptacle | |||||||||||

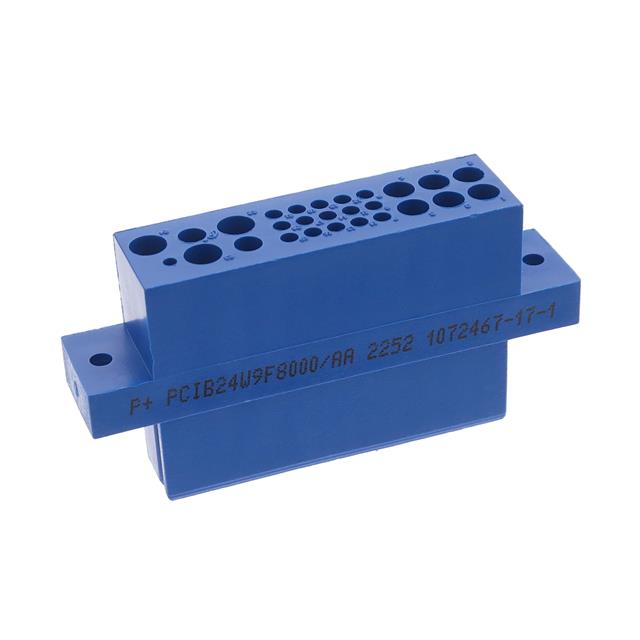

 McGill Microwave Systems | All | 24 pos | Header Male Pins | Gold | Blue | CompactPCI® | 9 | 15 | Through Hole | 0 | Flash | Flash | Press-Fit | 3 | ||||
 McGill Microwave Systems | 24 pos | Housing for Female Sockets | Blue | Power | Panel Mount | Receptacle | ||||||||||||
 McGill Microwave Systems | 24 pos | Housing for Female Sockets | Blue | Backplane | Free Hanging (In-Line) | 3 | Receptacle | |||||||||||
McGill Microwave Systems | All | 24 pos | Female Sockets Receptacle | Gold | Blue | CompactPCI® | 9 | 15 | Through Hole | 0 | Flash | Flash | Press-Fit | 3 |
