24115-BX Series

SOL 12V 17.5OHM CONT 3STUD #8

Catalog

SOL 12V 17.5OHM CONT 3STUD #8

Part	Form A Count	Contact Form	Coil Voltage	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Switching Voltage DC (Max)	Termination Style	Coil Type	Contact Material	Contact Rating (Current)	Coil Current	Relay Type
LITTELFUSE 24115-BX	1	SPST-NO	12 VAC	Chassis Mount	-40 °C	85 °C	27 VDC	Stud	Non Latching	Silver (Ag)	85 A	685.7 mA	General Purpose

Catalog

SOL 12V 17.5OHM CONT 3STUD #8

Description

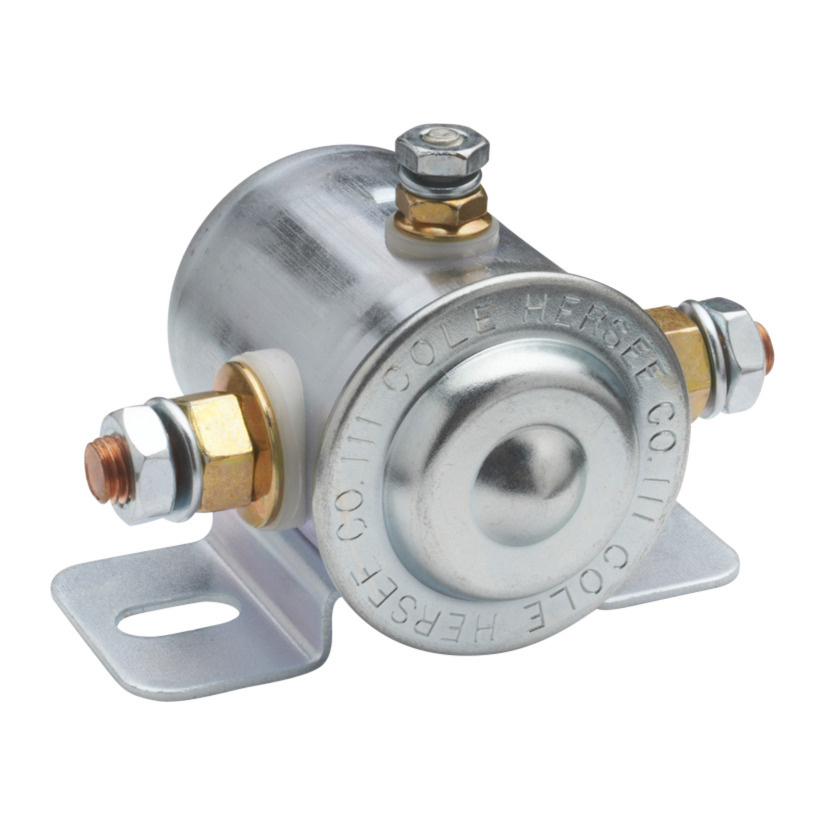

The 36 V 85 A Continuous-Duty SPST Series Insulated Solenoid Relay (24115-BX) is designed with plated steel housing, single-pole, single-throw (SPST) circuitry, and normally open contacts. This individually boxed model features a flat bracket. The insulated, three-stud solenoid relay has a 12 V coil and a coil impedance of 17.5 ohms. In addition, this model has a 125 A make/break rating.
